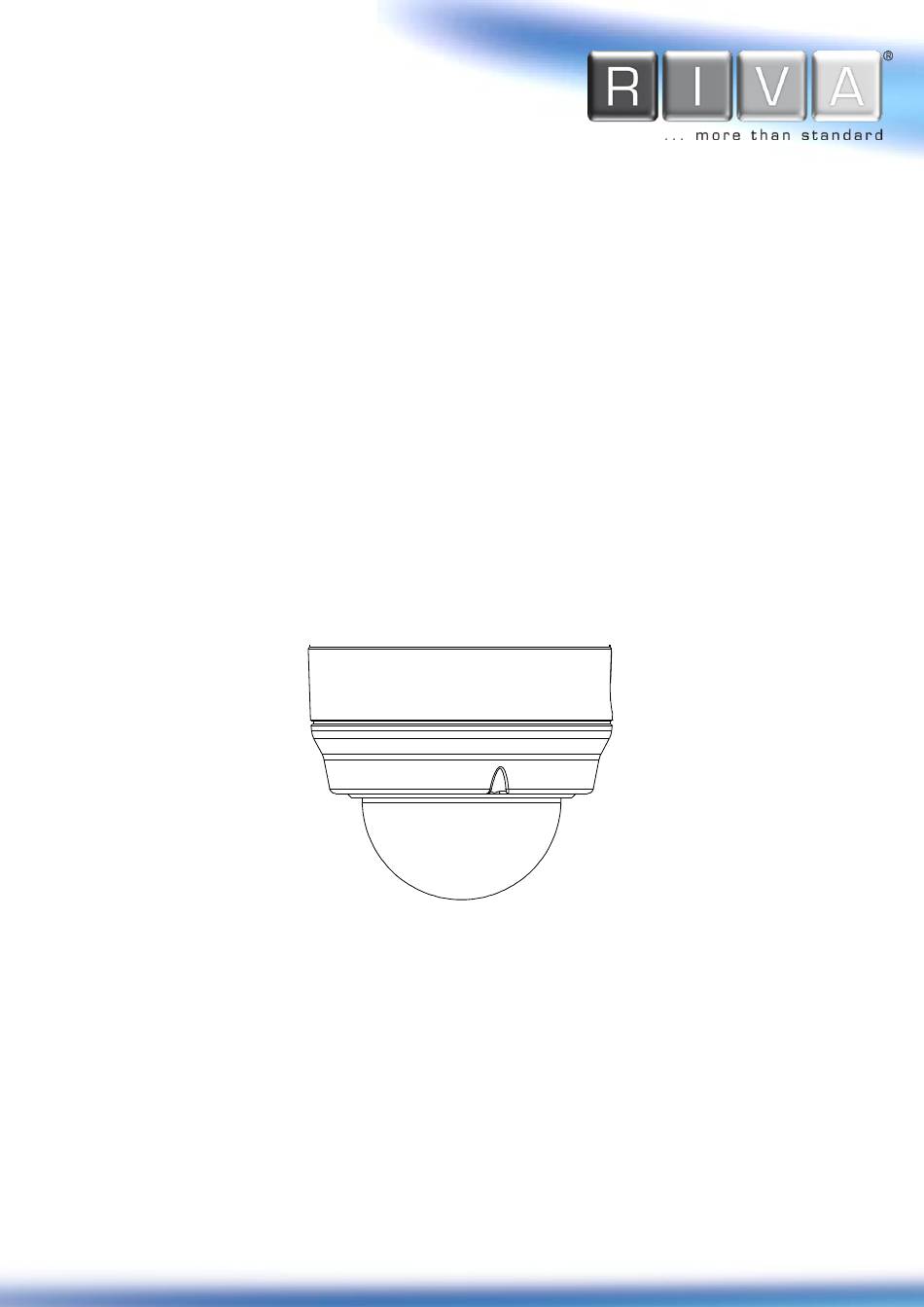

- Page 1 RC3502SV-7311 Installation Guide www.rivatech.de Specification subject to change without notice...
-
Page 2: Precautions & Notes
RC Series RC3502SV-7311 Installation Guide Precautions & Notes Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
RC Series RC3502SV-7311 Installation Guide Table of Contents Precautions & Notes ....................2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.1.1. Installation without bracket ..................7 4.1.2. -
Page 4: Features
RC Series RC3502SV-7311 Installation Guide 1. FEATURES Camera 1/2.8” 1080p CMOS Image Sensor True Day / Night DC Auto Iris Lens Remote Zoom/Focus Control(One Click AF) Weather proof (IP66) Vandal proof (IK10) Video ... -
Page 5: Package Contents
RC Series RC3502SV-7311 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The packaging contains: ETHERNET WIRE Camera DC Power Adaptor & Plugs DC Power Jack Cable Terminal Block RESET ETHERNET MICRO DC12V... -
Page 6: Part Names
RC Series RC3502SV-7311 Installation Guide 3. PART NAMES ③ RESET ② ETHERNET ④ MICRO ① DC12V DC12V * Models herein and their appearance are subject to change without any prior notice. ① Terminal connector Connector for cable connection of digital input/output, audio input/output, and DC12V power. -
Page 7: Installation
RC Series RC3502SV-7311 Installation Guide 4. INSTALLATION 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template tallation template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separat ely. - Page 8 RC Series RC3502SV-7311 Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill the three holes in the correct positions based on the template paper, and insert the plastic anchors into the holes (In case you need to connect the cables...
-
Page 9: Compatible Accessories
RC Series RC3502SV-7311 Installation Guide The internal heater does not work when the device is powered via PoE. Caution The camera may fall off the ceiling even after the proper installation and mounting. To prevent any accident, make sure the ceiling is firm and stable enough to support the camera. -
Page 10: Adjusting Angle Of The Camera
ETHERNET ETHERNET DC12V RC Series RC3502SV-7311 Installation Guide DC12V RESET 4.2. Adjusting angle of the camera ETHERNET Adjust the angle of the camera by manually moving the corresponding parts following the directions MICRO DC12V below. Gimbal Bracket 1. Perform the panning adjustment by turning the gimbal bracket horizontally either clockwise or counter- clockwise. -
Page 11: Adjusting Zoom And Focus
RC Series RC3502SV-7311 Installation Guide 4.3. Adjusting zoom and focus *To be able to adjust zoom and focus, it is necessary to connect the device to a network. Please refer to 6.CONFIGURATION for the detailed method of network connection. Once the device is on the network and the webpage is open, go to Setup> Video & Audio >... -
Page 12: Connections
RC Series RC3502SV-7311 Installation Guide 5. CONNECTIONS RESET ⑤ ETHERNET MICRO DC12V Reserved DO (N.O) DI AUDIO DC12V − + X X C 1 C 1 O ① Alarm (DO) connection Only the relay type is supported. - Page 13 RC Series RC3502SV-7311 Installation Guide Internal +3.3V Internal Output of Output of Sensor Sensor Voltage Type Relay Type ③ Audio Connection The camera provides a mono audio input and output. Due to low audio output power, an N / A...
- Page 14 RC Series RC3502SV-7311 Installation Guide ④ Power Connection The camera can be powered from either 12VDC or PoE. The connection via the terminal connector is for DC12V power. To operate your camera using 12VDC, make sure that the polarity is correct before connecting the power cable. Incorrect connection may cause a damage to the device.
-
Page 15: Configuration
RC Series RC3502SV-7311 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 16: Custom Ip Environment
RC Series RC3502SV-7311 Installation Guide Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 17: View Video On Web Page
RC Series RC3502SV-7311 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 18: View Video Using Ipadmin Tool
RC Series RC3502SV-7311 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 19: Reboot
RC Series RC3502SV-7311 Installation Guide 6.3. Reboot Perform the following procedures to reset your device. On the camera Press the reset button for 2 seconds when the device is powered on. Wait for the system to reboot. Do not press the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. -
Page 20: Safe Mode
RC Series RC3502SV-7311 Installation Guide 6.5. Safe Mode There may be certain occasions that your camera repeatedly fails to boot. Then, your camera may enter safe mode to be recovered from the occasions. What may have caused Safe Mode? Here below are the main typical causes. -
Page 21: Appendix (A): Specifications
RC Series RC3502SV-7311 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor Sony STARVIS Exmor 1/2.8” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 0.03 Lux (DSS On) ELECTRICAL Illumination B/W : 0.006 Lux (DSS On) -
Page 22: Electrical Characteristics
RC Series RC3502SV-7311 Installation Guide ※ card not included (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption 8.2 W @ DC 12V (Heater On) MIC in, Max2Vp-p, 20K Ω (90dB) Audio Input Line out, 60mW, 16 Ω... -
Page 23: Appendix (B): Power Over Ethernet
RC Series RC3502SV-7311 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 24: Appendix (C): Dimensions
RC Series RC3502SV-7311 Installation Guide APPENDIX (C): DIMENSIONS Ø155 (Unit: mm) 04-2017-A www.rivatech.de... -
Page 25: Appendix (D): Hexadecimal-Decimal Conversion Table
RC Series RC3502SV-7311 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 04-2017-A www.rivatech.de... -
Page 26: Revision History
RC Series RC3502SV-7311 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 04-2017-A 04/05/2017 First release version 04-2017-A www.rivatech.de...
