INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”...

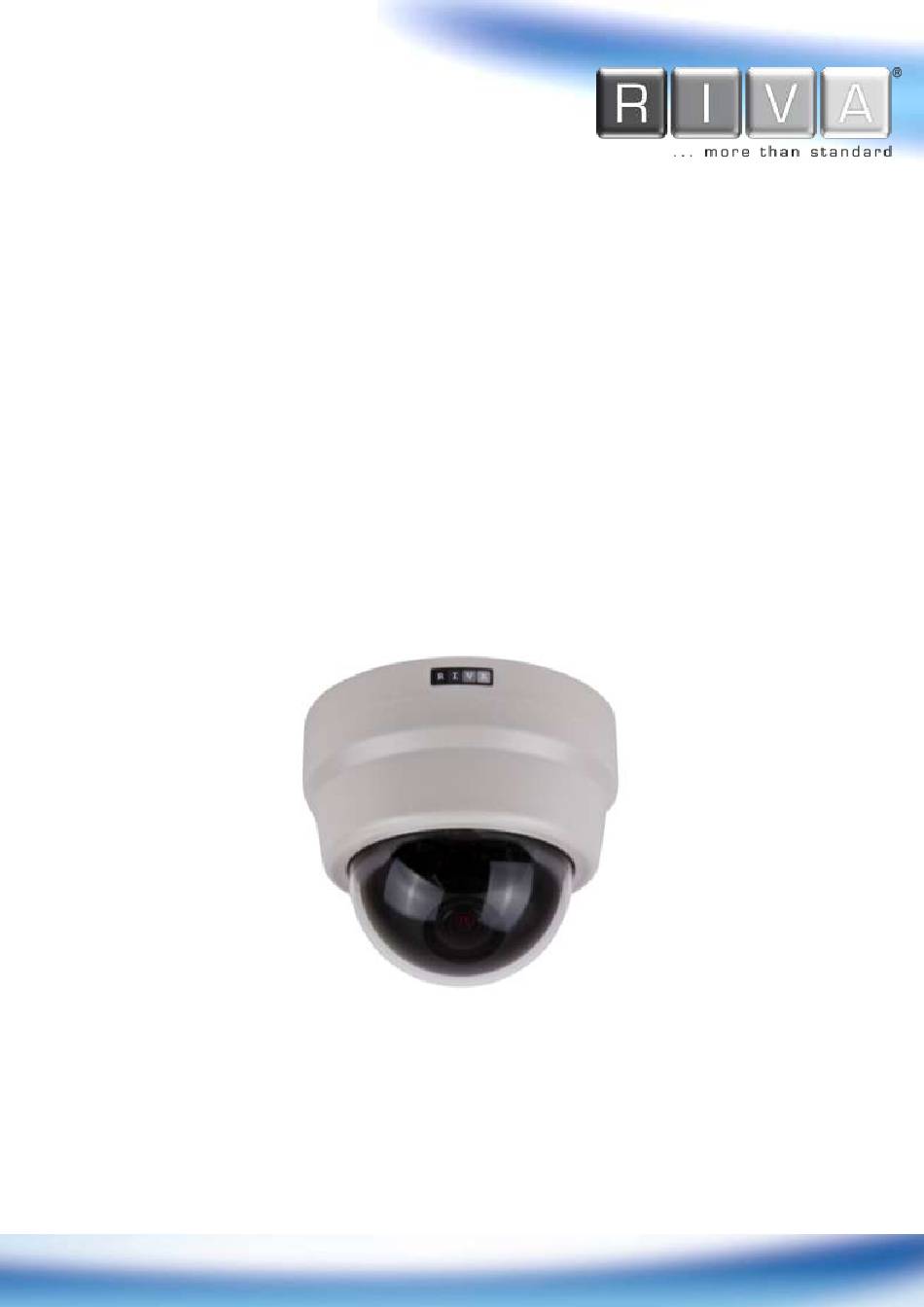

1.FEATURES Camera Full HD indoor dome IP camera (Vandal proof) High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Improved color rolling suppression Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.)* ...
2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack cable, 9-pin and 2-pin terminal blocks, video-out cable, screws, anchors, hex wrench driver, and clamping cores. Unpack carefully and handle the equipment with care. Camera DC power adaptor DC Jack Cable 9-pin and 2-pin terminal block Video out cable...
3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. 1. Reset button The reset button can be used for restarting the device or resetting back to Factory 6.3.
Page 7
5.1. Connector input/output. Refer to for more details. Video out is used only for installation and works for 3 minutes when PAL/NTSC button is pushed. 4. LAN connector This is a RJ45 LAN connector for 10/100 Base-T Ethernet. 5. Micro SD card slot It is a memory card slot for external storage.
4. INSTALLATION Place the installation template (paper) that included package on the desired installation surface. Drill three holes correct positions based on the template paper, and insert anchor blocks into the holes. Place the camera body and match three alignment holes with three anchor blocks.
4.1. Installation Template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de...
4.2. Setting the Lens Position Instruction below describes how to set the lens positions and manually adjust zoom and focus. 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its reinforced body, upper lens shell, or horizontal platform in the following directions. A.
Reset 5. CONNECTIONS N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD 1. Audio input/output N / A N / A The camera has a mono audio input and a mono audio output. Due to low audio output power, an amplified speaker is recommended for enhanced sound (Do not connect a N / A N / A...
Page 12
2. Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 1.5V Do not exceed the maximum input voltage or relay rate.
Page 13
Do not exceed the maximum relay rating. Caution Internal Device Relay Type 4. Video input/output The camera provides 1 video out. Please note that the analog video signal is only 3 minutes present after pushing the PAL/NTSC button and go back automatically to none video output mode (only installation process).
Page 14
Green Orange When the device is powered-on, both LEDs blink for a second. Then the orange LED turns on initially for a while, and eventually green LED turns on when the device is ready. 6. 12V DC Power A 12 DC power connector is required for this device. Black www.rivatech.de...
6. CONF IGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device. 3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage.
Page 17
To modify the device’s default IP address for customized network area; 1. Find the device from the IPAdminTool’s list and highlight the device’s name. 2. Right-click the mouse and select “IP Address”; IP Setup window appears. Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes...
6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. root / pass The default username and password is The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version.
Page 19
3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. Please If “...
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2.
Microsoft® Internet Explorer to have the complete configuration privileges. 6.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 6.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized.
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable.
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 00 0 25 37 4A 74 6F 111 94 148...
