Sharp UJ-GC20E Operation Manual page 12

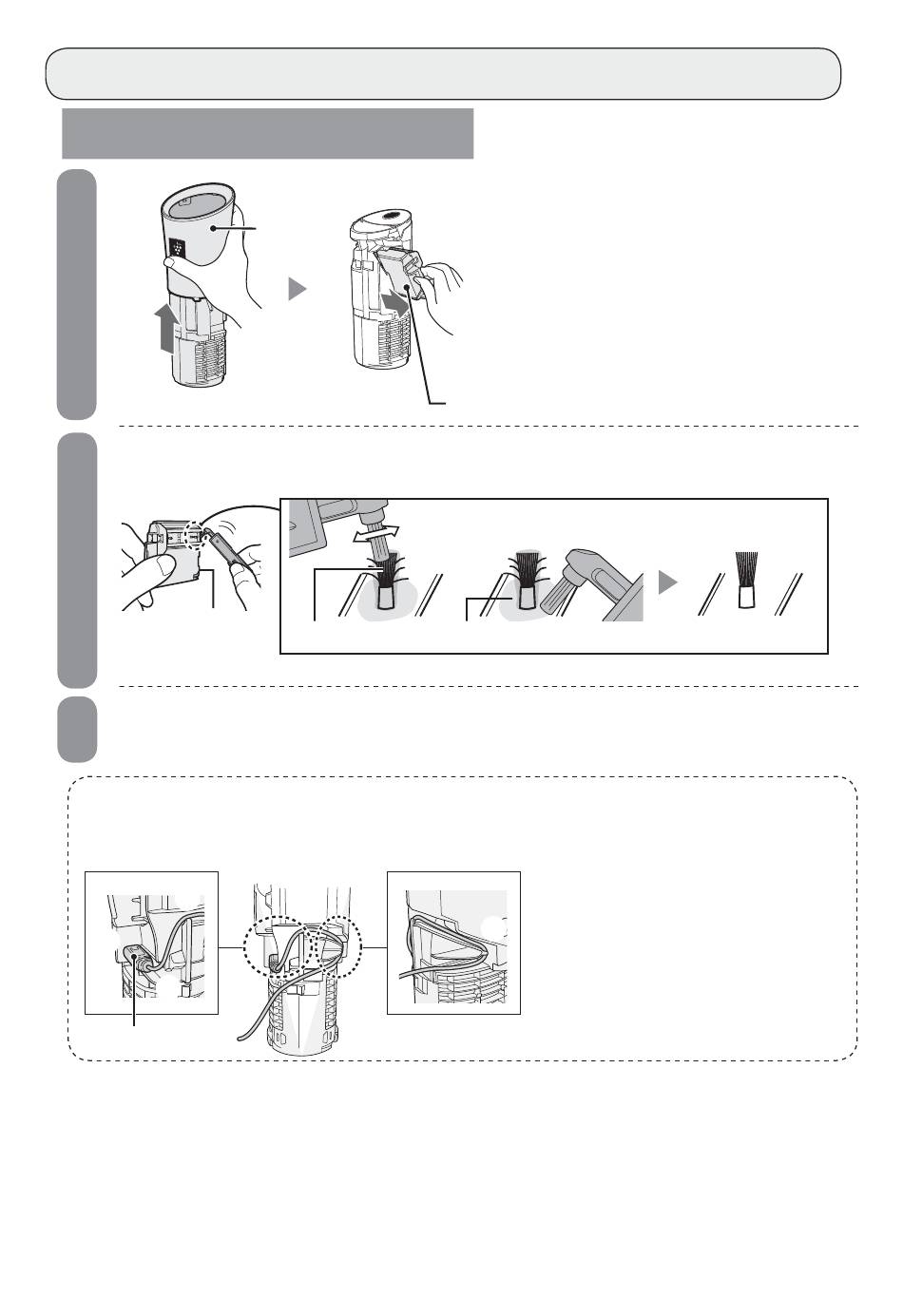

Plasmacluster Ion Generating Unit (Electrode section)
Every 6 months or more often if necessary
1
Remove dusts from the electrodes by the unit cleaning brush (see E-4).
2
Connection
Terminal
3
Reattach the unit holder, unit cleaning brush, main unit cover and fi lter
cover.
Please wire the power cord correctly.
Incorrect wiring could lead to damage to the power cord and may cause
fi re/electric shock.
③
①
②
Micro USB Plug
• Do not clean with anything other than the unit cleaning brush. (Doing so could lead to
failures in the unit)
• A bent electrode could be cut off and dropped during the cleaning process, but it will
not change the performance.
• Do not touch the electrode directly. (Doing so could lead to pain/itching)
• Do not deform the electrodes. (Doing so could lead to failures in the unit)
• Do not touch the connection terminal. (Doing so could lead to failures in the unit)
Main Unit
Cover
Electrode
How to remove the unit holder
1 Remove the fi lter cover. (see E-8)
2 Pull up the main unit cover.
3 Pull out the unit holder.
Unit Holder
Before Cleaning
Around the base
Insert the Micro USB Plug for connection
with main unit to the power supply port 1.
Put the power cord on 2 and 3.
④
Insert the power cord into the claw of 4
When attaching the main unit cover,
put the power cord through the hole
on the main unit cover.
E-9
After Cleaning
