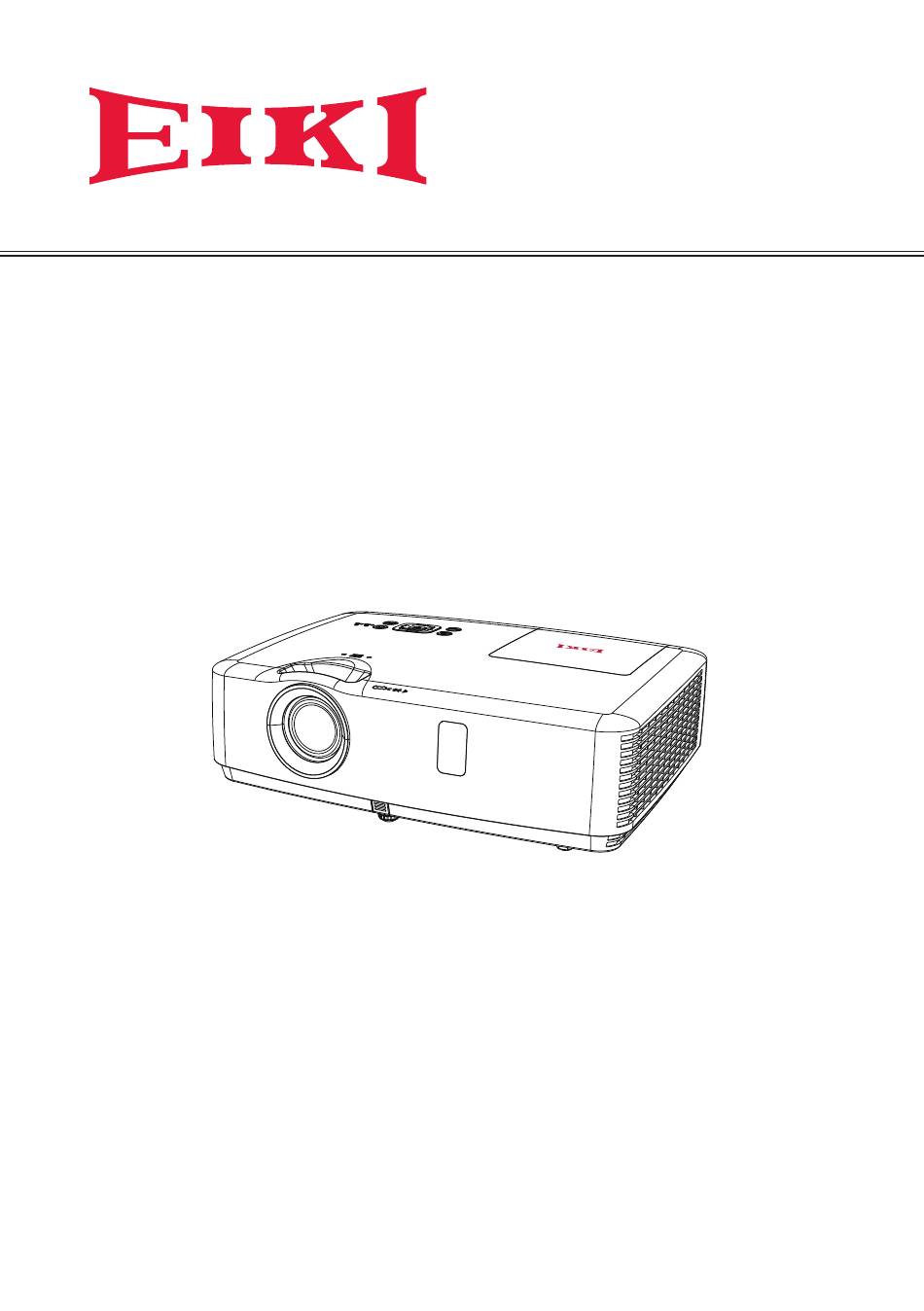

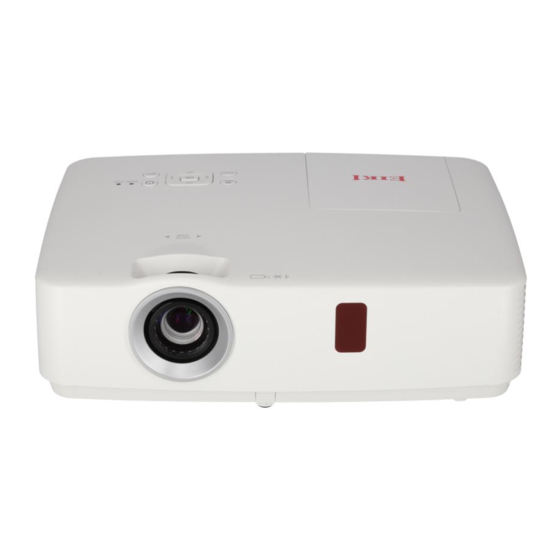

OWNER'S MANUAL
EK-103X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-103X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eiki EK-103X

Summary of Contents for Eiki EK-103X

  • Page 1 OWNER'S MANUAL EK-103X...

  • Page 2: Features And Design

    Features and Design This Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 10.7 million colors, and matrix liquid crystal display (LCD) technology. Simple Computer System Setting Security Function The Security function helps you to ensure The projector has the Multi-scan system to...

  • Page 3: Table Of Contents

    Contents Features and Design ............. 2 Color adjust ..............30 Contents ................ 3 Image Mode ............30 Safety Instructions ............4 Color adjust (Computer)........31 Safety Guide ..............5 Color adjust (Video,S-video,Component) ....32 Air circulation ............6 Setting ..............33 Moving the projector ..........6 On start ..............33 Installing the projector properly .........

  • Page 4: Safety Instructions

    Safety Instructions Please read this manual completely before installing Safety precautions and operating the projector. The projector provides many convenient features Caution: ● The projector must be grounded. and functions. Proper operation may enable you to ● Do not expose the projector to raindrops fully utilize the features and keep it in good condition.

  • Page 5: Safety Guide

    Safety Guide All the safety and operating instructions should be Do not install the projector near the ventilation duct of read before the product is operated. air-conditioning equipment. Read all of the instructions given here and retain them This projector should be operated only from the type for later use.

  • Page 6: Air Circulation

    Safety Guide Air circulation – Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage Vents in the cabinet are provided for ventilation. to the projector. For more information about To ensure reliable operation of the product and transporting the projector by courier or any to protect it from overheating, these openings...

  • Page 7: Compliance

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : EK-100 series Trade Name : EIKI Responsible party : EIKI International,Inc. Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132 Telephone No. : 800-242-3454 (949-457-0200) AC Power Cord Requirement The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

  • Page 8: Accessories

    KEYSTONE IMAGE FREEZE PATTERN KEYSTONE IMAGE FREEZE PATTERN SCREEN LAMP MUTE INFO. SCREEN LAMP MUTE INFO. BLANK BLANK D.ZOOM VOLUME TIMER D.ZOOM VOLUME TIMER Accessories AC Power cord VGA cable Remote control with batteries Quick start guide (AAA or LR3) INPUT VIDEO HDMI...

  • Page 9: Part Names And Functions

    Part names and functions Front ① Remote control receiver ④ ③ ② ① ② Lamp cover ③ Focus adjust ring ④ Top control panel and indicator ⑤ Filter ⑥ Projector Lens ⑤ ⑥ ⑦ Zoom adjust ring Back ⑧ AC cord connector ⑨...

  • Page 10: Terminals

    Part names and functions Terminals ① ② ③ ④ ⑤ ⑥ ④ HDMI ① VGA IN/YPbPr/S-VIDEO IN This is the terminal to input HDMI signals. This is the terminal to input RGB, YPbPr or S-video signals. ⑤ RS-232C When using RS232 to control the projector, ②...

  • Page 11: Top Control And Indicators

    Part names and functions Top control and Indicators ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① MENU Open or close the screen menu. ⑤ POWER indicator(Refer to Page 54) - It lights red when the projector is in stand- ②...

  • Page 12: Remote Control

    Part names and functions Remote control ② ① ⑧  button INPUT - Select an item or adjust the value in ④ the screen menu. VIDEO HDMI - Select the image display area in ③ ⑤ digital zoom + mode. AUTO MENU ⑥...

  • Page 13: Install Remote Control Batteries

    Part names and functions Install remote control batteries ②Install new batteries. ① Open the battery ③ Put the cover cover. back. Two AAA batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

  • Page 14: Installation

    Installation Positioning the projector  Note: ● The brightness in a room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image. ● All measurements are approximate and may vary from the actual sizes. Screen size 30"...

  • Page 15: Connecting To Computer (Digital And Analog Rgb)

    Installation Connecting to computer (Digital and analog RGB) Cables used for connection: ● VGA cable ● Serial cable(crossover type)* ● HDMI cable* (*=Cables are not supplied with the projector) HDMI RS232 output output input output Serial HDMI cable cable cable cable HDMI RS232...

  • Page 16: Connecting To Video Equipment (Video, S-Video)

    Installation Connecting to video equipment (Video, S-Video) Cables used for connection: ● S-video cable** ● Component conversion cable** ● Video cable* (*=Cables are not supplied with the projector) (**=Dedicated cable is required and can be ordered through your dealer) S-video Component Video output...

  • Page 17: Connecting The Ac Power Cord

    Installation Connecting the AC power cord This projector uses nominal input voltages of 100–240V AC and it automatically applies to different input voltages. It is designed to work with a single-phase power system having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 18: Basic Operation

    Basic operation Turn on the projector 1. Complete peripheral connections (with a computer, video,etc.) before turning on the projector. 2. Connect the projector’s AC power cord into the AC outlet. The POWER indicator turns red. 3. Press the POWER button on the top control or on the remote control.

  • Page 19: Turn Off The Projector

    Basic operation Turn off the projector 1. Press the POWER button on the top control or on the remote control, and "Power off?" appears on the screen. Power off ? 2. Then, press the POWER button again in 4 seconds. The POWER indicator starts to flash red, and the cooling fans keep running (You can select the fan noise and running speed).

  • Page 20: Adjust Zoom And Focus

    Basic operation Adjust zoom and focus ZOOM ring FOCUS ring Rotate the ZOOM ring to zoom in or zoom out (Back) (Front) the image. Rotate the FOCUS ring to adjust the focus of the image. Auto setup function This function is available just by pressing the AUTO button on the remote control or top control.

  • Page 21: Remote Control Operation

    Basic operation Remote control operation Using the remote control for some frequently Remote control used operations is advisable. Just pressing one of the buttons enables you to quickly without calling up the screen menu. INPUT VIDEO HDMI AUTO MENU FREEZE button Press FREEZE button on the remote control, video will be paused and the audio is muted.
  • Page 22 Basic operation BLANK button Press BLANK button on the remote control to Blank Image Blank black out the image. To restore to normal, press the BLANK button again or press any other button. The screen changes each time you press the button as follows: Black out →Normal →Black out →Normal ...

  • Page 23: Input Select

    Basic operation Input select Remote control Direct Operation Press VGA, ViIDEO or HDMI on the remote control as input source. INPUT INPUT VIDEO VIDEO HDMI HDMI Menu operation AUTO MENU 1 Press INPUT button on the top control or remote controll to display the input select menu.

  • Page 24: How To Operate The Screen Menu

    Basic operation How to operate the screen menu Top control The projector can be adjusted or set via the  button on-screen menu. Each main menu can be divided into several levels of submenus, and MENU subme nus are also divided into several levels button of submenus.

  • Page 25: Menu Bar

    Basic operation Menu bar Main menu Sub menu Display ① Auto PC adj. Fine sync ② H Position V Position ③ H. Size Aspect Normal ④ Project way Front Menu position Center ⑤ Background display Blue System 1024 x 768, 60Hz ①...

  • Page 26: Display

    Display Auto PC adj. Auto PC Adjustment function is provided to automatically adjust Fine sync, Horizontal, Vertical and H.Size to conform to your computer. Menu operation Auto PC adj. Menu Auto PC adj. Display 1. Press MENU button on the remote control or top control to display screen menu.

  • Page 27: Aspect

    Display Aspect Aspect menu You can set a screen size to fit the image while Display maintaining the aspect ratio of the input signal. Auto PC adj. 1. Press  to select "Aspect" and then Fine sync press the OK button. H Position 2.

  • Page 28: Menu Position

    Display Menu Position Menu position This function is used to change the position of screen menu. Display 1 Press MENU button on the remote control Auto PC adj. to display screen menu. Press  button to Fine sync select "Display", then press the OK button. H Position V Position 2 Press...

  • Page 29: System

    Display System Computer system select The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. System menu One of the following messages may appear: When the projector cannot recognize...

  • Page 30: Color Adjust

    Color adjust Color adjust menu is used to set the image mode and adjust the image. INPUT 1 Press MENU button on the remote control or VIDEO HDMI top control to display screen menu. Press  button to select "Color adjust", then AUTO MENU press the OK button.

  • Page 31: Color Adjust (Computer)

    Color adjust Color adjust (Computer) 1 Press MENU button on the remote control or Color adjust (Computer) top control to display screen menu. Press  button to select "Color adjust", then Color adjust press the OK button. Image mode Standard 2 Press...

  • Page 32: Color Adjust (Video,S-Video,Component)

    Color adjust Color adjust (Video,S-video,Component) 1 Press MENU button on the remote control or Color adjust (Video,S-video, Component) top control to display screen menu. Press  button to select "Color adjust", then Color adjust press the OK button. Image mode Standard 2 Press...

  • Page 33: Setting

    Setting The projector has "Setting" menu that allows you to set the other various functions described as follows. 1 Press MENU button on the remote control or Setting menu top control to display screen menu. Press Setting  button to select "Setting", then press On start the OK button.

  • Page 34: High Land

    Setting High land High land Enable to control the fan through the Setting menu. Setting You can select the running speed of the fan On start according to the altitude of the location where Standby mode the projector is installed. High land Lamp control Cooling fast...

  • Page 35: Closed Caption

    Setting Closed Caption Allows the subtitle to be displayed for the Closed Caption audio contents or other information. If the input Setting source contains closed caption, you can enable On start this function and change the channel. Press Standby mode ...

  • Page 36: Hdmi Setup

    Setting HDMI setup When the external equipment is connected to "HDMI" terminal, if the image is not projected properly, please select the settings from the HDMI Setup menu. 1 Press the MENU button to display the screen Setting menu. Press  button to select the On start "Setting"...

  • Page 37: Expand

    Expand The projector has Expand menu that allows you to set the other various expand functions described as follows. 1 Press MENU button on the remote control to display screen menu. Press  button to select "Expand", then press the OK button. 2 Press ...

  • Page 38: Keystone

    Expand Keystone Keystone menu This function is used to store or reset the keystone correction when the AC power cord is Expend unplugged. Keystone 1 Press MENU button on the remote control Keystone Store to display screen menu. Press  button V Keystone to select "Expand", then press the OK button.

  • Page 39: Logo

    Expand Logo This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock and Logo PIN code change functions. Logo Select Logo This function decides on the starting-up display from following options. Expend Default ..Show the factory-set logo. Language User..Show the image captured by user.

  • Page 40: Security

    Expand Security Security This function allows you to use the PIN code Expend lock and PIN code change functions to set the Language security for the projector operation. Auto setup Keystone PIN code lock Logo Security This function prevents the projector from Power management being operated by unauthorized persons Filter counter...

  • Page 41: Power Management

    Expand Power management Power management For reducing power consumption as well as Expend maintaining the lamp life, the Power management function turns off the projection lamp when the Language projector is not operated for a certain period. Select Auto setup one of the following options: Keystone Logo...

  • Page 42: Test Pattern

    Expand Test Pattern This function is used to set the internal test Test Pattern signal: Gray scale 1, Gray scale 2, Gray scale Expend 3, Gray scale 4, Color bar, Red, Green, Blue, Language Cross hatch, White, Black and Raster gray. Auto setup Keystone When you get into the Test Pattern mode,...

  • Page 43: Information

    Information The information menu is used to the detect signal of projected image and running state. Menu operation Press MENU button on the remote control or info. menu top control to display the screen menu. Press  to select Info., the information menu will Info.

  • Page 44: Maintenance And Cleaning

    Maintenance and cleaning WARNING indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator to take proper maintenance. The projector is shut down and the WARNING indicator is flashing red. WARNING indicator When the temperature inside the projector exceeds the normal temperature, the projector...

  • Page 45: Cleaning The Filter

    Maintenance and cleaning Cleaning the filter The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. Should the air filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in a buildup of internal heat and adversely affects the life of the projector.

  • Page 46: Clean The Projector Lens

    Maintenance and cleaning Clean the projector lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 47: Replace The Lamp

    Maintenance and cleaning Replace the lamp When the projection lamp of the projector Lamp replacement icon reaches its end of life, the Lamp replacement icon appears on the screen. Replace the lamp Lamp replacement with a new one of the same type promptly. The timing when the lamp replacement icon appears is depending on the lamp mode.

  • Page 48: Order Replacement Lamp

    Maintenance and cleaning Order Replacement lamp Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Replacement Lamp Model No.: 23040052 LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

  • Page 49: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. - Make sure you have properly connected the projector to peripheral equipment. - Make sure all equipment is connected to the AC outlet and the power is turned on. - If the projector does not project an image when it is connected to a PC, restart the PC.
  • Page 50 Appendix The color is abnormal - Check the input signal, color system, video system or computer system mode. - Make sure that Blackboard is not selected in Image Mode menu. Auto PC adj. function does not - Check the Input signal. Auto PC adj. function can not work when work.

  • Page 51: Menu Tree

    Appendix Menu Tree Main menu Sub menu Setting Note Auto PC adj. Fine sync 0 to 31 H Position -5 to +5 V Position -5 to +5 In different signal, H.Size -15 to +15 H.Size range will different Normal Wide Aspect Full Advanced (PC input only)
  • Page 52 Appendix Main menu Sub menu Setting Note Contrast 0-63 Brightness 0-63 Color temp. High/Mid/Low 0-63 Computer input Green 0-63 Blue 0-63 Sharpness 0-15 Color adjust Contrast 0-63 Brightness 0-63 Color 0-63 Component Input Tint 0-63 S-video Input 0-63 Video Input Green 0-63 Blue...
  • Page 53 Appendix Main menu Sub menu Setting Note Input search On/Off Auto setup Auto PC adj. On/Off Keystone Keystone Store/Reset Logo select Default/User/Off Capture Logo Logo PIN code lock On/Off Logo PIN code change PIN code lock On/Off Security PIN code change Ready Shut down Expand...

  • Page 54: Indicator And Projector State

    Appendix Indicator and projector state Check the indicator to know about the state of projector. Indicator State of projector POWER WARNING (Green/Red/ (Red) Yellow) Your projector is in Off status (without AC power supply). Your projector is in standby status. Press Standby button to turn it on. Your projector is in normal status.

  • Page 55: Compatible Computer Specifications

    Appendix Compatible computer specifications Your projector is designed to accept every analog computer signal below Dot Clock 160MHz and digital computer signal below Dot Clock 150MHz. See table below for details on resolution and relevant frequency.: Signal Frequency Signal Frequency Input Resolution Input...

  • Page 56: Technical Specifications

    Appendix Technical Specifications LCD system 0.63" TFT, active matrix, 3-panel LCD resolution 1024X768 Compatible signals Color standard PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N and PAL60 HDTV signal 480i, 480p, 576i, 576p, 720p, 1080i and 1080p Scanning frequency Horizontal frequency: 15 –100 KHz; Vertical frequency: 48 – 85 Hz Optical elements 30"-300"...

  • Page 57: Configurations Of Terminals

    Appendix Configurations of terminals terminal pin assignments and signal names VGA IN R/Pr/S-C G/Y/S-Y B/Pb/- ----- DDC data HD/SYNC DDC clock Note: The Pin 1, 2 and 3 (Pr, Y, Pb): for YCbCr/YPbPr signal. The Pin 1 and 2 (S-C, S-Y): for S-Video signal. terminal pin assignments and signal names VGA OUT -----...

  • Page 58: Content Of Hazardous Substances And Elements

    Appendix Content of hazardous substances and elements Hazardous substances and elements Name of parts Cr6+ PBDE Optical parts* ○ ○ ○ ○ ○  Electric parts** ○ ○ ○ ○ ○  Cabinet, mechanical parts ○ ○ ○ ○ ○ ...

  • Page 59: Pin Code Memorandum

    Appendix PIN code memorandum Write down the PIN code in the blank below and keep it, If you forgot or lost the number and unable to operate the projector, contact the service center. Factory default PIN code 111* PIN code lock Factory default PIN code 111* Logo PIN code Lock No.
  • Page 60 +420 241-403-095 Fax: +420 241-409-435 E-Mail: info@eiki.cz China South East Asia EIKI (Shanghai) Co., Ltd. EIKI Industrial (M) Sdn Bhd LAKESIDE OASIS MIDDLE RING No. 11, Nouvelle Industrial Park, BUSINESS CENTRE Lorong Teknologi B, Taman Sains Block 1,Room 606, Selangor 1, Kota Damansara PJU5,...
