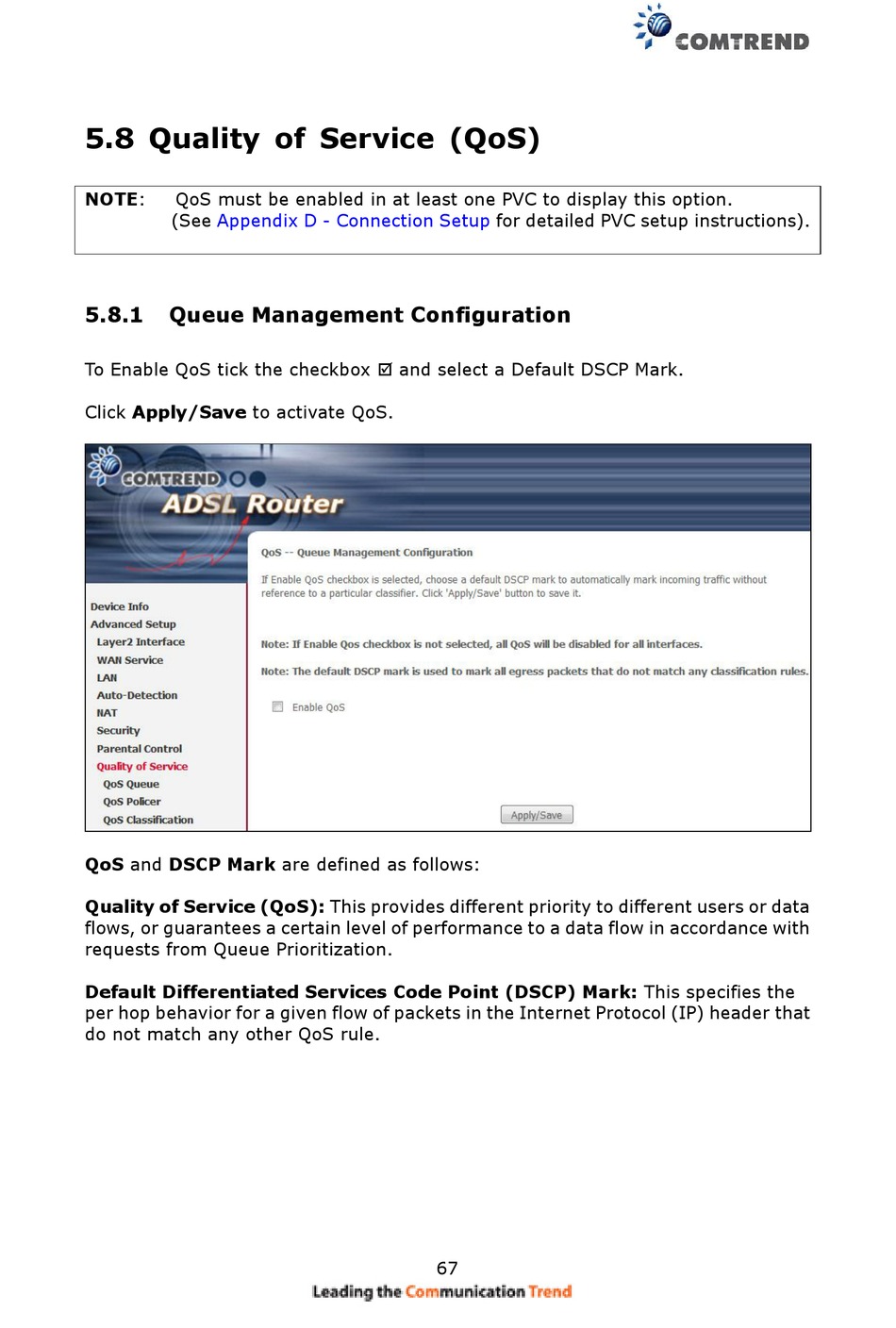

5.8 Quality of Service (QoS)

NOTE: QoS must be enabled in at least one PVC to display this option.
(See Appendix D - Connection Setup for detailed PVC setup instructions).
5.8.1

Queue Management Configuration

To Enable QoS tick the checkbox  and select a Default DSCP Mark.
Click Apply/Save to activate QoS.
QoS and DSCP Mark are defined as follows:
Quality of Service (QoS): This provides different priority to different users or data
flows, or guarantees a certain level of performance to a data flow in accordance with
requests from Queue Prioritization.
Default Differentiated Services Code Point (DSCP) Mark: This specifies the
per hop behavior for a given flow of packets in the Internet Protocol (IP) header that
do not match any other QoS rule.
67
