5.5 NAT

To display this option, NAT must be enabled in at least one PVC shown on the
Chapter 5 Advanced Setup
NAT is not an available option in Bridge mode.
5.5.1

Virtual Servers

Virtual Servers allow you to direct incoming traffic from the WAN side (identified by
Protocol and External port) to the internal server with private IP addresses on the
LAN side. The Internal port is required only if the external port needs to be
converted to a different port number used by the server on the LAN side.
A maximum of 32 entries can be configured.

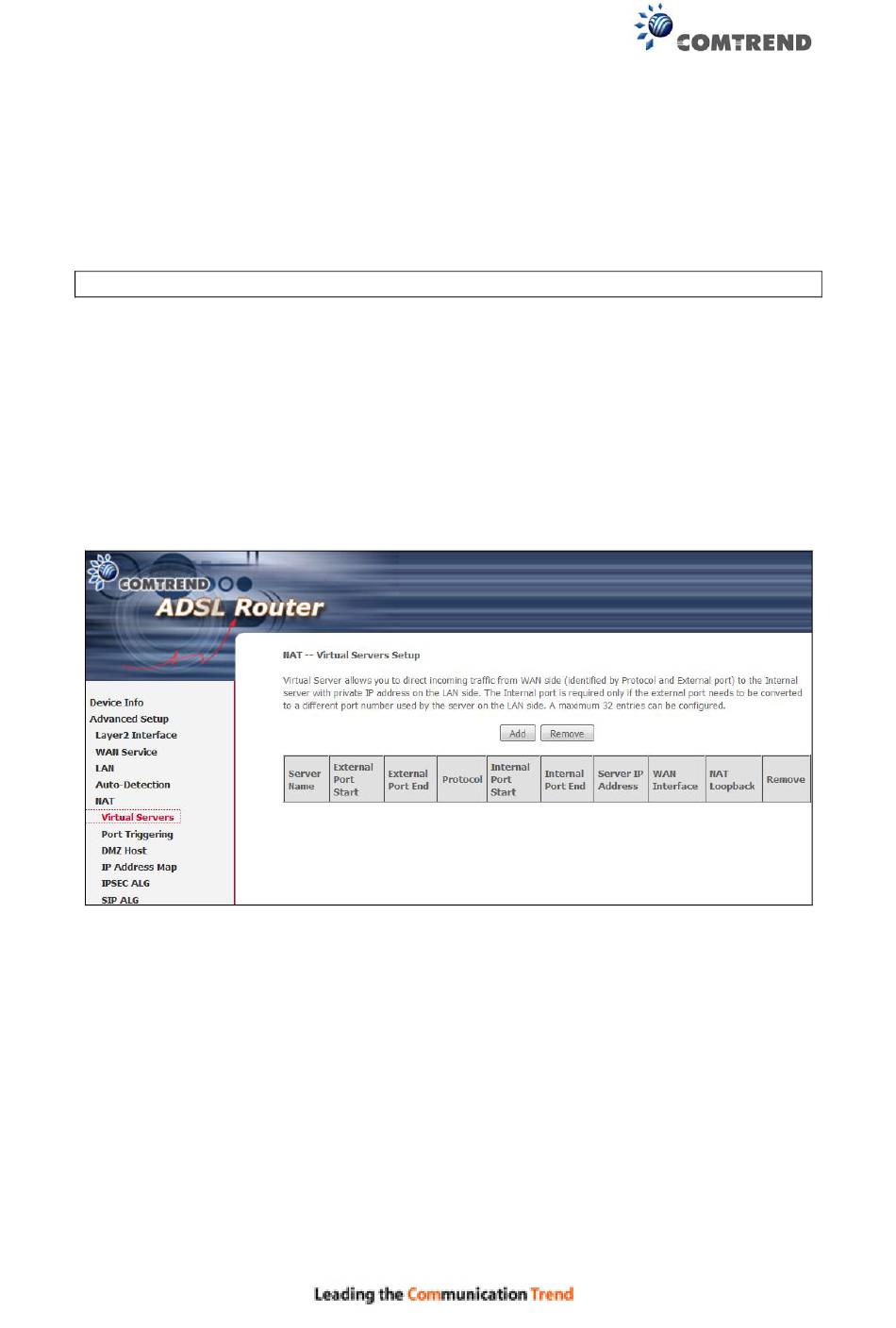

To add a Virtual Server, click Add. The following will be displayed.
50
