800 size EC‐135

including

SM2.0 mechanics

Manual

CCPM SCALE RC HELICOPTER

INCLUDING FENESTRON

Table of Contents

Need help?

Do you have a question about the EC-135 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roban EC-135

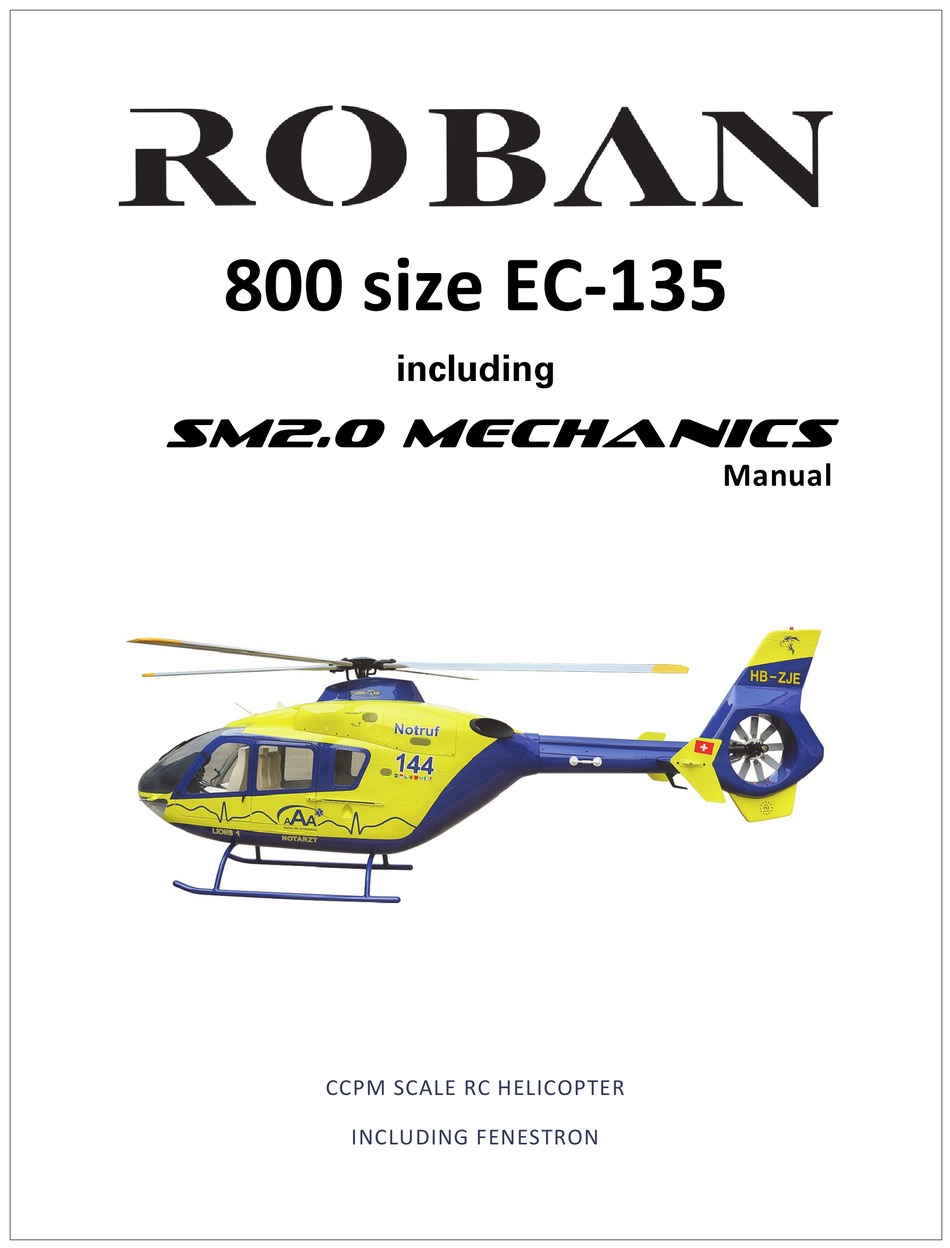

Page 1 800 size EC‐135 including SM2.0 mechanics Manual CCPM SCALE RC HELICOPTER INCLUDING FENESTRON ...
Page 2 Super Scale 800 Manual – EC‐135 Release 1.0 ‐ August 2016 Roban Limited Zhengyacun Industrial Zone, Venture Cross Rd. Jiaolian, Wanjiang City District of Dongguan, 523046 Dongguan County (GD) ‐ PRC Copyright@2016 - Roban Limited – All rights reserved...
Page 3 Battery:* 44.4V 5000mAh 35C+ Flight time: 5 minutes Takeoff weight: 8500g Flight Stabilization:* 3 axis flybarless gyro Radio Control:* min. 6 channel with pitch and throttle curves *) Optionally available equipment The Compactor is a high performance radio controlled scale helicopter. Our goal was to create a simple, high performance helicopter, with a minimum of mechanical components and simple maintenance. Please read this user manual carefully, it contains instructions for the correct assembly of the model. Please refer to the web site www.robanmodel.com for updates and other important information. Thank you for your purchase, and have a great time with your Compactor! Roban Limited Copyright@2016 - Roban Limited – All rights reserved...
Page 4 *A radio controlled helicopter must only be used in open spaces without obstacles, and far enough from people to minimize the possibility of accidents or of injury to property or persons. *A radio controlled helicopter can behave in an unexpected manner, causing loss of control of the model, and make it a very dangerous flying object. *Lack of care with assembly or maintenance can result in an unreliable and dangerous model. *Neither Roban Limited nor its agents have any control over the assembly, maintenance and use of this product. Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release Roban Limited from any responsibility or liability arising from the use of this product. SAFETY GUIDELINES *Fly only in areas dedicated to the use of model helicopters. *Follow all control procedures for the radio frequency system. *It is necessary that you know your radio system well. Check all functions of the transmitter before every flight. *The blades of the model rotate at a very high speed; be aware of the danger they pose and the damage they may cause. *Never fly in the vicinity of other people. NOTES FOR ASSEMBLY Please refer to this manual for assembly instructions for this model. Follow the order of assembly indicated. The instructions are divided into chapters, which are structured in a way that each step is based on the work done in the previous step. Changing the order of assembly may result in additional or unnecessary steps. Use thread lockers and retaining compounds as indicated. In general, each bolt or screw that engages with a metal part requires thread lock. Factory pre‐assembled components have been assembled with all the required thread lock and lubricants, and have passed quality control. It is not necessary to disassemble and re‐assemble them. We do not recommend the use of thin cyanoacrylate glue for surface mount of painted parts. The fumes of the curing glue leave white stains on the clear coat, which are hard to remove. Copyright@2016 - Roban Limited – All rights reserved...
Page 5 30 – Screw M3x10 x6 31 – Ball link x4 32 – Nut M2 x4 33 – Nut M3 x4 34 – Screw M3x10 x3 35 – Motor pinion support 36 – Pinion bearing block x3 Copyright@2016 - Roban Limited – All rights reserved...
Page 7 ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Electric Motor: *Generic pliers 12S – 450KV 750MX, or similar *Hexagonal driver, size 1.5, 2, 2.5, 3, 4mm pinion shaft diameter 6mm *4mm T‐Wrench *Speed controller: *5.5mm Socket wrench (for M3 nuts) minimum 120A to be safe *8mm Hex fork wrench (for M5 nuts) *Batteries: 10‐12S 4000‐5000mAh *Medium threadlocker (eg. Loctite 243) *1 flybarless 3 axis control unit, suitable for scale flying *Strong retaining compound (eg. Loctite 648) *Radio power system *Spray lubricant (eg. Try‐Flow Oil) *3 cyclic servos *Synthetic grease (eg. Tri‐Flow Synthetic Grease) *1 tail rotor servo *Cyanoacrylate adhesive *6 channel radio control system on 2.4 GHz *Pitch Gauge (for set‐up) *Soldering equipment (for motor wiring) Inside the main box there are: Inside the main box: Bag 1: Manual ...
Page 8 Assembly Scale Fuselage Prior to installing the mechanics into the fuselage, please prepare the fuselage according to the following steps. Installation into the fuselage most of the helicopter mechanic become inaccessible. The landing gear has to be installed first. As you will have to turn the mechanics over, please make sure that you are not scratching the paint by using a old blanket or a rig while working on it. ...
Page 16 Assembly Mechanics The mechanics are almost entirely preassembled and split up into four sections: rotorhead, main frame, tail frame and tail tube. Prior to the installation into the scale fuselage, the mechanics have to be entirely assembled, electronic components installed, adjusted and tested. After installation into the fuselage most of the helicopter mechanic become inaccessible. Step 1 – Rotorhead Slide the rotorhead onto the main shaft. Use screw (70‐ Make sure the distance between the ball link and the L lever 00006) and nylon nut (70‐00007) to secure the rotorhead is ...
Page 18 Step 5 – Adjust swashplate linkages The linkages from the L‐Levers to the swash plate have to be set at correct length. Distances are uniball center to uniball center: 1=35mm Step 6 – Motor and Belt installation In order to install the motor, you must first disassemble one Mount the motor as shown using washers and screws onto of the side frames in order to have access to the mounting the ...
Page 20 Step 7 – Electrical Wiring and Setup The mechanics have to be fully electrically setup and adjusted prior to installation into the fuselage. As the use of a 12S ATTENTION ! (44.4V) setup is necessary, we strongly recommend to run the control equipment on a separate 2S Lipo battery and BEC for When using the a pitch gauge to adjust correct CP travels, security reasons. make sure that the gauge lines up with the flat surface of ...
Page 21 Step 8 – Installation of mechanics ...
Page 44 Ball joint 22mm Kugelgelenk 22mm 1‐JJ‐70‐00027 Swash upper ring Taumelscheibe Oberteil 1‐JJ‐70‐00028 Bearing 30x42x7 Kugellager 30x42x7 1‐JJ‐70‐00029 Swash lower ring Taumelscheibe Unterteil 1‐JJ‐70‐00030 Ball head Kugelkopf 1‐JJ‐70‐00031 Washer 2x8x1 Beilagscheibe 2x8x1 1‐JJ‐70‐00032 Screw M2x6 Schraube M2x6 RCH‐70‐022 1‐JJ‐70‐00003 Rotorhead top Rotorkopf oben 1‐JJ‐70‐00004 Rotorhead bottom Rotorkopf unten RCH‐70‐023 1‐JJ‐70‐00001 Rotorhead Cap Rotorkopfkappe Copyright@2016 - Roban Limited – All rights reserved...
Page 45 Bearing holder Kugellagerhalter 11‐600jRCH‐70‐ X Junction X‐Verbinder 002 RCH‐70‐042 1‐JJ‐70‐00097 Tail servo frame Heckservorahmen 1‐JJ‐70‐00098 Tail servo clamp Heckservoklammer RCH‐70‐043 1‐JJ‐70‐00102 Gear 1M 30T Zahnrad 1M30T RCH‐70‐044 1‐JJ‐70‐00103 Tail pushrod 702mm Gestänge 702mm RCH‐70‐045 1‐JJ‐70‐00104 Tail support holder Strebenaufnahme 1‐JJ‐70‐00105 Bolt 1.5x7.8 Bolzen 1.5x7.8 1‐JJ‐70‐00106 Tail support rod Heckstrebe Copyright@2016 - Roban Limited – All rights reserved...
Page 46 RCH‐70‐070 1‐JJ‐70‐00040 Servo rod guide Gestängeführung RCH‐70‐071 1‐JJ‐70‐00045 Bearing 5x10x4 Kugellager 5x10x4 RCH‐70‐072 1‐JJ‐70‐00054 Screw M2.5x8 Schraube M2.5x8 RCH‐70‐073 1‐JJ‐70‐00055 Bearing 12x24x6 Kugellager 12x24x6 RCH‐70‐074 1‐JJ‐70‐00056 Bearing 10x19x5 Kugellager 10x19x5 RCH‐70‐075 1‐JJ‐70‐00081 Nylon Nut M2.5 Nylon Mutter M2.5 RCH‐70‐076 1‐JJ‐70‐00084 Screw M2.5x8 Schraube M2.5x8 RCH‐70‐077 1‐JJ‐70‐00085 Screw M2.5x20 Schraube M2.5x20 Copyright@2016 - Roban Limited – All rights reserved...
Page 47 RCH‐70‐105 1‐60‐WJ‐00004 Shaft bevel gear Kegelrad 20T RCH‐70‐106 1‐JJ‐70‐00089 Washer 10x13x0.1 Beilagscheibe 10x13x0.1 RCH‐70‐107 1‐JJ‐70‐00129 Nylon Nut M2 Nylon Mutter M2 RCH‐70‐108 1‐JJ‐70‐00141 Tail spindle Heckrotor Welle RCH‐70‐109 1‐JX‐47‐00115 Rotor hub 3 blade Rotorkopf 3 Blatt RCH‐70‐110 1‐JX‐47‐00103 Rotor hub 4 blade Rotorkopf 4 Blatt Copyright@2016 - Roban Limited – All rights reserved...
