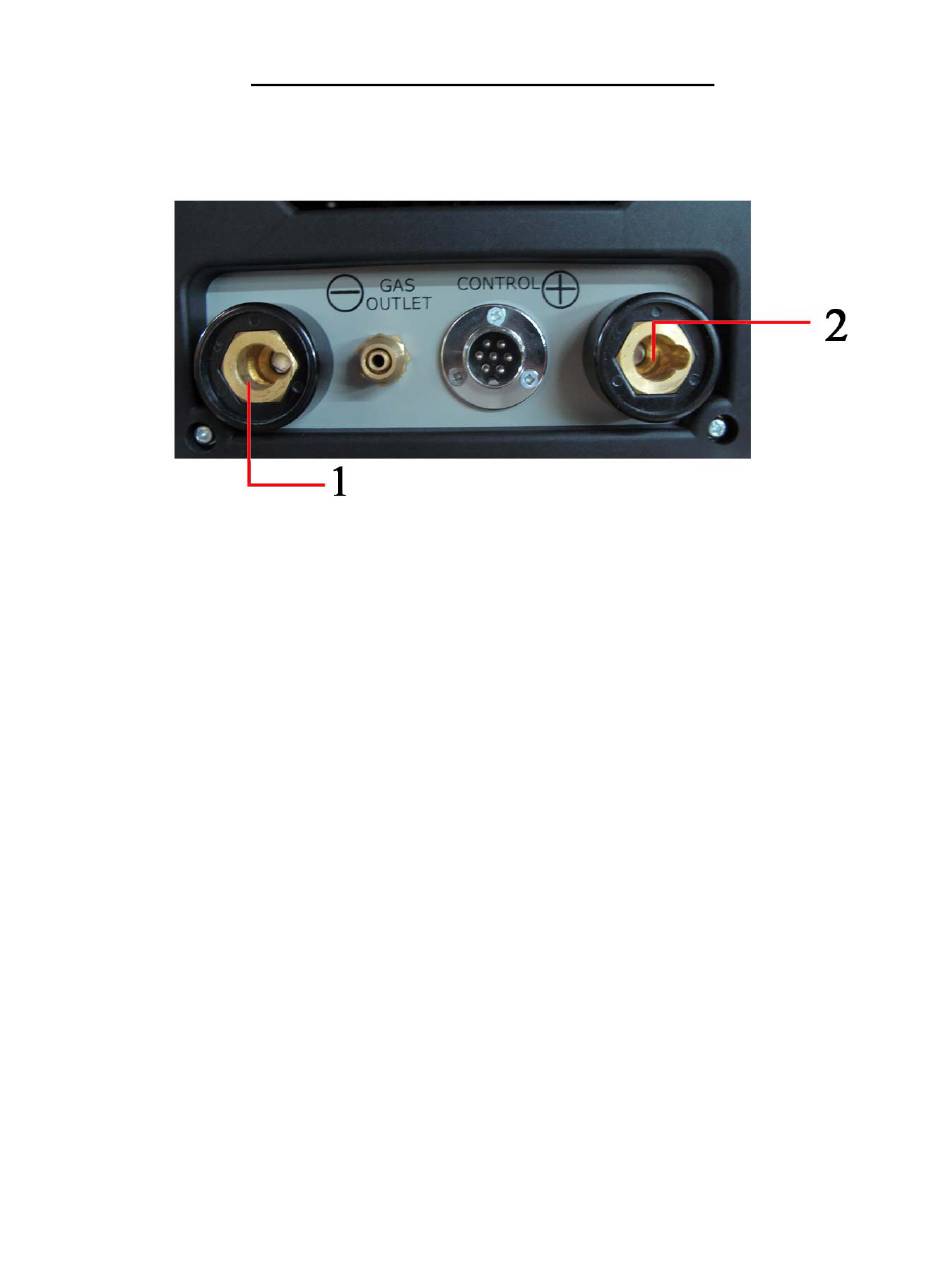

Connections for STICK MMA (SMAW) Welding

1. Negative power connector -
Connect the earth lead to by inserting and twisting until tight and the earth clamp to
work/bench.
2. Positive power connector +
Connect the electrode holder by inserting and twisting until tight
10
Fig 3
