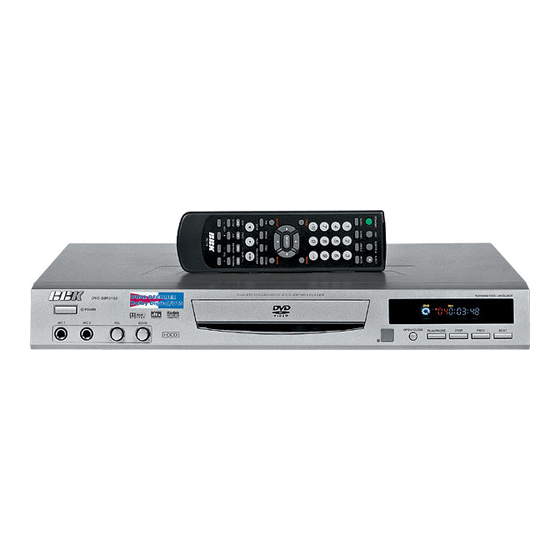

BBK BBK916S Service Manual
  1. Manuals
  2. Brands
  3. BBK Manuals
  4. DVD Player
  5. BBK916S
  6. Service manual

BBK BBK916S Service Manual

Hide thumbs Also See for BBK916S:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
BBK916S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBK916S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BBK BBK916S

Summary of Contents for BBK BBK916S

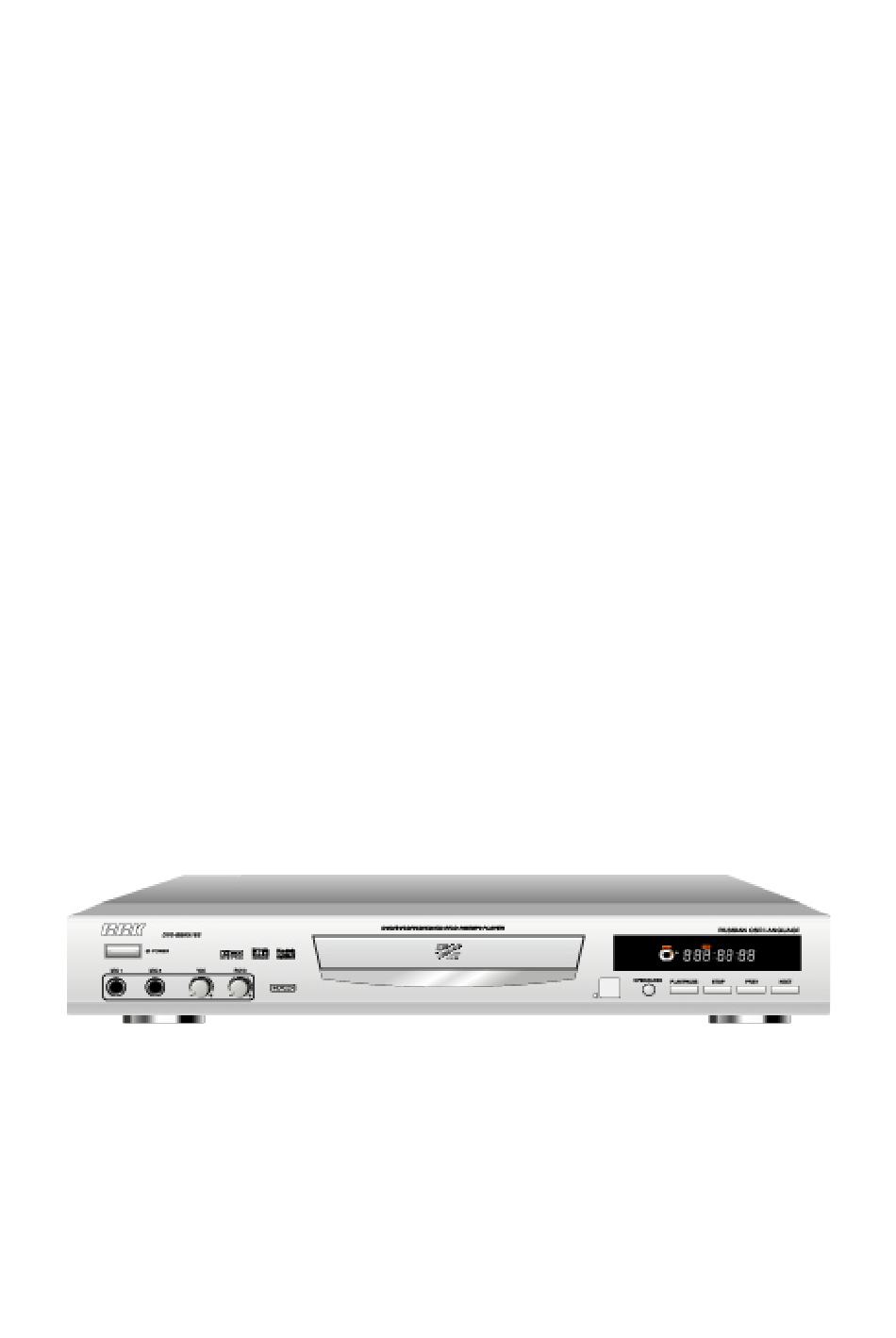

  • Page 1 SERVICE MANUAL BBK916S...

  • Page 2: Table Of Contents

    C O N T E N T S S AF E T Y P R IC AUT IONS P R E V E NT ION OF E LE C T R O S TATIC DIS C HAR G E (E S D)TO E LE C T R OS TATIC ALLY S E NS IT IV E (E S )DE V IC E S C ONT R OL B UT T ON LOC AT IONS AND E XP LANAT IONS P R E V E R TION OF S TATIC E LE C T R IC IT Y DIS C HAR G E...

  • Page 3: S Af E T Y P R Ic Aut Ions

    1. SAFETY PREAUTIONS 1.1 GENERAL GUIDELINES 1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers shields are properly installed.
  • Page 5 STANDBY Button Press once to stand by, Press twice to play. OSD Button Display or hid disc information. GOTO Button Play from the desired location. AUDIO Button Change the audio language or audio channel. EJECT Button Open or close the disc tray.

  • Page 6: P R E V E R Tion Of S Tatic E Le C T R Ic It Y Dis C Har G E

    4.PREVENTION OF STATIC ELECTRICITY DISCHARGE The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human body. Use due caution to electrostatic breakdown when servicing and handling the laser diode. 4.1.Grounding for electrostatic breakdown prevention Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged by static electricity in the working environment.Proceed servicing works under the working environment where grounding works is completed.

  • Page 7: Assembling And Disassembling The Mechanism Unit

    5. Assembling and disassembling the mechanism unit 5.1 Optical pickup Unit Explosed View and Part List Pic (1)
  • Page 8 Materials to Pic (1) PARTS CODE PARTS NAME Q ty 14692200 SF-HD60 1EA0311A06300 ASSY, CHASSIS, COMPLETE 1EA0M10A15500 ASSY, MOTOR, SLED 1EA0M10A15501 ASSY, MOTOR, SLED 1EA2451A24700 HOLDER, SHAFT 1EA2511A29100 GEAR, RACK 1EA2511A29200 GEAR, DRIVE 1EA2511A29300 GEAR, MIDDLE, A 1EA2511A29400 GEAR, MIDDLE, B 1EA2744A03000 SHAFT, SLIDE 1EA2744A03100...
  • Page 9 5.2 Bracket Explosed View and Part List Pic (2) Materials to Pic(2) 1.bracket 14. front silicon rubber 2.belt 15. Back silicon rubber 3.screw 16. Pick-up 4.belt wheel 17. Pick-up 5.gearwheel 18. switch 6.iron chip 19. Five-pin flat plug 7. Immobility mechanism equipment 20.

  • Page 10: Miscellaneous

    5.3 MISCELLANEOUS 5.3.1 Protection of the LD(Laser diode) Short the parts of LD circuit pattern by soldering. 5.3.2 Cautions on assembly and adjustment Make sure that the workbenches,jigs,tips,tips of soldering irons and measuring instruments are grounded,and that personnel wear wrist straps for ground. Open the LD short lands quickly with a soldering iron after a circuit is connected.

  • Page 11: Electrical Confirmation

    6.Electrical Confirmation 6.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.
  • Page 12 6.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 13: Mpeg Board Check Waveform

    7.MPEG BOARD CHECK WAVEFORM 7.1 27MHz WAVEFORM DIAGRAM 7.2 IC5L0380R PIN.2 WAVEFORM DIAGRAM...

  • Page 14: Ic Block Diagram & Description

    MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE 8. IC BLOCK DIAGRAM & DESCRIPTION 8.1 MT1336 GENERAL DESCRIPTION M T 1 3 3 6 i s a h i g h p e r f o r m a n c e C M O S a n a l o g f r o n t -e n d I C f o r b o t h C D _ R O M d r i v e r u p t o 4 8 X S a n d D V D - R O M d r i v e r u p t o 1 6 X S .
  • Page 15 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE DVDA RFOP DVDB ATTENUATOR INPUT MUX RFON DVDC LRFRP DEFECT DVDD HRFRP CRTP DVDRFIN ENVELOP ENVELOP CRTPLP DETECTOR DETECTOR DVDRFIP REFCOS HALLCOS SBAD COSPHI DPFN REFSIN DPFO HALLSIN SINPHI DPDMUTE MDI2...
  • Page 16 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE WOBSO WVDD AGNDX DVDA AGNDX DVDB AVDDO DVDC RFOP DVDD RFON DVDRFIP AGNDO DVDRFIN AGNDT MT1336 AVDDT V2REFO RFGC VREFO DVD-ROM RFGCU RFGCI CEQP With CEQN AGNDX DVD_RAM AGNDX VDDP Read...
  • Page 17 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE MT1336 PIN DESCRIPTIONS Pin Numbers Symbol Type Description LQFP128 RF Flag Interface DEFECT Digital Output Flag of bad data output status RF SIO interface SCLK Digital Input RF serial clock input SDEN Digital Input RF serial data enable...
  • Page 18 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE RFGCU Analog RF AGC loop capacitor connecting for DVD -RAM RFGCI Analog RF AGC loop capacitor connecting for DVD -RAM Analog Input DC coupled DVD-RAM main-beam RF signal input A Analog Input DC coupled DVD-RAM main-beam RF signal input B Analog Input...
  • Page 19 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Analog Input MDI1 Laser power monitor input LDO1 Analog Ou tput Laser driver output Analog Input MDI2 Laser power monitor input LDO2 Analog Output Laser driver output RF RIPPLE CRTP Analog RF top envelop filter capacitor connecting...
  • Page 20 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE ALPC TRIMMING Analog input Trimming pin for ALPC1 Analog input Trimming pin for ALPC1 Analog input Trimming pin for ALPC2 Analog input Trimming pin for ALPC2 HIGH SPEED TRACK COUNTING TRLP Analog Low-pass filter capacitor connecting...
  • Page 21 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE...
  • Page 22 MT1379 Progressive Scan DVD Player Combo Chip Speci f i c ati o ns are subj e ct to change wi t hout noti c e 8.2 MT1379 § Tray control can be PWM output or digital output Super Integration DVD player single chip §...
  • Page 23 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE § cycle timings Downmix function § § Block-based sector addressing Support IEC 60958/61937 output § Programmable buffering counter for buffer status - PCM / bit stream / mute mode tracking - Custom IEC latency up to 2 frames §...
  • Page 24 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE EFINITIONS Pin Number Symbol Type Description IREF Analog Input Current reference input. It generates reference current for data PLL. Connect an ext ernal 100K resistor to this pin and PLLVSS. PLLVSS Ground Ground pin for data PLL and related analog circuitry...
  • Page 25 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description HIGHA6 Inout Microcontroller address 14 2~16MA, SR HIGHA7 Inout Microcontroller address 15 2~16MA, SR Inout Microcontroller address/data 7 2~16MA, SR Inout Microcontroller address/data 6 2~16MA, SR Inout Microcontroller address/data 5...
  • Page 26 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description IOA7 Inout Microcontroller address 7 / IO 2~16MA, SR Output Flash address 16 2~16MA, SR Output Flash address 17 2~16MA, SR IOA18 Inout Flash address 18 / IO 2~16MA, SR IOA19 Inout...
  • Page 27 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description UP1_7 Inout Microcontroller port 1 -7 4MA, SR PU, SMT UP3_0 Inout Microcontroller port 3 -0 4MA, SR PU, SMT UP3_1 Inout Microcontroller port 3 -1 4MA, SR PU, SMT INT0#...
  • Page 28 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description RD14 Inout DRAM data 14 2~16MA, SR PU/PD, SMT RD13 Inout DRAM data 13 2~16MA, SR PU/PD, SMT RD12 Inout DRAM data 12 2~16MA, SR PU/PD, SMT DVDD3 Power...
  • Page 29 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description DQM0 Output Mask for DRAM input/output byte 0 2~16MA, SR Output DRAM bank address 0 2~16MA, SR RA10 Output DRAM address10 2~16MA, SR DVDD2 Power 2.5V power pin for internal digital circuitry Output...
  • Page 30 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description RD23 Inout DRAM data 23 / 2~16MA, SR Videoin Data PortA 7 PU/PD, SMT RD22 Inout DRAM data 22 / 2~16MA, SR Videoin Data PortA 6 PU/PD, SMT DVDD2 Power...
  • Page 31 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description ASDATA3 Inout Audio serial data 3 (surround left/surround right channel) Trap value in power-on reset : PD SMT 1 : manufactory test mode 0 : normal operation OR Videoin Data PortB 1 ASDATA4 Inout...
  • Page 32 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Pin Number Symbol Type Description SPDATA Input Audio data of SPDIF input / Videoin Data PortB 5 DVDD2 Power 2.5V power pin for internal digital circuitry SPLRCK Input Audio left/right channel clock of SPDIF input / Videoin Data PortB 6 SPBCK Input...
  • Page 33 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE 26 Jul, 2002 Page 1 of 2 IREF YUV0/CIN PLLVSS LPIOP VREF LPION DACVDDC LPFON ASDATA4 LPFIP ASDATA3 LPFIN ASDATA2 LPFOP ASDATA1 JITFO ASDATA0 JITFN SPDIF PLLVDD3 MC_DATA ACLK DVDD3 TROPENPWM ALRCK...
  • Page 34 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE UNCTIONAL LOCK D V D m o d u l e S e r v o A n a l o g S p i n d l e D e b u g S y s t e m T V e n c o d e r...
  • Page 35 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE controller changes the mode and speed of operation according to servo register setting. The PWM generator generates pulse -width-modulated signal to drive disc spindle motor driver. CSS/CPPM The CSS/CPPM module provides functions necessary for decoding discs conforming to CSS/CPPM specification. System Parser The system parser is used to help the system controller to decode DVD/SVCD/VCD bitstream just after the channel decoder performing error correction.
  • Page 36 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE This is a hardware sub-picture decoder. It decodes the compressed SPU image bitstream and CHG_COLCON commands according to SPU header information previously decoded by system controller. The SPU module also allows two SPU objects to be displayed at the same time.
  • Page 37 MT1379 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE LECTRICAL HARACTERISTICS Absolute Maximum Rating Symbol Parameters Value Unit VDD3 3.3V Supply voltage -0.3 to 3.6 VDD2 2.5V Supply voltage -0.3 to 3.0 VDDA Analog Supply voltage -0.3 to 3.6 Input Voltage -0.3 to 5.5 Output Voltage...
  • Page 38 IC BLOCK DIAGRAM & DESCRIPTION 8.3 U214 HY29F800 KEY FEATURES n Sector Protection n 5 Volt Read, Program, and Erase – Minimizes system-level power requirements – Any combination of sectors may be n High Performance locked to prevent program or erase –...
  • Page 39 IC BLOCK DIAGRAM & DESCRIPTION BLOCK DIAGRAM DQ[15:0] A[18:0], A-1 STATE C O N T R O L ERASE VOLTAGE I/O BUFFERS G E N E R A T O R A N D DQ[15:0] S E C T O R S W I T C H E S C O M M A N D W E # REGISTER...
  • Page 40 IC BLOCK DIAGRAM & DESCRIPTION PIN CONFIGURATIONS RY/BY# RESET# W E # BYTE# DQ15/A-1 DQ14 DQ13 DQ12 W E # Standard BYTE# RESET# DQ11 TSOP48 DQ15/A-1 RY/BY# DQ10 DQ14 DQ13 DQ10 DQ12 DQ11 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 W E # Reverse RESET# DQ11...
  • Page 41 IC BLOCK DIAGRAM & DESCRIPTION U203 SDRAM-HY57V1610D 2 Banks x 512k x 16 Bit Synchronous DRAM D E S C R I P T I O N T H E H y n i x H Y 5 7 V 1 6 1 6 1 0 D i s a 1 6 , 7 7 7 , 2 1 6 - b i t s C M O S S y n c h r o n o u s D R A M , i d e a l l y s u i t e d f o r t h e M o b i l e a p p l i c a t i o n s w h i c h r e q u i r e l o w p o w e r c o n s u m p t i o n a n d i n d u s t r i a l t e m p e r a t u r e r a n g e .
  • Page 42 IC BLOCK DIAGRAM & DESRIPTION P I N C O N F I G U R A T I O N V D D V S S D Q 0 D Q 1 5 D Q 1 D Q 1 4 V S S Q V S S Q D Q 2...
  • Page 43 9.SCHEMATIC & P.C.B WIRING DIAGRAM FRONT SCHEMATIC DIAGRAM...
  • Page 44 FRONT SCHEMATIC DIAGRAM...
  • Page 45 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 46 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 47 OK SCHEMATIC DIAGRAM...
  • Page 48 OK SCHEMATIC DIAGRAM...
  • Page 49 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 50 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 51 MIAN SCHEMATIC DIAGRAM...
  • Page 52 MIAN SCHEMATIC DIAGRAM...
  • Page 53 MIAN SCHEMATIC DIAGRAM...
  • Page 54 MIAN SCHEMATIC DIAGRAM...
  • Page 55 MIAN SCHEMATIC DIAGRAM...
  • Page 56 MIAN SCHEMATIC DIAGRAM...
  • Page 57 BBK916S(RU)-2 MATERIAL LIST 1 DECODE BOARD MATERIAL SPECIFICATIONS/PART NUMBER QUANTITY LOCATION C2119,C2128,C2131,L243~L248,R205, R219,R220,R226,R240,R241,R243,R25 SMD RESISTOR 1/16W 0 ±5% 5,R257,R259,R282,R297,R324,R325,R3 32,R337,R2162 SMD RESISTOR 1/16W 75 ±5% R256 CARBON FILM 1/4W2.2 ±5% R341 RESISTOR SMD RESISTOR 1/16W1 ±5% R312,R313,R317,R318,R336 SMD RESISTOR 1/16W 4.7 ±5%...
  • Page 58 C216,C273,C274,C342,C2111,C2114,C SMD CAPACITOR 50V 101 ±5% NPO 0603 2117,C2120,C2123,C2126 SMD CAPACITOR 50V 331 ±5% NPO 0603 C217,C218 SMD CAPACITOR 50V 151 ±5% NPO 0603 C331,C334 SMD CAPACITOR 50V 391 ±10% 0603 C304,C305 SMD CAPACITOR 50V 471 ±10% 0603 C307 C201~C211,C221,C224,C227,C230 ~C232,C234,C235,C237,C240,C245 ~C253,C272,C278~C283,C289~C29 SMD CAPACITOR...
  • Page 59 MM74HCU04M SOP U205 63.1 IC HCU04 SOP U205 HY57V161610DTC-7 TSOP U203,U204 64.1 IC M12L16161A-7T SOP U203,U204 64.2 IC GM72V161621ET75 SOP U203,U204 64.3 IC AE45C16016T-7 SOP U203,U204 CS4360 SSOP U207 24C02N SOP U202 MT1336E QFP U301 MT1379E QFP U201 BA5954FP HSOP U302 CRYSTAL 27.00MHz 49-S...
  • Page 60 PORCELAIN 1000V 101 +80%-20% 7.5mm C503 CAPACITOR PORCELAIN 14.1 1000V 101 ±10% 7.5mm C503 CAPACITOR PORCELAIN 1000V 103 +80%-20% 7.5mm C502 CAPACITOR CERAMIC CT81 400V 221±20% 10mm BC503 CAPACITOR CERAMIC 16.1 CT81 400V221±10% 10mm BC503 CAPACITOR TERYLENE 100V 223 ±10% 5mm C506 CAPACITOR TERYLENE...
  • Page 61 PHOTOELECTRIC HS817 U502 COUPLER LM7805 METAL SEALED TO-220 U504 5907KB-2 SOCKET 5 PIN 2.0mm CN501 SOCKET 9 PIN 2.5mm CN503 SOCKET 2 PIN 2.5mm CN502 SOCKET 6 PIN 2.5mm CN504 SOCKET 2 PIN 8.0mm 2# BCN501,BCN502 CONNECTION 0.6 SHAPED 7.5mm J502,J503 CORDS CONNECTION...
  • Page 62 MAGNETIC BEADS RH354708 L701~L712 INDUCTANCE SMD MAGNETIC FCM1608K-221T05 L713,L714 BEADS PHOTOELECTRIC TX179ATW JK705 CONVERTER PHOTOELECTRIC 19.1 TX179AT JK705 CONVERTER TERMINAL CS-09 JK704 SOCKET TERMINAL AV8-8.4-6G-3 JK703 SOCKET SCART SOCKET SCART-01 JK701 EARTH CHIP OF THE POWER AB903 G701 BOARD CABLE SOCKET 14 PIN 1.0mm DUAL LINE XS701 TERMINAL...
  • Page 63 MICROPHONE CK3-6.35-106 MIC601,MIC602 SOCKET CONNECTION 0.6 SHAPED 7.5mm JP601~JP604 CORDS SMD RESISTOR R603,R604 1/16W 560 ±5% SMD RESISTOR 1/16W 1K ±5% R607,R608,R611,R626 SMD RESISTOR 1/16W 5.6K ±5% R616 SMD RESISTOR 1/16W 10K ±5% R605,R606,R617,R621,R624 SMD RESISTOR 1/16W 15K ±5% R618 SMD RESISTOR 1/16W 18K ±5% R615...
  • Page 64 LIGHT TOUCH SHAPED 6×6×1 K401 K405 RESTORE SWITCH 4921A-0 CONNECTION 0.6 SHAPED 10mm J401 CORDS 20# 100mm BLACK, WITH FOOT WELDED TO C401, SOLDERING CHIP CABLES SCREWED TO DECODE BOARD SOLDERING CHIP 5P380 2.0 2 PLUG WITH L NEEDLE, FLAT CABLES XS401 REVERSED 5P100 2.0 2 PLUG WITH L NEEDLE,...

Table of Contents
