- Page 1 BRYSTON OWNER’S MANUAL Instructions For Bryston SST Series Amplifiers Models 3B SST and 4B SST...
-
Page 2: Table Of Contents
Master Curcuit -Breaker AC Power Input Local/Auto Switch Local/External Switch Block Diagrams Typical Performance Graphs Technical Specifications Important Warranty Information 3B SST and 4B SST Series Amplifiers Page 1 Page 2 Page 3 Page 4 Page 5 Page 8 Page 9-12... - Page 3 Description 3B SST The 3B SST is a dual mono design 2 x 150W per channel audio power amplifier. Each channel selects a balanced or sin- gle ended input. Each channel selects a gain of 29dB(1v) or 23dB(2v). The 3B SST includes ‘soft start’ power control cir- cuitry to eliminate high inrush currents when A/C power is applied.

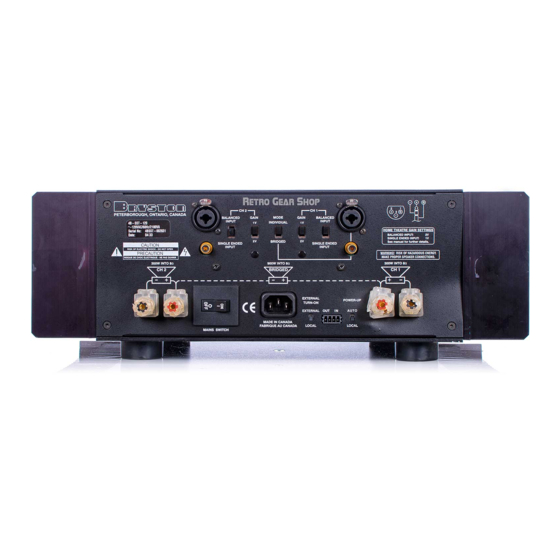

- Page 4 Bridge mode is for mono operation. 6. Level Control. (pro models only) The level control will attenuate the input signal level from 0dB through -14dB. Rear Panel Input / Output Connections 3B SST and 4B SST Series Amplifiers Fig 1...
-
Page 5: Output Binding Posts
2. Spade lugs provide high contact area and secure fastening. Lugs should be gold plated. See diagram for details. Post diameter is 5/16’ ( 8mm ), lug width 5/8” (16 mm). Gold plated spade lugs are available from Bryston. 3. Stripped bare wire up to 3 gage can be inserted through the hole in the binding post and held in place by tightening the post knob. -
Page 6: Front Panel Description
When the channel has cooled to a safe operating condition the channel will return to normal operation. Persistent Thermal shutdown indicates steps need to be taken to increase airflow across the channel or channels heat sink. ( Also see installation section on ventilation ). 3B SST and 4B SST Series Amplifiers... -
Page 7: Power Control Panel
The SST control circuitry itself draws less than 2 mA from the control current when operating. Power Control Control Voltage source 4 to 12v ac or dc 3B SST and 4B SST Series Amplifiers Control voltage wire preparation for screw terminals fig W separate 1”... - Page 8 3B SST and 4B SST Series Amplifiers...
- Page 9 3B SST and 4B SST Series Amplifiers Typical Band-pass Noise 4BSST Typical Band-pass Noise 3BSST Power supply artifacts are all below -95 dBu Power supply artifacts are all below -95 dBu balanced input with 23dB (2v) gain shown balanced input with 23dB (2v) gain shown dBu: dB relative to a reference of 0.7746 Volts...
- Page 10 3B SST and 4B SST Series Amplifiers Typical Frequency Response 3BSST Typical Frequency Response 4BSST 8 ohm 150w 8 ohm 300w 4 ohm 250w 4 ohm 500w Typical Phase Response 3BSST Typical Phase Response 4BSST 4 ohm 400w 4 ohm 400w...
- Page 11 2v balanced input shown. 4 ohm 250w Typical IMD Sweep 3BSST 4 ohm 250w 3B SST and 4B SST Series Amplifiers Typical THD+N Sweep 4BSST Graph shows that distortion is essentially unaffected by load. 2v balanced input shown.
- Page 12 3B SST and 4B SST Series Amplifiers Damping Factor 3BSST AND 4BSST 8 ohm reference Typical Crosstalk 3BSST AND 4BSST Channel 2 reading with channels 1 driven to rated output into 8 ohms Channel 2 reading with channels 1 driven to...
-
Page 13: Technical Specifications
2 channels @ 250W @ 4 ohms - 1096 Watts Max. Heat Dissipation 4 ohms - Bridged @ 450W @ 8 ohms - Max. Heat Dissipation 8 ohms - 3B SST and 4B SST Series Amplifiers Technical Specifications Power Output 300 watts per channel into 8 ohms... - Page 14 Bryston. In the event of a defect or malfunction, Bryston will remedy the problem by repair or replacement, as we deem necessary, to restore the product to full performance.
