Serial/Analog One-Shot - Crestron SIMPL Windows User Manual

Crestron SIMPL Windows

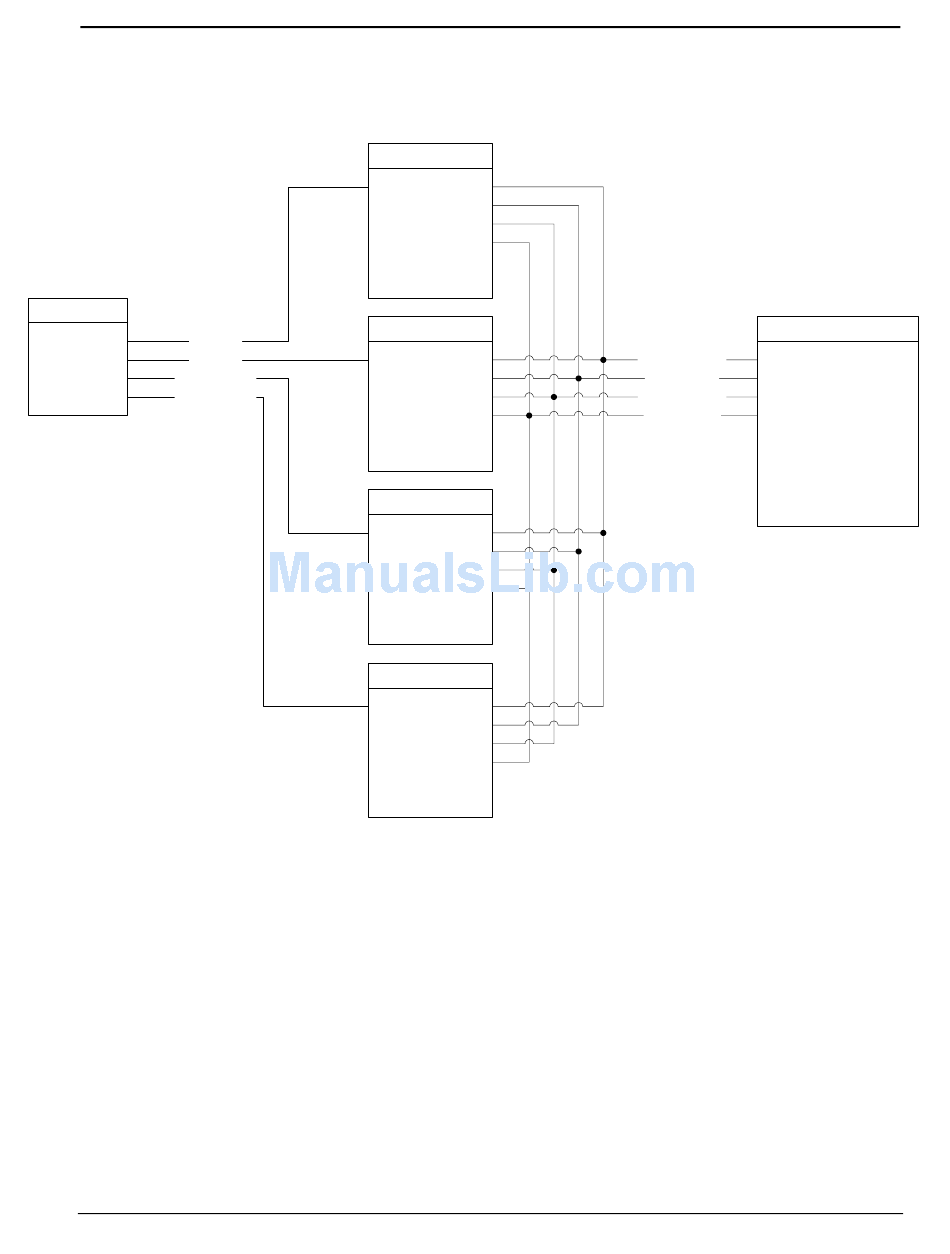

Analog Preset Example: preset volume levels
Touchpanel
fb1 press1
Lights_On
fb2 press2
Lights_Off
fb3 press3
Lights_Scene_1
fb4 press4
Lights_Scene_2
Primer – DOC. 6253
Analog Preset
100%
100%
100%
100%
ramp_time 1s
Analog Preset
0%
0%
0%
0%
ramp_time 3s
Analog Preset
50%
10%
75%
50%
ramp_time 2s
Analog Preset
25%
55%
30%
10%
ramp_time 2s
Note that this implementation does not allow for user-adjustable lighting scenes;
instead the light levels are "hard-coded" into the program and changing these presets
would require editing and recompiling the program. To add support for presets that
can be adjusted at run-time without requiring editing the program, you could use a
combination of the Analog RAM and Analog Variable Preset symbols, which are not
discussed in this primer. Please see the SIMPL Windows help file for more
information on these two symbols.

Serial/Analog One-Shot

Sometimes it is helpful not only to know the value of an analog signal, but to know
whenever it changes value. This is the job of the Serial/Analog One-Shot. This
symbol is similar in nature to the One-Shot family of symbols discussed in the
Digital Logic chapter, except that instead of relying on a digital signal to trigger the
Software
CLX-1DIM4
incandescent
Downlights_Level
incandescent
Accents_Level
incandescent
Chandelier_Level
incandescent
Sconces_Level
Override1
Override2
Override3
Override4
Crestron SIMPL Windows • 61
