User Interface (Touchpanel) Symbol
Selected Signal
Primer – DOC. 6253
The button press is the end user's request for a specific action; therefore, the output
signals of the user interface have to be named, or "defined". This way, each signal
can be identified and routed properly.

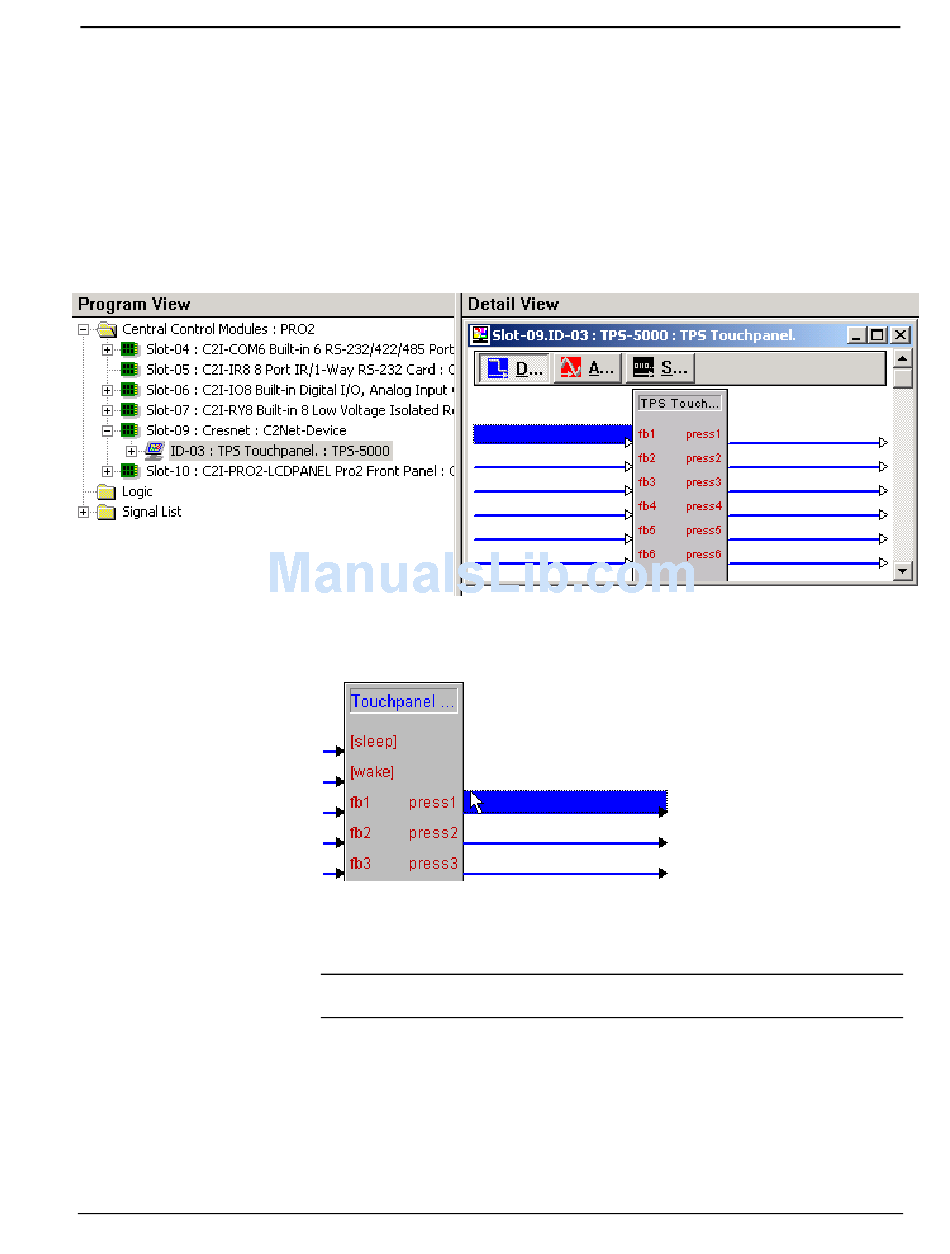

To program a user interface, locate it in Program View by expanding the appropriate
slot or folder. Then drag the interface to Detail View or double-click it. This will
display the touchpanel definition in Detail View.
Click each signal you want to name. Signals should be given descriptive names such
as "Power_On", "Screen_Up" or "DVD_Play", for example.
The signal must be selected or highlighted before text can be entered. By default, the
top input signal (top left) is automatically selected when a signal is first displayed.
Use the pointer or arrow keys to navigate around the symbol.
NOTE: Signals whose symbol label appears in [brackets] are optional and are not
necessary for the symbol to operate.
You can enter the signal name when the signal is highlighted.
