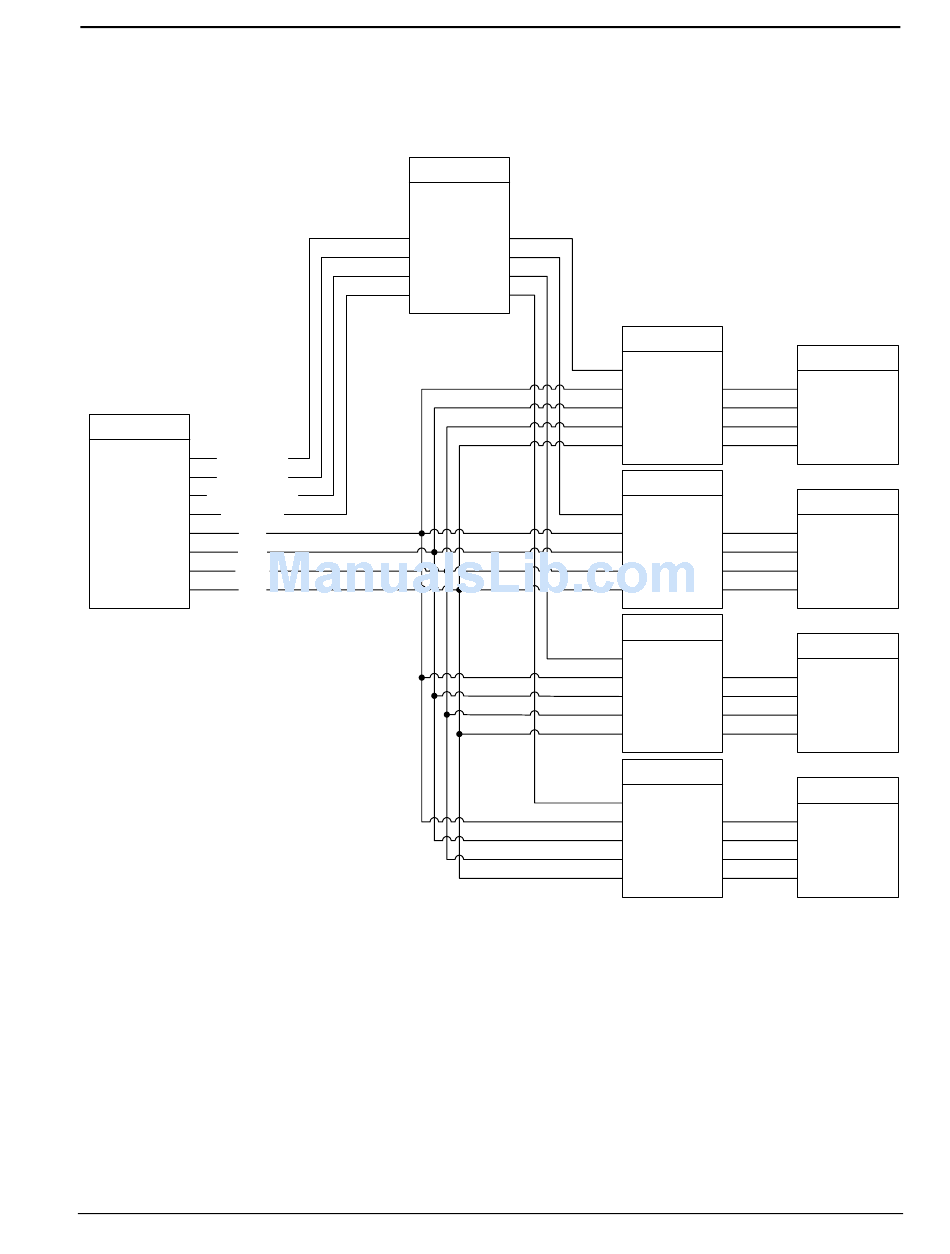

Interlock Example: multi-device control (part 2) - Each IR Driver symbol represents a different .IR file to control a different device
CNRFHT30
A
press1 DVD_Select
press2 VCR_Select
press3 Jukebox_Select
press4 CD_Select
press5 Play
press6 Stop
press7 FFwd
press8 Rew
Primer – DOC. 6253
Interlock
clear
set_all
in1 out1
in2 out2
in3 out3
in4 out4
Earlier in the chapter we discussed controlling multiple devices with a common set
of buttons using Buffer symbols. At the time, we simply accepted that appropriate
signals were generated to enable or disable the Buffers, thus ensuring that only one of
them was enabled at any given time. Now that we have introduced the Interlock
symbol, we can complete this example as shown above.
Buffer
enable
in1 out1
in2 out2
in3 out3
in4 out4
Buffer
enable
in1 out1
in2 out2
in3 out3
in4 out4
Buffer
enable
in1 out1
in2 out2
in3 out3
in4 out4
Buffer
enable
in1 out1
in2 out2
in3 out3
in4 out4
Crestron SIMPL Windows • 51
Software
IR Driver
PLAY
STOP
FFWD
REW
IR Driver
PLAY
STOP
FFWD
REW
IR Driver
PLAY
STOP
FFWD
REW
IR Driver
PLAY
STOP
FFWD
REW
