- Page 1 Leica DSX Quick Guide Version 2.0 English...
- Page 2 Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual before using the product or the accessories delivered with the product. ☞ Keep for future reference! Intended use Data communication with external appliances • Carrying out measurement tasks using various GNSS measuring techniques •...

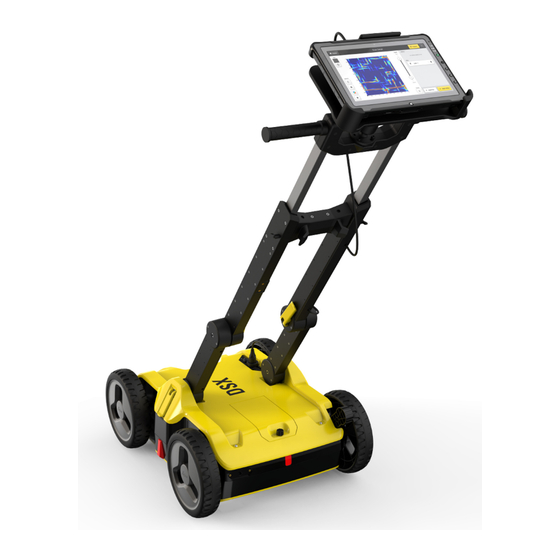

- Page 3 Cradle for CT1000 tablet Extendable handle Handle extension knobs Upper cam levers for foldable handle Wheel lock for cart brake Power button for the DSX Front alignment marker on the carrying handle Battery compartment Encoders – placed inside the rear wheels...
-
Page 4: Technical Data
Technical Data Technical Data Environmental Temperature specifications Operating temperature [°C] Storage temperature [°C] −10 to +40 −40 to +70 GEB242: −10 to +55 −40 to +70 Protection against water, dust and sand Protection IP65 (IEC 60529) Humidity Protection Max 95% non-condensing The effects of condensation are to be effectively counteracted by periodically drying out the instrument. -
Page 5: Care And Transport
For products for which no container is available use the original packaging or its equivalent. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, container and cardboard box, or its equivalent, to protect against shock and vibration. Care and Transport... -
Page 6: Operation
Operation Operation Unfolding and Adjusting the Handle Unfold and adjust the handle 0019569_001 Release inner cam levers and unfold upper handle legs . Lock inner cam levers until the visual markers are aligned. Release outer cam levers and raise entire handle assembly until the visual markers are aligned. - Page 7 Attaching and Connecting the Laptop or Tablet Attach and con- The support is designed to hold a CT1000 tablet. ☞ nect the tablet 0019586_001 ☞ The support includes the tablet cradle to hold the tablet, two RAM balls (one attached to the cart handles and the other to the cradle). Also it includes a double socket arm which holds together the RAM balls.
- Page 8 Operation 0019587_001 Mount the two RAM balls to attach the tablet to the handle: One to the handle top • The other to the tablet cradle • Use the double socket arm to hold the two RAM balls: Adjust the tablet cradle until optimal inclination and then tighten the screw on the double socket arm.
- Page 9 Plug in the DSX LAN cable to the tablet. 0019637_001 xxxxxx_001 xxxxxx 001 Operation...
-
Page 10: Inserting The Battery
Operation Inserting the Battery Insert the battery 0019570_002 To open the battery compartment, loosen the screw on the battery compartment. Insert the battery facing downwards. The rough surface of the battery points towards the up-down direction. Close the battery compartment and tighten the screw. - Page 11 Switching the DSX ON/OFF Switch the DSX device ON/OFF 0019637_001 xxxxxx_001 xxxxxx_001 Press the ON/OFF key on the DSX. Operation...
-
Page 12: Eu Declaration Of Conformity
EU Declaration of Conformity EU Declaration of Conformity Conformity to The equipment conforms to the following requirements set by EC regulations, European regula- including subsequent modifications, and to the legislation set by the member tions states that implement these regulations: 2014/53/EU Radio Directive Warning: this equipment is destined for use in industrial environments (Class A apparatus). - Page 13 EU Declaration of We, Leica Geosystems AG, CH-9435 Heerbrugg, declare under our sole Conformity responsibility that the product Leica DSX – Ground Penetrating Radar following the provisions of Directive(s) This corresponds 2014/53/EU Radio equipment (RED) (in accordance with annex III) •...
- Page 14 EN 62479:2010 • EN 301 489-1 V2.2.0: 2017 • EN 301 489-33 V2.2.1: 2019 • EN 302 066 V2.1.1: 2017 • Draft EN 302 066 V2.2.0: 2019 • ☞ For translations into the official EU languages please refer to: http://www.leica-geosystems.com/ce...
- Page 16 900634-2.0.0en Original text (900634-2.0.0en) Printed in Switzerland, © 2021 Leica Geosystems AG Leica Geosystems AG Heinrich-Wild-Strasse 9435 Heerbrugg Switzerland www.leica-geosystems.com...
