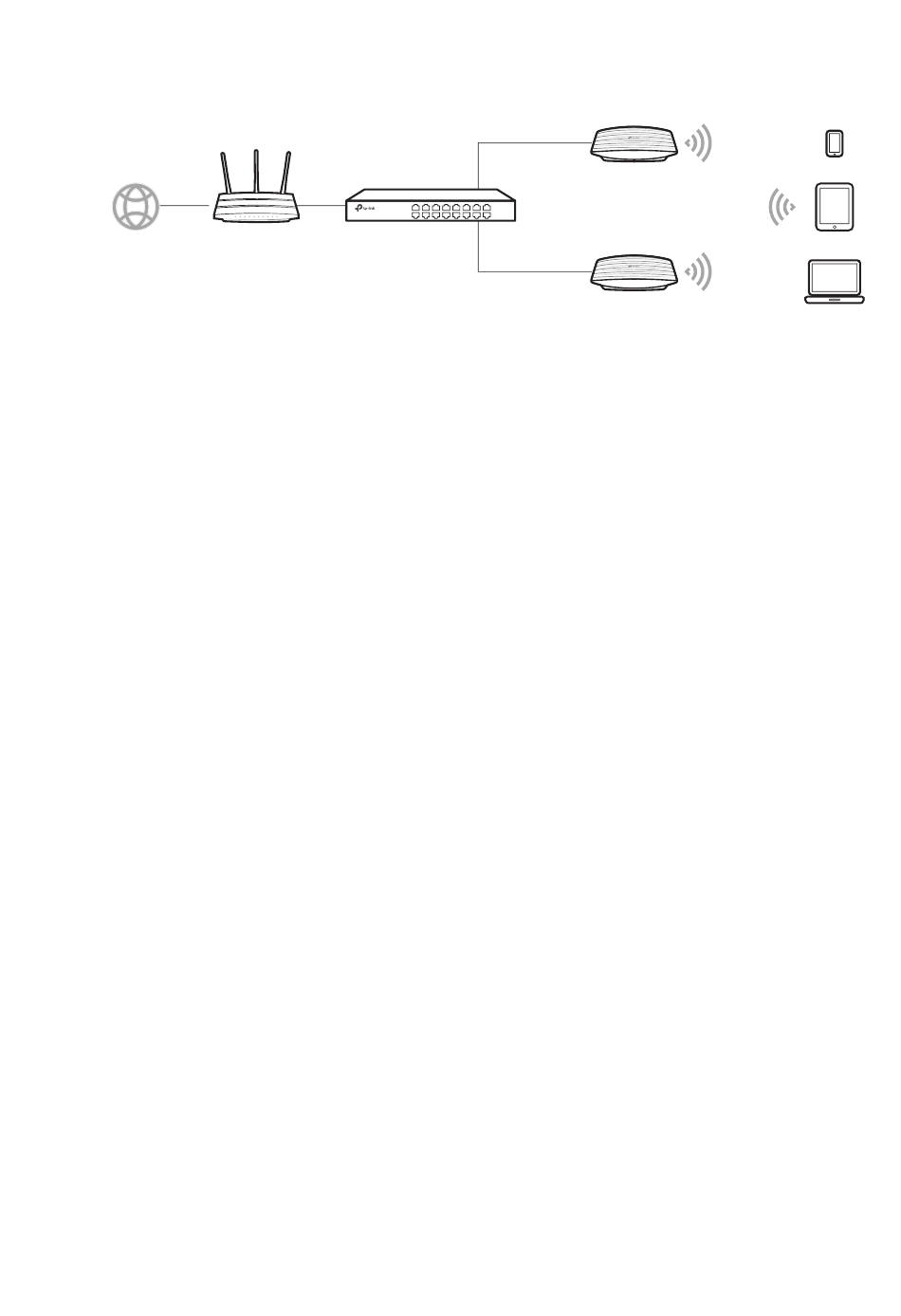

• If you want to power your EAPs using a PoE switch, refer to the following topology.
Internet
WAN
Router (DHCP Server)
• The router is the gateway of the network, and devices in the LAN surf the internet via the router.
At the same time, the router acts as a DHCP server to assign dynamic IP addresses to the EAPs
and clients.
• The dual-band EAP has two default SSIDs named
P-Link_2.4GHz_XXXXXX on the 2.4GHz band
and
P-Link_5GHz_XXXXXX on the 5GHz band, and the single-band EAP has a default SSID
named
P-Link_2.4GHz_XXXXXX on the 2.4GHz band.
LAN
PoE Switch
7
EAP
EAP
Clients
