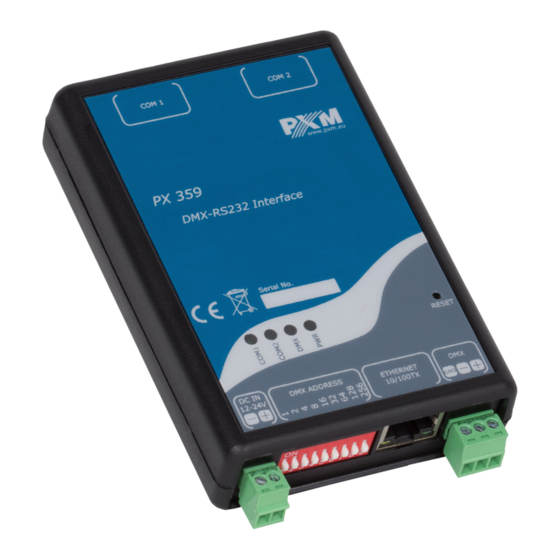

- Page 1 PX359 DMX – RS232 Interface User manual...
-
Page 2: Table Of Contents
6 RDM – available parameters..............21 7 Connection scheme.................23 8 Dimensions....................24 9 Technical data..................25 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-2 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
IP address. Safety conditions PX359 is a device powered with safe voltage 12 – 24V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12 – 24V DC with current- carrying capacity compatible with technical data. - Page 4 6. The PX359 should be strictly protected against contact with water and other liquids. 7. All sudden shocks, particularly dropping, should be avoided. 8. The device cannot be turned on in places with humidity exceeding 90%. 9. The device cannot be used in places with temperature lower than +2°C or higher than +40°C.
-
Page 5: Connectors And Control Elements
Connectors and control elements physical reset button signalling diodes DMX address - DIP switch power supply 12 - 24V DC DMX512 RS-232 connectors input Ethernet... -
Page 6: Operation The Device
Description of the output pins : 1 2 3 4 5 6 7 8 9 Operation the device 4.1 Indication light PX359 is equipped with 2 indicator signaling : Indicator Action Function the device is switched yellow Power permanently on... -
Page 7: Reset Button
4.3 DMX address switch – DIP Switch PX359 allows to set the DMX address using the DIP Switch in binary code. It can be edited via the website or RDM protocol. The following page shows an example of DMX address settings. - Page 8 DMX ADDRESS position ON position OFF DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS NOTE! If the value 0 is set on the DIP Switch, the device takes the DMX address stored in the memory.
-
Page 9: Configuration Of The Device
The computer and the device must be on the same subnet. Default IP address in PX359: 192.168.0.50 If several PX359 devices are connected to one network, their IP addresses should be changed individually to avoid network conflict. NOTE! PX359 does not support DHCP. -
Page 10: Summary
PC connected by Ethernet crossover cable PX359 default network settings: IP : 192.168.0.50 Mask : 255.255.255.0 Examples of PC network settings: IP : 192.168.0.51 Mask : 255.255.255.0 DHCP : off 5.1.1 Summary In the Summary tab there are the most essential information concerning... -
Page 11: Network Settings
5.1.2 Network settings In this tab user can change: • IP address, mask, • gate. •... -
Page 12: Dmx Settings
The introduced changes require a device restart. When saving the settings, a window with a message warning that the changes have been made will be displayed. Here you can also read the MAC address of the device and the link bandwidth. -
Page 13: Dmx Input Preview
NOTE! The Base address parameter has a lower priority than the value on the DIP Switch, therefore in order for the device to accept this parameter as the current DMX address, make sure that the address on the DIP Switch is set to 5.1.4 DMX input preview This tab shows the values of the received DMX signal on selected channels. -
Page 14: Rs-232 Settings
5.1.5 RS-232 settings This tab allows to set parameters independently for both RS-232 buses: Baudrate [bps]: Data bits: • 1200 • 8 • 2400 • 9 • 4800 • 9600 Stop bits: • 14400 • 1 • 19200 • 2 •... -
Page 15: Commands
NOTE! The parameters must match the settings on the receiving device. 5.1.6 Commands The Commands tab lists all user-defined commands. The device can define up to 128 commands. The editor of commands : • Name – a string of characters that allows the user to easily identify the command. - Page 16 Activation by DMX signal: Offset – the number of the DMX channel in relation to the current • address of the device, on which the appropriate level will trigger the command. Each command must have its unique offset – it is not possible to define more than one command with the same offset.
- Page 17 HEX EDITOR The HEX editor allows to save / edit the command in the hexadecimal format. Each bite of the command is saved with two hexadecimal characters – owing to which it is possible to define the binary command, consisting of any bites.
- Page 18 ASCII EDITOR The ASCII allows to save / edit the commands in the form of printable characters ASCII. Due to this fact it is more clear in case of defining commands consisting of only printable bites. Moreover, it is possible to write any byte by giving it in hexadecimal format in curly braces {}.
-
Page 19: Administration
The editor signals an error because the value given in the brackets is interpreted as a bite written hexadecimal and not decimal 5.1.7 Administration The following options are available in the Administration tab: Export all settings – export all settings of the device to a file, •... - Page 20 ▪ Label: PX359 ▪ IPv4: 192.168.0.50 ▪ Gateway: 192.168.0.1 ▪ Mask: 255.255.255.0 ▪ Base address: 1 (unless the DIP Switch is set) ▪ Min. duration time of trigger value: 2000 millisecond ▪ COM Baudrate: 115200 bps ▪ COM Data bits: 8 ▪...
-
Page 21: Rdm - Available Parameters
RDM – available parameters The PX359 supports the DMX – RDM protocol. DMX protocol allows only of a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices. - Page 22 Parameter name Description additional device description; DEVICE_LABEL * 0x0082 Up to 32 ASCII characters FACTORY_DEFAULTS 0x0090 device default settings DMX_PERSONALITY 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual 0x00E1 DESCRIPTION operational modes information concerning the SENSOR_DEFINITION 0x0200 selected temperature sensor SENSOR_VALUE 0x0201 information concerning sensors information concerning the...
-
Page 23: Connection Scheme
Connection scheme RS receiver RS receiver controller, e.g. PX333 the device's IP address 192.168.0.50 V- V+ power supply 12 - 24 V DC... -
Page 24: Dimensions
Dimensions... -
Page 25: Technical Data
Technical data type PX359 power supply 12 – 24V DC DMX input RS-232 output 2 x D-Sub Ethernet connector DHCP RDM protocol support connectors screw terminals power consumption max. 1W weight 0.1kg width: 75mm dimensions height: 112mm depth: 26mm... - Page 26 Podłęże, 03.02.2021 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX – RS232 Interface Product code: PX359 meets the requirements of the following standards, as well as harmonised standards:...
