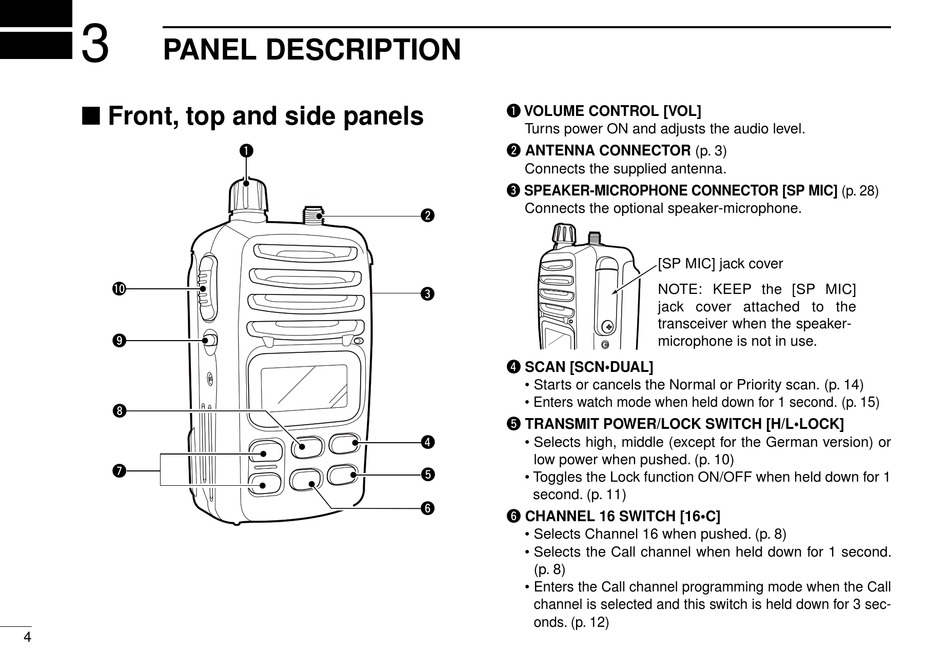

PANEL DESCRIPTION
■ Front, top and side panels
!0
o
i
u
4
q
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
w ANTENNA CONNECTOR (p. 3)
Connects the supplied antenna.
e SPEAKER-MICROPHONE CONNECTOR [SP MIC] (p. 28)
Connects the optional speaker-microphone.
w
e
r SCAN [SCN•DUAL]
• Starts or cancels the Normal or Priority scan. (p. 14)
• Enters watch mode when held down for 1 second. (p. 15)
t TRANSMIT POWER/LOCK SWITCH [H/L•LOCK]
r
• Selects high, middle (except for the German version) or
low power when pushed. (p. 10)
t
• Toggles the Lock function ON/OFF when held down for 1
second. (p. 11)
y
y CHANNEL 16 SWITCH [16•C]
• Selects Channel 16 when pushed. (p. 8)
• Selects the Call channel when held down for 1 second.
(p. 8)
• Enters the Call channel programming mode when the Call
channel is selected and this switch is held down for 3 sec-
onds. (p. 12)
[SP MIC] jack cover
NOTE: KEEP the [SP MIC]
jack cover attached to the
transceiver when the speaker-
microphone is not in use.
