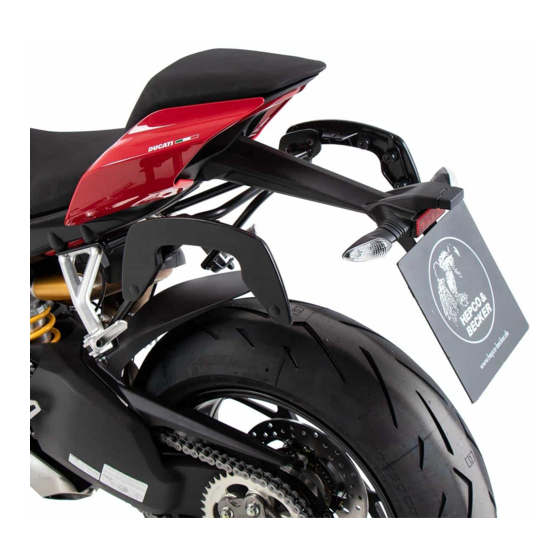

C-Bow Taschenhalter / C-Bow holder
Ducati Streetfighter V4 / S
2020-
Artikel Nr.: / Item-no.:
7598
630
00 01
schwarz/black
INHALT
CONTENT
2x 700007063 C-Bow schwarz
1x 700011036 Halter
1x 700011037 Schraubensatz:
4x Zylinderschraube M8x25
2x Zylinderschraube M6x50 10.9
6x Sechskantschrauben M6x16
6x U-Scheiben Ø6,4
8x Abdeckkappe M6
2x Selbstsichernde Mutter M6
2x Karosseriescheibe Ø6,4xØ18
2x Sprengring Ø6,4
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
6
Set
Ducati Panigale V4 / S / R
2018-
Artikel Nr.: / Item-no.:
7623
630
10
Verlängerung/extension
00 01
schwarz/black
2x 700007063 C-Bow black
1x 700011036 Holder
1x 700011037 Screw kit:
4x Allen screw M8x25
2x Allen screw M6x50 10.9
6x Hexagon bolt M6x16
6x Washer Ø6,4
8x Cover cap M6
2x Self lock nut M6
2x Body washer Ø6,4xØ18
2x Snap ring Ø6,4
Baubreite 43cm
Width: 43cm
Ratsche/Ratchet
1
Advertisement
Related Manuals for hepco & becker 6307623 00 01
Summary of Contents for hepco & becker 6307623 00 01
- Page 1 C-Bow Taschenhalter / C-Bow holder Ducati Streetfighter V4 / S Ducati Panigale V4 / S / R 2020- 2018- Artikel Nr.: / Item-no.: Artikel Nr.: / Item-no.: 7598 7623 00 01 00 01 schwarz/black schwarz/black INHALT CONTENT 2x 700007063 C-Bow schwarz 2x 700007063 C-Bow black 1x 700011036 Halter 1x 700011036 Holder...
- Page 2 M6x50 (do not forget the pressure ball!). Secure from the underside with a Ø6,4xØ18 body washer, Ø6,4 snap ring and self lock nut M6. Add cover caps on the nuts. Fahrtrichtung/driving direction 6307598 00 01 / 6307623 00 01...
- Page 3 Please notice our enclosed service information. Hepco & Becker GmbH Tel.: +49 (0)6331 - 1453 - 100 An der Steinmauer 6 Fax: +49 (0)6331 - 1453 - 120 D-66955 Pirmasens eMail: vertrieb@hepco-becker.de Germany www.hepco-becker.de 6307598 00 01 / 6307623 00 01...
