4.2 Transportation kit assembly (depending on versions)

Fastening the conveying hoses:

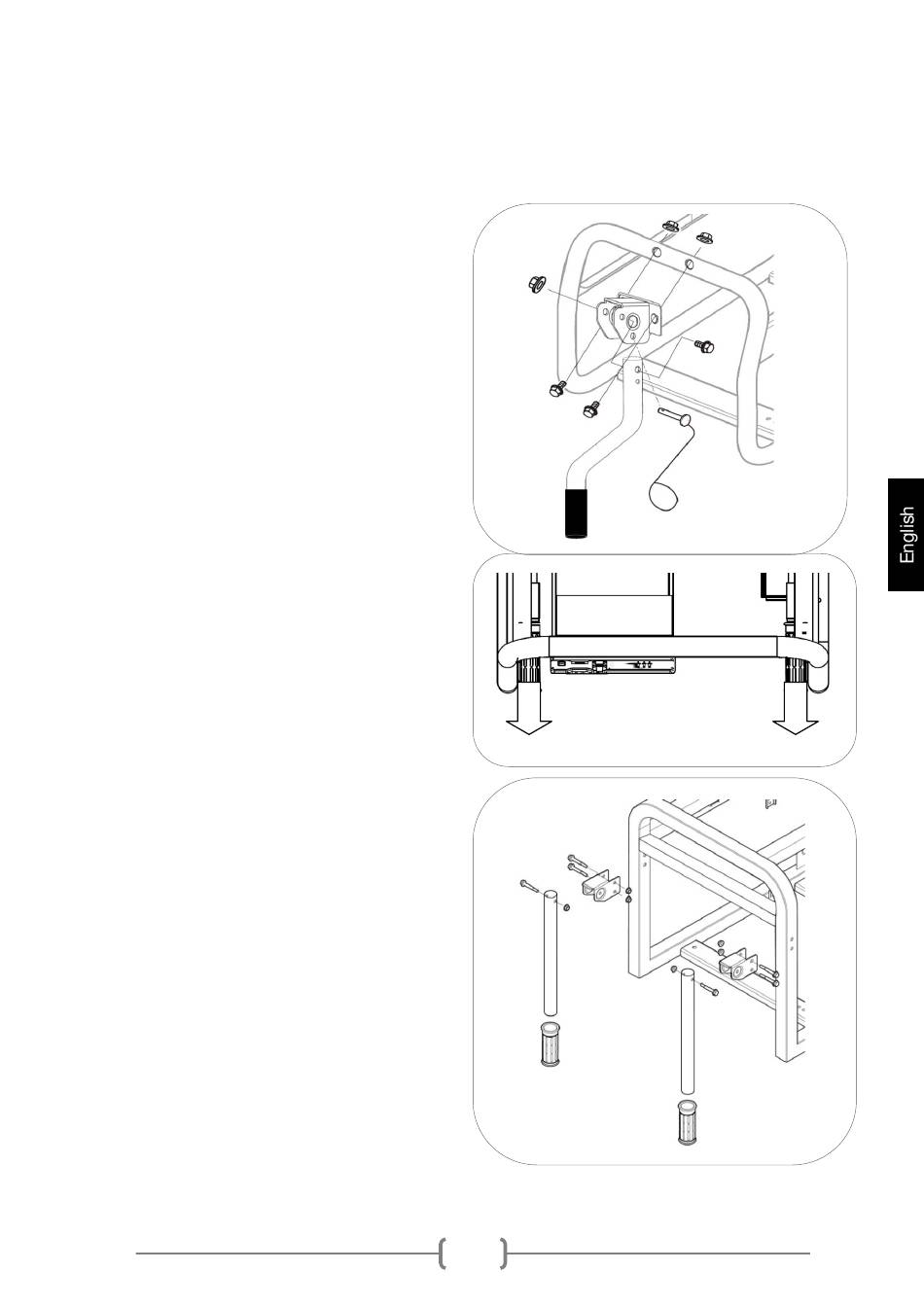

VULCANO Model
Attach the handle with the fold facing
outward as shown in the drawing, this
way the handle will not touch the front
of the engine.
The pin or lock allows the handle to be
fastened in the off position.
TIMANFAYA Model
This model has the handles (telescopic)
assembled in the machine frame.
Pull out to remove them in the direction
indicated by the arrows.
TEIDE Model
Fasten the transportation handle
hinges using 2 screws and bolts as
per the figure below.
Fasten the handles on the hinges
without tightening the screw
excessively so they can turn easily
and do not lock.
