- Page 1 Manual PRINETO Ratchet Sliding Pliers Type RSZ...
-
Page 2: Table Of Contents
PRINETO Ratchet Sliding Pliers 1 Information 4 Maintenance & disposal p. 3 p. 9 1.1 Explanation of symbols p. 3 4.1 Storage p. 9 1.2 Limitation of liability p. 4 4.2 Cleaning p. 9 1.3 Scope of delivery p. 4 4.3 Disposal p. -
Page 3: Information
1 Information This manual is part of the product. Pictures in this IMPORTANT! guide are used for the basic understanding and may be different from the actual performance. Please read this manual carefully Conventional procedures such as working with before you use this device and keep suitable work clothes are assumed to be known. -
Page 4: Limitation Of Liability
1.2 Limitation of liability All information and instructions in this manual has The actual scope of delivery can in special been compiled in accordance with current standards performance, the use of additional order options or and regulations, technical state and our many years due to latest technical changes be different from here of experience. -
Page 5: Product Description

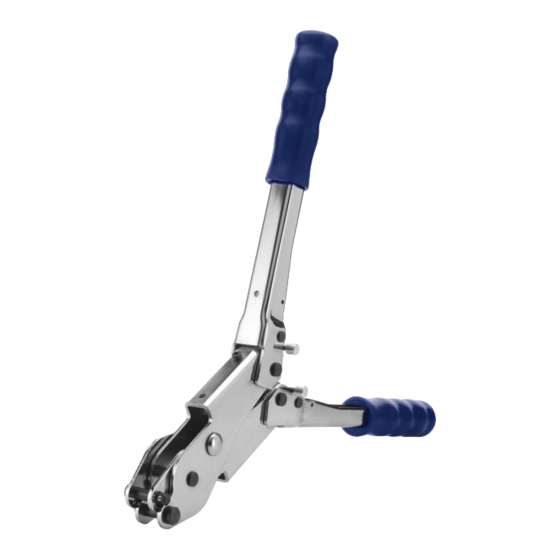

1.6 Product description This ratchet sliding pliers is used as intended for Position Name installing the IVT PRINETO pipe connection system. Sliding jaw The pipe connections are only allowed to be made Sliding jaw adapter with the designated (interchangeable) PRINETO sliding Bolts for sliding jaw jaws and sliding jaw adapter... -
Page 6: Safety
2 Safety DANGER! DANGER! RISK OF INJURY! Serious injuries are the result Hold the tool with both hands so that injury is prevented by converging jaws. WARNING! WARNING! RISK OF INJURY! Serious injuries are the result By working with the tool the relevant safety regulations, especially the accident prevention regulations of the professional associations should be noted. -
Page 7: Use
3 Use / 3.1 Before first use Take the tool from its packaging. This tool is lightly oiled. Remove excess oil with a lint-free cloth. Open and close the tool a few times to verify the functionality. 3.2 Use of the tool Install the exclusive IVT sliding jaw adapter. - Page 8 Depending on installation conditions the angle of leg 2 can be adjusted. By loosening the ratchet 2 the leg 2 be adjusted at three different angles. ATTENTION! Ratchet 2 is needed to be re-engaged! Fix tool at the pipe connection. Move the leg 1 back and forth until the pipe connection is mounted correctly.
-
Page 9: Maintenance & Disposal
4 Maintenance & disposal This tool is maintenance free. In order to achieve longer durability it is highly recommended that the roller chain and sprocket should be occasionally oiled. Replace the faulty components immediately and only by original spare parts according to 5.1 parts list. If necessary a general overhaul can be also provided by the manufacturer. -
Page 10: Attachment
5 Attachment / 5.1 Parts list PRINETO Ratchet Sliding Pliers Type RSZ Position Number Description Ratchet sliding pliers 1.03 Bolt K11.0 x 0.5 - ø8.0 x 22.8 - E 1.04 Bolt K10.0 x 2.0 - ø8.0 x 26.0 - E 1.05 Bolt K12.0 x 4.5 - ø8.0 x 25.0 - K 1.07... -
Page 11: Drawing Overview
5.2 Drawing overview Manual Version 1.0... - Page 12 IVT GmbH & Co. KG Gewerbering Nord 5 D-91189 Rohr Tel./Fax. +49 (0) 9876/97 86-0/-90 Info@ivt-rohr.de • www.ivt-rohr.de...
