WICED Smart Quick Start Guide

Testing the Hello Application

To test the application with a WICED Smart tag, follow the instructions provided for each of the Hello Service
characteristics (see Figure
• Hello Input Characteristic
a. Select Allow Notifications in the combo box.
b. Push the middle (Application) button on the WICED Smart tag (see
displayed in the Value field. Each time the button is pressed, the message number increments.
• Hello Configuration Characteristic
a. Change the value for the Hello Configuration to 5 and then click Write. The tag emits an audible beep
and the LED flashes five times to acknowledge the write.
b. Push the Application button (see
times.
Broadcom ®
September 24, 2014 • MMPWICED-Smart-QSG203-R
9, below).
Figure 10) on the WICED Smart tag. The LED on the tag blinks five

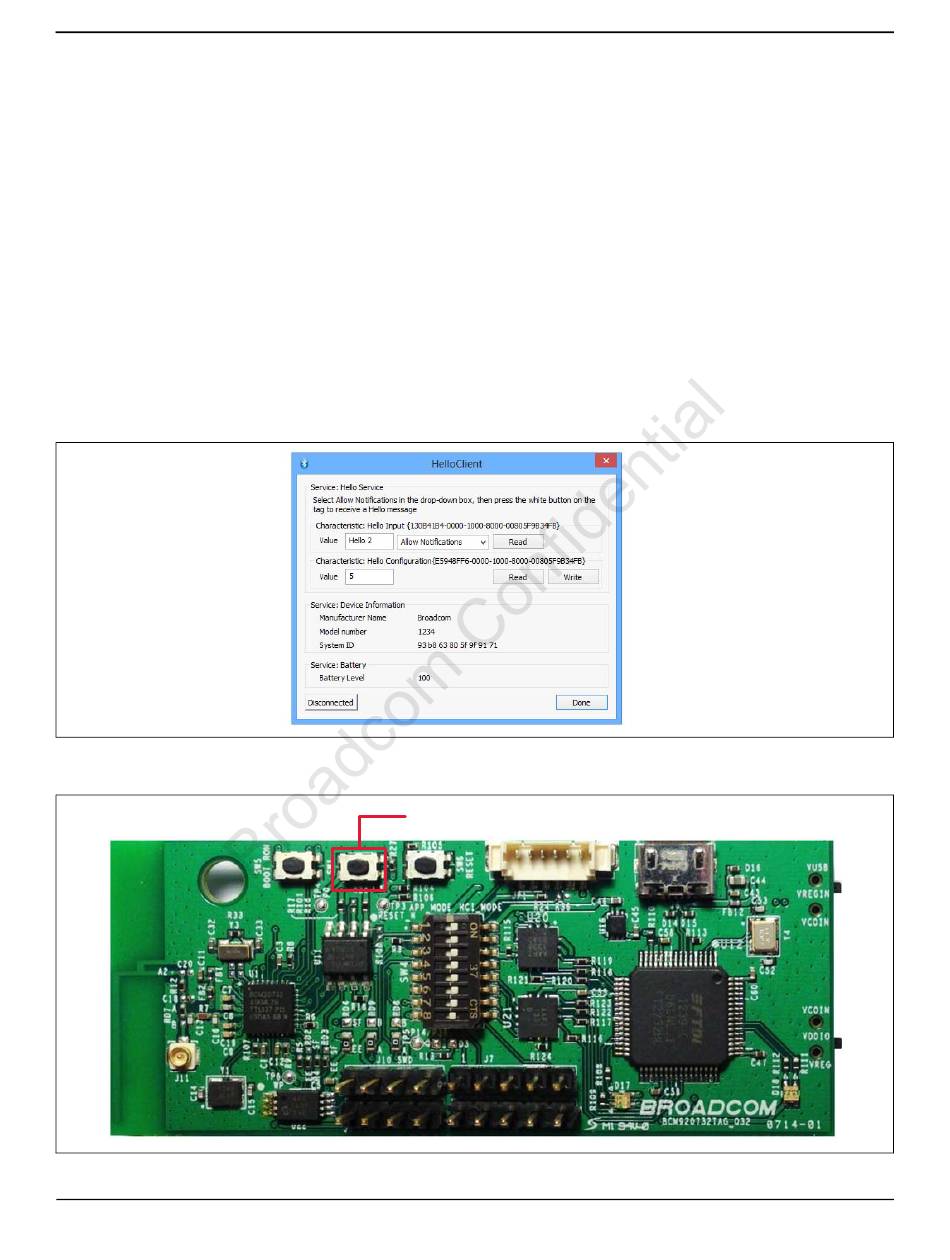

Figure 9: HelloClient Application

Figure 10: Application Button

Application Button
Testing a WICED Smart Tag with Windows 8
Figure 10). The Hello X message is
WICED Smart Development System
Page 24
