Application Test Example

A number of BLE applications are available for phones and tablets. In this example, the LightBlue iOS
application is used on an Apple iPhone 5.
Download the LightBlue App (from the Apple App Store) to the iOS device and start the application. Ensure that
Central is selected on the bottom taskbar. If the heart rate monitor app is working correctly, the LightBlue App
shows BLE HR Monitor in a box, as shown in the upper-portion of the left-most LightBlue window in the
screenshot in Figure 5. The heart rate monitor application is configured to regularly send dummy heart rate
measurements. To see measurements update in real time: tap BLE HR Monitor > Heart Rate > Heart Rate
Measurement and then tap Start Notify at the bottom of the Details screen.

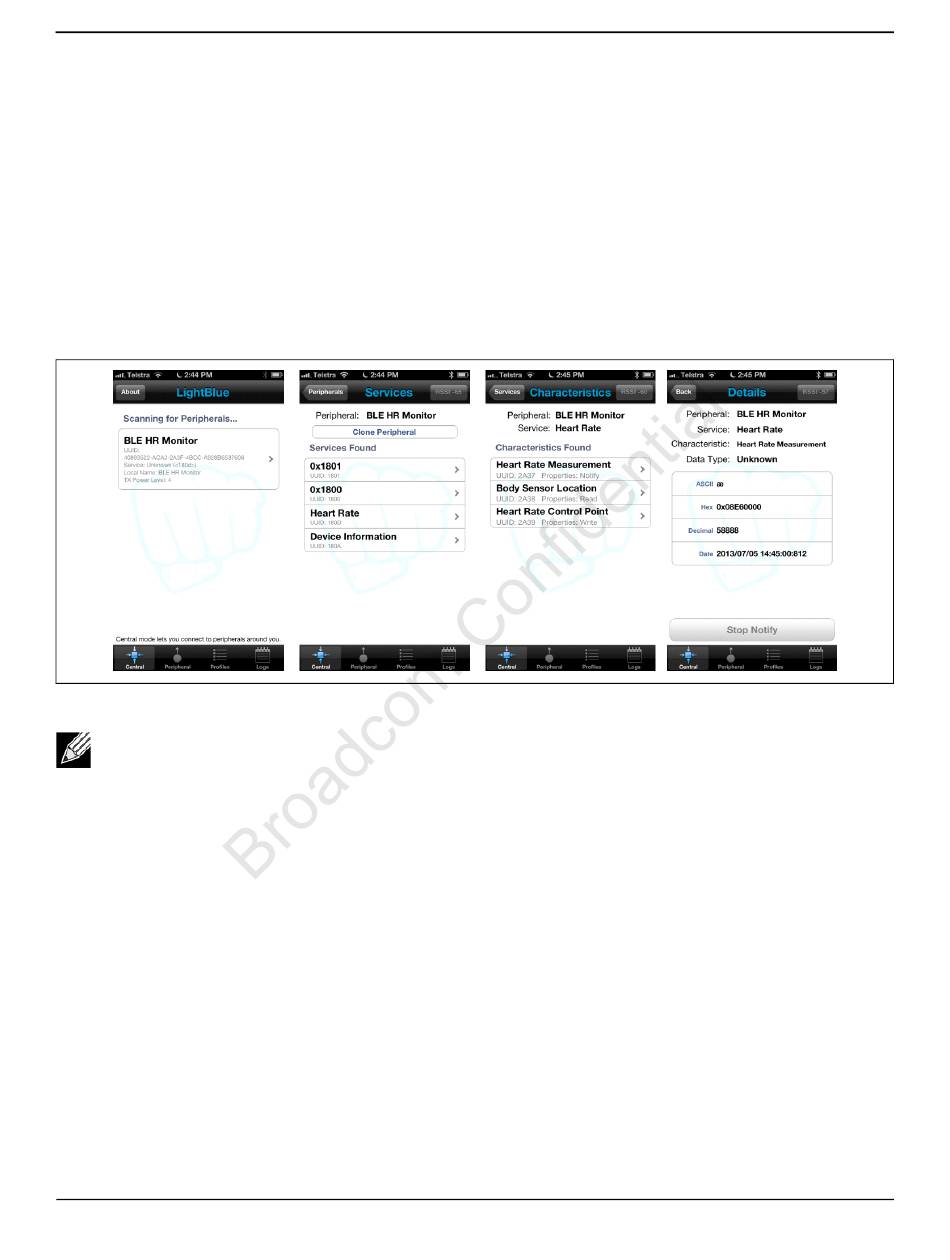

Figure 5: LightBlue iOS Application Showing the WICED Smart Tag Heart Rate Monitor Application

Note: A description of the heart rate monitor application is provided in the header comments of the
heart_rate_monitor.c source file located in the WICED Smart SDK at:
<WICED-Smart-SDK>/Apps/heart_rate_monitor/heart_rate_monitor.c
