Zircon StudSensor Quick Start Manual

StudSensor
i
65 OneStep
Multifunction Stud Finder
Congratulations on purchasing one of the most technologically
advanced stud finders ever created! Zircon introduced the
StudSensor ™ in 1980 and has put over 25 years of research into
developing OneStep , the advanced technology at the core of
™
StudSensor i 65. OneStep technology senses, processes, and adapts
to wall surfaces to provide visibility into walls, floors, and ceilings.
i
StudSensor 65 is one of the fastest, most accurate, and
easiest-to-use stud finders on the market today.
REGISTER YOUR PRODUCT TO WIN!
Register your product today and be automatically entered in our monthly drawings
to win free Zircon products. To quickly and easily register your Zircon product, please
visit www.zircon.com

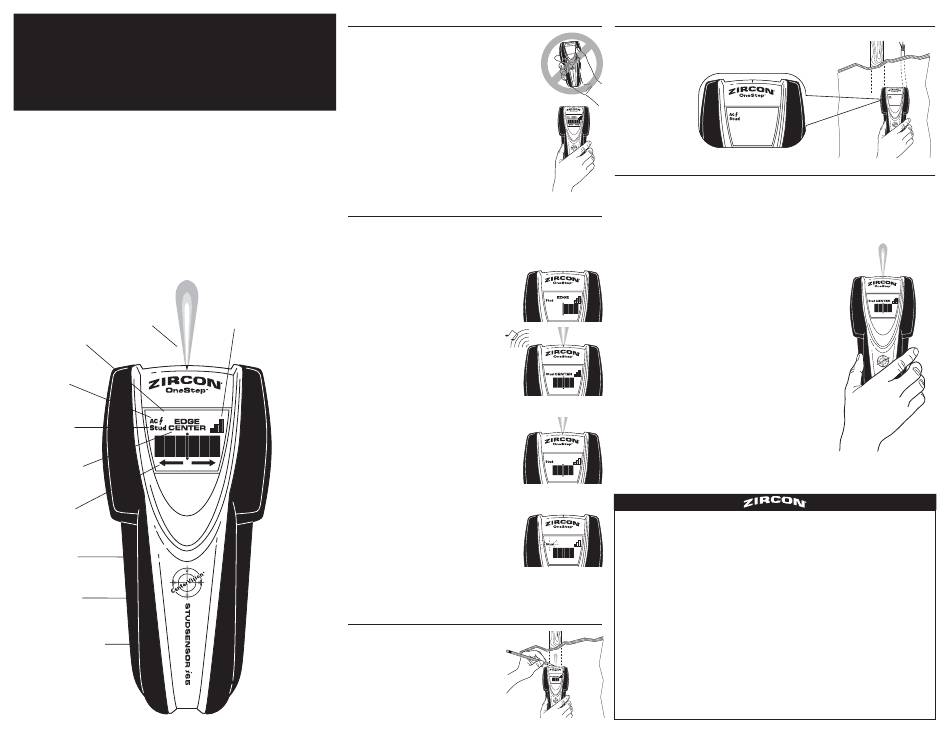

SpotLite ®
Pointing System
LCD Display
AC WireWarning ™
Indication
Stud Scan Mode
Indication
Edge or Center
Indication
Recalibration
Indication
Power Button
Running Board
Battery (back of unit)
1. OPERATING TIPS
™
Hold the tool straight up and down, parallel
to the stud. Do not rotate the tool.
™
Keep tool flat against the wall and do not
rock or tilt the tool when scanning.
2. FINDING A STUD
Always start with the scanner placed against the wall, then
press the power button. Wait for beep to confirm calibration
has completed before moving tool.
Slowly slide tool across surface. EDGE
display will illuminate, indicating
location of the stud edge.
Signal Strength
Indicator
Continue sliding tool. When the
center of stud is located with three
bars on the Signal Strength Indicator,
the buzzer will sound, and the four
middle bars, CENTER display, and
SpotLite will illuminate.
In cases of deeper studs (or thicker
walls) two bars will show on the
Signal Strength Indicator and only
the SpotLite and four middle bars will
illuminate. If you still can't locate a
stud, try the next step.
Quickly (within one second) release and
re-press the power button. The scanner
will enter the High Sensitivity Mode
and the Stud Scan Mode Indication will
flash continuously. The center of a very
deep stud will be indicated by the four
middle bars illuminating.
3. MARKING THE LOCATION
Once an object is located,
mark the location where
the SpotLite illuminates.
4. AC WIREWARNING ™
Zircon's AC WireWarning feature works continuously.
When AC voltage is detected, the AC Alert warning
icon will illuminate.
5. SCANNING DIFFERENT SURFACES
i
Wallpaper: The StudSensor 65 functions normally on walls covered with
wallpaper or fabric, unless the materials are metallic foil, contain metallic
fibers, or are still wet after application.
Note: Sensing depth and accuracy can vary due to moisture, content of
materials, wall texture, and paint.
Textured walls, acoustic ceilings, or uneven
surfaces: Place thin cardboard on the surface to
be scanned. Calibrate with the cardboard in place,
then begin scanning.
Wood flooring, subflooring, or gypsum
over plywood sheathing: Auto Depth Sensing
automatically corrects for target depth in both
normal and high sensitivity modes
FCC Part 15 Class B Registration Warning
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules.
LIMITED 1 YEAR WARRANTY to you, and further (ii) this warranty gives you specific
legal rights and you may also have other rights which
Zircon Corporation, ("Zircon") warrants this product to
vary from state to state.
be free from defects in materials and workmanship for
one year from the date of purchase. Any in-warranty Return product freight prepaid with proof of purchase
defective product returned to Zircon*, freight prepaid date (dated sales receipt) and $5.00 to cover postage
with proof of purchase date and $5.00 to cover postage and handling, to:
and handling, will be repaired or replaced at Zircon's
Zircon Corporation
option. This warranty is limited to the electronic circuitry
*Attn: Returns Department
and original case of the product and specifically excludes
1600 Dell Avenue, Unit K
damage caused by abuse, unreasonable use or neglect.
Campbell, CA 95008-6992 USA
This warranty is in lieu of all other warranties, express
Be sure to include your name and return address. Out of
or implied, and no other representations or claims of
warranty service and repair, where proof of purchase
any nature shall bind or obligate Zircon. Any implied
is not provided, shall be returned with repairs charged
warranties applicable to this product are limited to the
C.O.D. Allow 4 to 6 weeks for delivery.
one year period following its purchase. IN NO EVENT
WILL ZIRCON BE LIABLE FOR ANY SPECIAL, INCIDENTAL Customer Service, 1-800-245-9265 or 1-408-963-4550
Monday–Friday, 8:00 a.m. to 5:00 p.m. PST
OR CONSEQUENTIAL DAMAGES RESULTING FROM
POSSESSION, USE OR MALFUNCTION OF THIS PRODUCT. E-mail: info@zircon.com
In accordance with government regulations, you are
advised that: (i) some states do not allow limitations on
U.S. Patents 6259241, 6291970, Canada Patents
how long an implied warranty lasts and/or the exclusion 2341385, 2353156, Japan Patent 3581851,
or limitation of incidental or consequential damages, and Patents Pending
so the above limitations and/or exclusions may not apply
©2005 Zircon Corporation • P/N 60546 • Rev A 08/05
