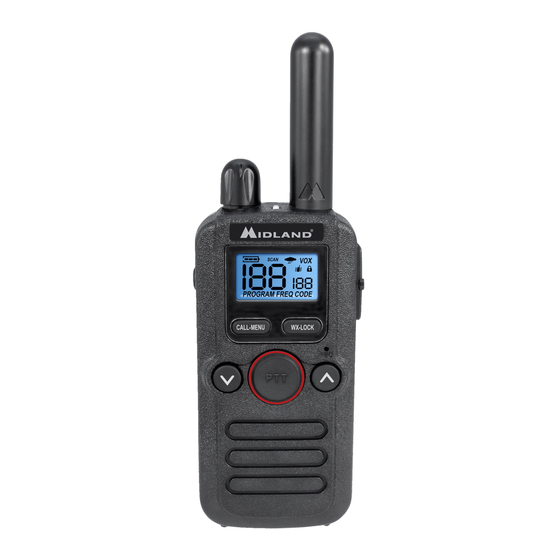

Midland BR180 Owner's Manual

On-site business radio
Hide thumbs Also See for BR180:
Table of Contents

Advertisement

Quick Links

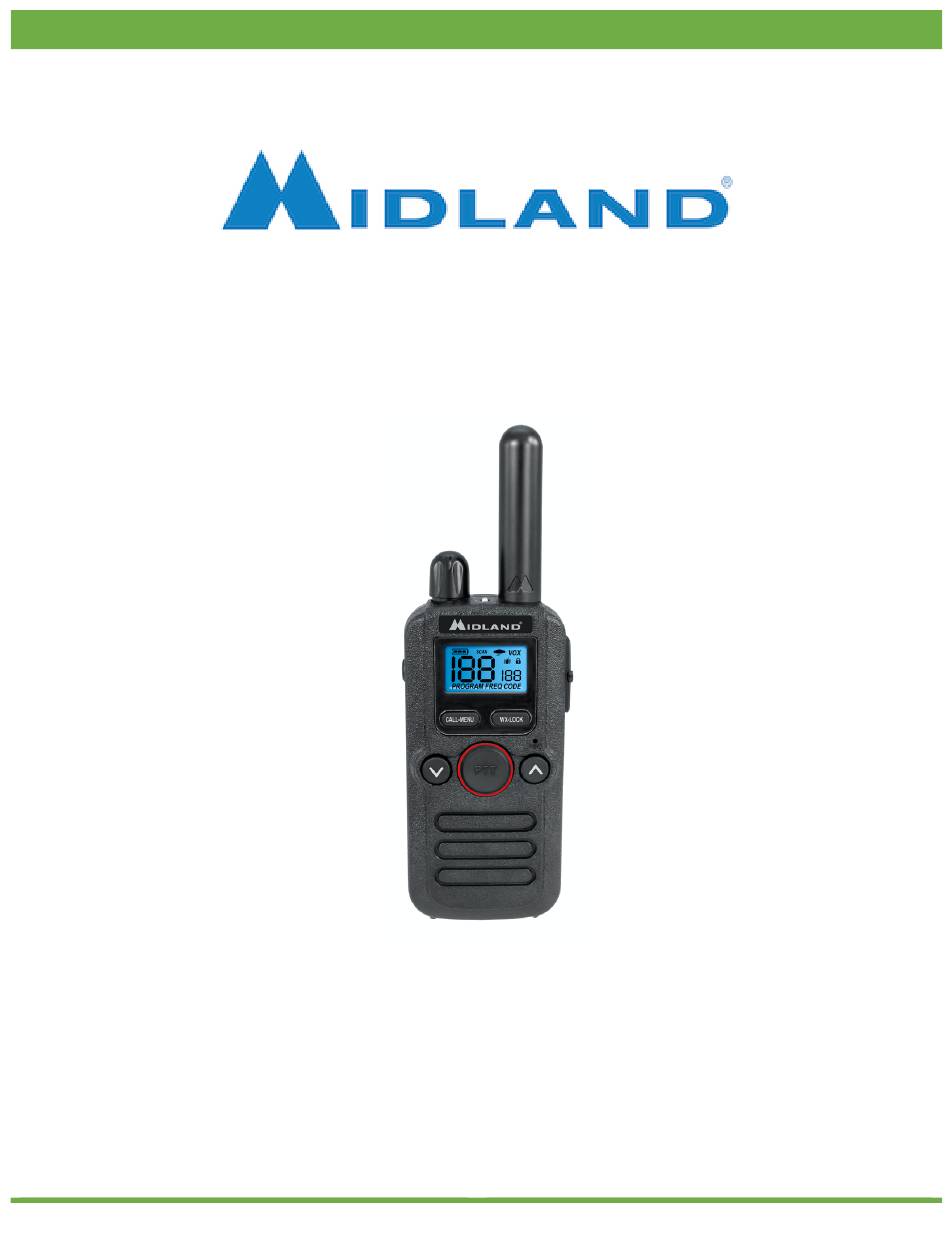

BR180 Owner's Manual
Owner's Manual
BR180
On-Site Business Radio
Version 0.4.0
March 8, 2021
Confidential
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR180 and is the answer not in the manual?

Questions and answers

Related Manuals for Midland BR180

Summary of Contents for Midland BR180

  • Page 1 BR180 Owner’s Manual Owner’s Manual BR180 On-Site Business Radio Version 0.4.0 March 8, 2021 Confidential...

  • Page 2: Table Of Contents

    BR180 Owner’s Manual Table of Contents INTRODUCTION ...........................3 FEATURES ............................3 FCC NOTICE ............................3 GETTING TO KNOW YOUR RADIO-QUICK START ................5 CONTROLS............................................5 INSTALLING THE BATTERY ....................................... 6 INSTALLING THE HOLSTER ....................................... 7 INSTALLING EXTERNAL ACCESSORIES ................................7 CHARGING THE BATTERY PACK ....................................7 USE AND CARE ..........................................8 ABOUT COVERAGE ..........................8 OPERATING YOUR RADIO .........................9 POWER ON/OFF AND VOLUME ....................................9 TRANSMITTING AND RECEIVING A CALL ................................9...

  • Page 3: Introduction

    INTRODUCTION For over half a century, Midland Radio has been providing radio communication with superior Quality, Reliability, and Strong Value. With these Core Values in mind, the Midland BR180 provides a communication solution for Restaurants, Retail, Hospitality and other Businesses.
  • Page 4 RF energy exposure only when transmitting. BODY WORN OPERATION If you wear the radio on your body when transmitting always use Midland supplied or approved belt clip, holster, case, or body harness for this product. Use of any accessories not supplied or approved by Midland may exceed FCC/ Health Canada RF exposure guidelines.

  • Page 5: Getting To Know Your Radio-Quick Start

    BR180 Owner’s Manual GETTING TO KNOW YOUR RADIO-QUICK START CONTROLS A. Antenna B. Power/Volume Turn clockwise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off. C. LED Indicator...

  • Page 6: Installing The Battery

    BR180 Owner’s Manual LCD Display A. Channel Number B. Battery Gauge C. Scan On D. Weather Alert On E. Vox On F. Vibrate On G. Keypad lock On H. Privacy Code Number I. Programming Mode INSTALLING THE BATTERY Your radio operates with a Lithium-Ion battery. Care should be taken when installing or removing the battery as not to short circuit the contacts causing damage to the battery pack.

  • Page 7: Installing The Holster

    BR180 Owner’s Manual INSTALLING THE HOLSTER With the back of the radio facing you, align the bottom of the holster with the bottom of the radio and push the top of the holster over the top of the radio until the Lock Tab snaps into place.

  • Page 8: Use And Care

    • Dry the radio with a dry lint-free cloth should it get wet. • Turn off the radio and remove the batteries during long-term Storage. ABOUT COVERAGE Your BR180 is designed to give you maximum coverage under optimum conditions. Industrial Multi-Level...

  • Page 9: Operating Your Radio

    BR180 Owner’s Manual OPERATING YOUR RADIO POWER ON/OFF AND VOLUME 1. Rotate the POWER/VOLUME knob clockwise to turn the radio on and increase the volume level. 2. Rotate the control counter-clockwise to reduce the volume level and to turn the radio off.

  • Page 10: Menu Functions

    BR180 Owner’s Manual MENU FUNCTIONS Press and hold the Menu button for 3 seconds to enter the Menu mode. Once you are in the menu, you can activate features as shown below. • Only the menu, PTT, up and down arrow buttons are active when using the menu function.

  • Page 11: Programming Your Radio

    BR180 Owner’s Manual PROGRAMMING YOUR RADIO You can eastly configure your BR180 radio by using the FREE Programming software or by using the Keypad programing outlined below for basic functions. You can transfer the entire programming from one radio to another using the Radio to Radio cloning feature.

  • Page 12: Set The Weather Channel

    BR180 Owner’s Manual SET THE WEATHER CHANNEL Follow the steps below to set the weather channel. 1. Scroll through the weather channels until you receive the strongest signal. 2. You may receive a weather broadcast on more than one channel. Check with the National weather...

  • Page 13: Radio To Radio Cloning

    BR180 Owner’s Manual RADIO TO RADIO CLONING The programed settings from a BR180 radio can be directly transferred to another BR180 radio bypassing the need to individually program radios. The BA22 cloning cable is required and is listed in the back of this manual and available on the www.midlandusa.com...

  • Page 14: Available Frequencies Chart (Channel Bank)

    BR180 Owner’s Manual AVAILABLE FREQUENCIES CHART (Channel Bank) Code Freq. (MHz) Code Freq. (MHz) Code Freq. (MHz) Code Freq. (MHz) 464 .5000 462 .8375 467 .8875 452 .7625 464 .5500 462 .8625 467 .9125 452 .8625 467 .7625 462 .8875 469 .4875...

  • Page 15: Privacy Codes

    Your BR180 radio has 142 Privacy Codes, which can be used on any channel. The selected Privacy Code may be different for each channel, but must be the same for a channel on all radios you wish to talk to.

  • Page 16: Dcs Privacy Code Chart

    BR180 Owner’s Manual DCS PRIVACY CODE CHART CODE CODE CODE CODE Confidential...

  • Page 17: Troubleshooting Guide

    2. Make sure the charger is plugged in and the outlet has power. Make sure the battery pack is installed properly. For further assistance, contact the Midland Customer Service Team at (816) 241-8500. Most problems can be remedied over the phone without returning the radio for service.

  • Page 18: Limited Warranty

    BR180 Owner’s Manual LIMITED WARRANTY Midland Radio Corporation will repair or replace, at its option without charge, any Midland UHF transceiver which fails due to a defect in material or workmanship within Two Years following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse. Accessories have a one year warranty from date of purchase, including any antennas, batteries, chargers, or headsets/earphones.

  • Page 19: Accessories

    BR180 Owner’s Manual ACCESSORIES Accessories can be purchased from your local dealer or at www.midlandusa.com BATT18L Li-Ion Spare Battery Holster $29.99 $19.99 BA 2 BA 3 Over the Ear Concealed Headset Headset $29.99 $39.99 Speaker D-Ring Headset Microphone $29.99 $39.99...
  • Page 20 BR180 Owner’s Manual 5900 Parretta Drive Kansas City, MO 64120 Call 816-241-8500 We’d love to hear from you! Let us know what you think of your new Midland product at; or by visiting us at midlandusa.com Confidential...
