Midland PRO902 Manual

Heavy duty uhf cb/lmr with remote speaker mic
Hide thumbs

Advertisement

Quick Links

PRO902
*5 year standard warranty.
HEAVY DUTY UHF CB/LMR
To claim bonus 2 year warranty visit
www.midlandaustralia.com.au
with REMOTE SPEAKER MIC
to register your product.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO902 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midland PRO902

Summary of Contents for Midland PRO902

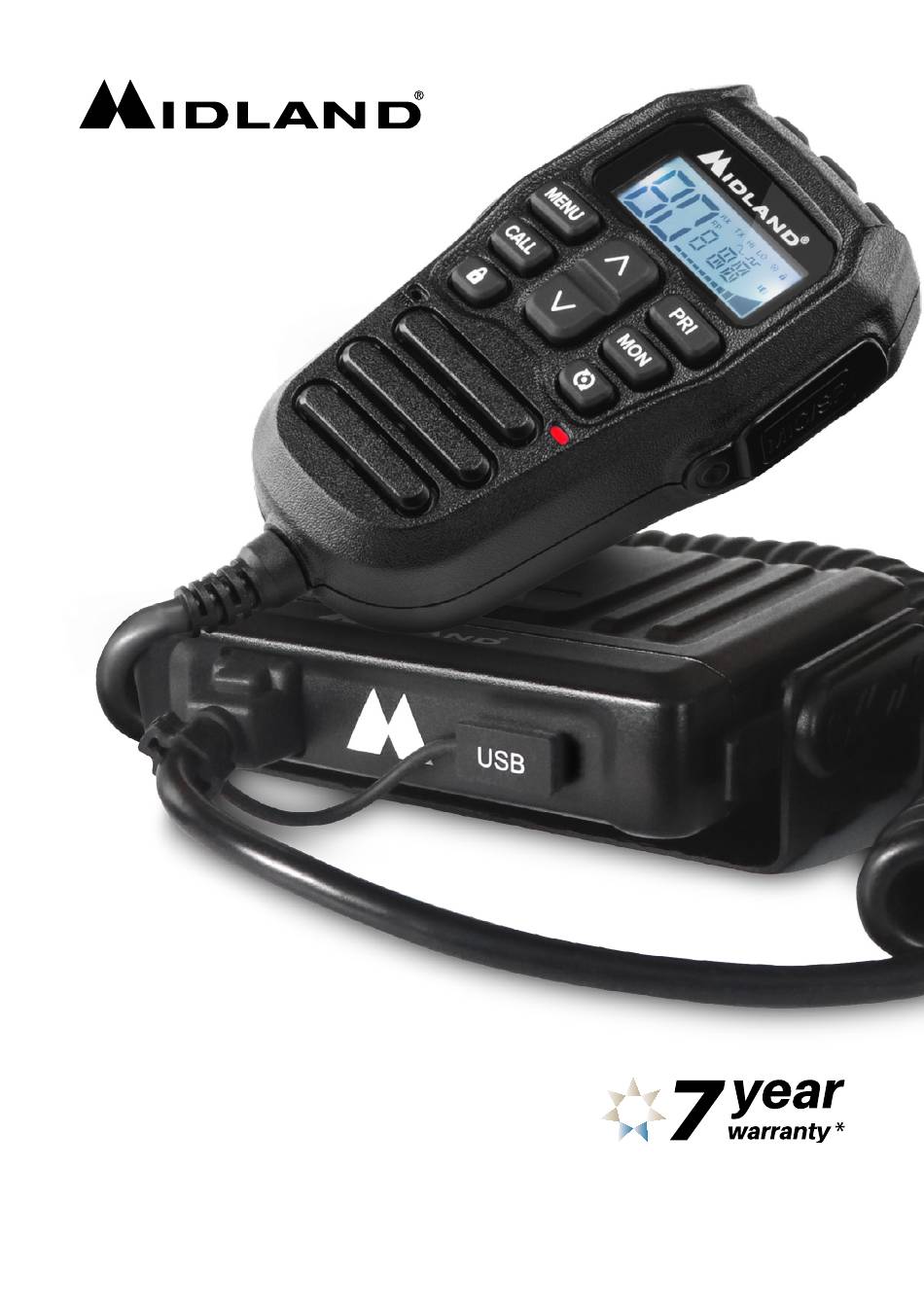

  • Page 1 PRO902 *5 year standard warranty. HEAVY DUTY UHF CB/LMR To claim bonus 2 year warranty visit www.midlandaustralia.com.au with REMOTE SPEAKER MIC to register your product.

  • Page 2: Table Of Contents

    CONTENTS 1. Specifications ................................2 2. Introduction ................................3 3. What’s Included .................................4 4. Emergency/Telecommand Channels ......................4 5. Features ..................................5 6. General Operation ..............................6 7. Appendix: Frequency/CTCSS/DCS List ......................14 8. Warranty ..................................16 Specifications: - Output Power: 5 Watts (CB), 15 Watt (LMR) - CB Channels: 2 Banks: 80(CB), 19 (LMR - Dealer Programmable) - CB Frequency Range:...

  • Page 3: Introduction

    Please read this manual carefully to understand its functions and operations. The PRO902 you purchased is an advanced UHF in-vehicle two way radio. PRO902 combines the very latest in electronic hardware with the most up-to date computer aided design and manufacturing techniques to produce an extremely compact mobile radio with outstanding specifications and performance.

  • Page 4: What's Included

    Channels 61, 62 and 63 are for future use and TX is inhibited on these channels. Commercial UHF-LMR The PRO902 features hybrid funcionality allowing high power (13-17 Watt) use on UHF- LMR commercial frequencies. Please note that according to ACMA regulations this is only permissable for authorised commercial license holders.

  • Page 5: Features

    Features: Microprocessor Controlled Frequency Synthesiser Allows user programmable control of scanning, channel memories and selected options. Scanning Function Quickly finds radio channels. Individually Programmable DUPLEX Function Selectable only for individual channels in areas that can access a repeater. This leaves others free for use as simplex channels.

  • Page 6: General Operation

    General Operation: 1. LCD 2. Mic/Programming Socket 3. Menu 4. Call 5. Function Select 6. Key Lock 7. Mic 8. Priority Channel 9. Monitor 10. Scan 11. T/R LED 12. Speaker 13. Channel Down 14. Power 15. Channel Up 16. PTT (Press to talk) 17.
  • Page 7 When the transmission ends the channel becomes quiet again. Transmissions that do not use the correct tone will not to be heard. There are two tone sets installed in your PRO902 comprising 50 CTCSS and 104 DCS user-selectable tones.
  • Page 8 CTCSS or DCS tones you will need to select the tone that matches theirs. The PRO902 includes most of the commonly used tone sets. If the users you talk to don’t currently use CTCSS or DCS, choose your own tones.
  • Page 9 Squelch control is used to eliminate the background noise when there are no signals present. The PRO902 features a preset Squelch system. The Squelch sensitivity has been factory set to provide optimum performance in most environments. The sensitivity can be altered by the user if required to suit varying environmental situations.
  • Page 10 Duplex Operation Press and hold the MENU key on channels 1-8 and channels 41-48 to enable the Duplex operation.Duplex operation allows the radio to transmit on a different frequency to that which it receives allowing operation through repeater stations. Repeaters automatically retransmit your signal over a wider area providing greatly increased range.
  • Page 11 Scanning PRO902 has a SCAN function that allows a selection of user programmable channels to be scanned for signals. Channels are scanned at 4 channels per second. When a signal is found, scanning will pause on that channel to allow the signal to be heard. Scanning will resume when the channel is clear again.
  • Page 12 Reset Function When the radio is off, press PTT+PRI+POWER at the same time. During resetting, the software version number (current version number is 4A) will be displayed. After reset, the radio will be in the default setting. Default Setting Table. Roger Beep CTCSS/CDCSS Volume...
  • Page 13 High/Low Power Selecting (In Power OFF Mode) Change Hi/Lo power mode by pressing PTT+CALL+MENU+POWER at the same time (For bank2, bank1 is locked in low power mode). High Power, LCD displays Hi. Low Power, LCD displays Lo. Roger Beep 1. Briefly press the menu key to enter the menu. 2.

  • Page 14: Appendix: Frequency/Ctcss/Dcs List

    Appendix: Two way radio frequency list Appendix: Appendix: Two way radio frequency list Two Way Radio Frequency List Simplex Mode Duplex Mode Simplex Mode Simplex Mode Duplex Mode Simplex Mode Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz) Simplex Mode Duplex Mode...
  • Page 15 Appendix: 104 groups of DCS Frequencies 104 Groups of DCS Frequencies Dismantling and assembly drawings Dismantling and Assembly Drawings (A) The whole chart (A) The Whole Chart (B) Bracket assembly diagram Fixed bracket with 3 3 * 8 self tapping screws in the right position.

  • Page 16: Warranty

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: PRO902 Model Number: Serial Number: Dealer Name: Date of Purchase:...
