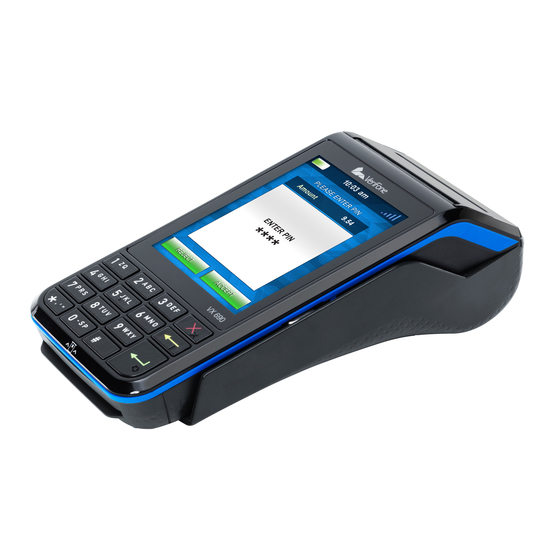

VeriFone VX690 3G-BT-WiFi Quick Start Manual

Electrical
Power Packs
Before you connect the terminal power pack to an electrical outlet, check that the on/off power switch on the terminal is off. If the terminal does not have an on/off switch, check that the power cable
connector is removed from the terminal's power port. Or, when connecting the terminal to a power pack, always connect the plug of the power pack to an electrical wall outlet first. Then connect the power
cable to the terminal's power port. The power pack is rated as follows:
• Input Voltage: 100 - 240V AC, 50/60 Hz
• Output Voltage: 5V DC, 2.2A
Model VX690 3G-BT-WiFi is intended to be provided with a listed power supply module having an output rating of 5V DC, minimum 2.2A and evaluated as a Limited Power Source or PS2 or equivalent.
AC Adapter
The AC adapter is designed to ensure your personal safety and to be compatible with this equipment. Please follow these guidelines:
• Do not use the adapter in a high moisture environment. Never touch the adapter when your hands or feet are wet.
• Allow adequate ventilation around the adapter. Avoid locations with restricted airflow.
• Connect the adapter to a proper power source. The voltage and grounding requirements are found on the product case and/or packaging.
• Do not use the adapter if the cord is damaged.
• Do not attempt to service the adapter. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture.
Separate Power Sources
Some peripherals require a separate power source. Before connecting a check reader or similar device, remove the power cable connector from the terminal's power port.
Peripherals
Before connecting any peripheral device, turn off power to the terminal and check that the power cable connector is removed from the terminal's power port. Turn on power only after you are finished
connecting the peripheral device(s). For complete information about peripheral installation and use, please refer to the user documentation supplied with those devices.
Disconnecting Power
Disconnecting power during a transaction may cause transaction data files that are not yet stored in terminal memory to be lost.
Location – Electrical Considerations
CAUTION: Due to the risk of electric shock or damage to the terminal, do not use this equipment near a water source, for example near a bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool. Likewise, avoid using this product during thunderstorms causing power cuts. Avoid placing the terminal near electrical devices or other units that could
cause large voltage fluctuations or electrical interference, such as air conditioners, neon signs, high frequency safety devices or electrical equipment.
ATTENTION: Du fait d'un risque d'électrocution ou d'une détérioration du terminal, ne pas utiliser cet équipement près d'une source d'eau, par exemple près d'une baignoire, d'un lavabo, d'un évier de
cuisine ou d'un bac de lavage, dans un sous-sol humide ou à proximité d'une piscine. De même, éviter d'utiliser ce produit lors des orages provoquant des coupures électriques. Éviter de
placer le terminal à proximité d'appareils électriques ou autres unités pouvant entraîner des fluctuations de tension importantes ou des interférences électriques, tels que les climatiseurs,
enseignes au néon, dispositifs de sécurité à haute fréquence ou équipements électriques.
Equipment
Repairs
Do not, under any circumstances, attempt any service, adjustments, or repairs on this equipment. Instead, contact your local Verifone distributor or service provider for assistance. Failure to comply may
void the product warranty.
Location – Environmental Considerations
This device is for indoor use only. Do not plug the power pack into an outdoor outlet or operate the terminal outdoors. It is not waterproof or dustproof, and is for indoor use only. Any damage to the unit from
exposure to rain or dust may void your warranty.
Do not use the terminal where there is high heat, dust, humidity, moisture, or caustic chemicals or oils. Keep the terminal away from direct sunlight and anything that radiates heat, such as a stove or a
motor.
WARNING! Your POS Terminal contains sensitive electronic components that can be permanently damaged if exposed to excessive shock or vibration. To minimize the risk of damage to your terminal,
avoid dropping your terminal and operating it in high-shock and high-vibration environments. Do not store the terminal where prolonged exposure to extreme temperature can occur,
because it can cause permanent damage. Do not expose the terminal to water. Contact with water can cause this unit to malfunction.
AVERTISSEMENT! Votre terminal de point de vente contient des composants électroniques sensibles, susceptibles de subir des dommages définitifs en cas d'exposition à des chocs ou à des vibrations
excessives. Pour minimiser le risque de dommages pour votre terminal, éviter de le faire tomber ou de l'exposer à des environnements pouvant provoquer des chocs et des vibrations
excessives. Ne pas stocker le terminal dans des lieux susceptibles d'entraîner une exposition prolongée à des températures extrêmes, du fait des dommages définitifs que cette situation
peut provoquer. Ne pas exposer le terminal à l'eau. Un contact avec de l'eau peut provoquer un dysfonctionnement de l'unité.
Battery Pack Instructions
Dispose of the battery pack in accordance with all national, state, and local laws and regulations as regionally required. Some batteries may be recycled and may be accepted for disposal at local recycling
centers.
CAUTION: CAUTION: There is risk of explosion if the battery is replaced by an incorrect type.
ATTENTION: Il existe un risque d'explosion si la batterie est remplacée par un modèle incompatible.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
• Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.
The highest specified charging temperature of battery pack is 50+/-3°C.
The lowest specified charging temperature of battery pack is 0+/-3°C.
Notice for WLAN
For CE WLAN: 5150-5350 MHz
This device is restricted for indoor usage in all member states when operating in the 5150 to 5350 MHz frequency range.
AT BE BG
FI FR DE
LT LU MT
SI ES SE
TR
For ISED:
(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
(ii) Where applicable, antenna type(s), antenna models(s) and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly
indicated.
Avertissement:
(i) Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux.
(ii) Lorsqu'il y a lieu, les types d'antennes (s'il y en a plusieurs), les numéros de modèle de l'antenne et les pires angles d'inclinaison nécessaires pour rester conforme à l'exigence de la p.i.r.e. applicable
au masque d'élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués.
VX690 3G-BT-WiFi Certifications and Regulations
Verifone Part Number: DOC260-016-EN-C, Revision C03
© 2021 Verifone, Inc. All rights reserved.
This equipment may be operated in:
HR CY CZ DK EE
EL HU IE IT LV
NL PL PT RO SK
UK(NI) IS LI NO CH
*DOC260-016-EN-C*
VX690 3G-BT-WiFi Certifications and Regulations
Verifone, Inc.
1-800-Verifone FCC/ISED Compliance
The following device has been tested and certified as compliant with the regulations and guidelines detailed below:
www.verifone.com
Manufacturer: Verifone, Inc.
Brand: Verifone
Model: VX690 3G-BT-WiFi
Part 15 of FCC and ISED Rules
This device complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules and Innovation, Science and Economic Development Canada license exempt RSS standard(s) which
provide reasonable protection against harmful interference in a residential area. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy. And if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. In the unlikely event that there is interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Use of a shielded interface cable is required to comply with the Class B limits of Part
15 of FCC Rules. Any changes or modifications to this equipment not expressly approved by Verifone could void the user's authority to operate this equipment.
NOTE: The country code selection is for non-US models only. And it is not available to all US models. Per FCC regulation, all Wi-Fi product market in US must be fixed to US operation channels only.
Le présent appareil est conforme aux CNR d'Innovation, Science and Economic Development Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes:
(1) L'appareil ne doit pas produire de brouillage.
(2) L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.
La fonction de sélection de l'indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au USA/Canada.
This Class B digital apparatus complies with CAN ICES-003 (B).
Cet appareil numérique de la classe B est conforme à la norme NMB-003 (B) du Canada.
RF Exposure
USA
The product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction
can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. The SAR limit set by the FCC is 1.6W/kg for body worn
SAR. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. This device has
been tested and meets the FCC RF exposure guidelines be positioned a minimum of 0 cm from the body.
This device complies with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement methods and procedures specified
in IEEE 1528-2013.
CE
This device complies with the Radio Equipment Directive (2014/53/EU) issued by the Commission of the European Community.
A minimum separation distance of 0 cm must be maintained between the user's body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in
Europe. To compliance with RF Exposure requirements in Europe, third-party belt-clips, holsters or similar accessories used by this device should not contain any metallic components. The use of
accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided.
ISED
The product complies with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur
ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.
Brazil Warning Statement
This equipment is not subject to protection from harmful interference and may not cause interference with duly authorized systems.
Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados.
Notice for Operating Frequency and Output Power
NFC (dB μA/m at 10m), 13.56 MHz: 6.64
2.4G WLAN (b/g/n): 2400-2483.5MHz (EIRP dBm) <20
5G WLAN (a/n): 5150-5250/5250-5350/5470-5725 MHz (EIRP dBm) <20
BT-EDR/LE (EIRP dBm) <10
2G (dBm): GSM900:<33; GSM1800:<30
3G (dBm): BandI:<24; Band VIII:<24
Operating Temperature
The product is designed to work in maximum ambient temperature 0°C and 50°C.
Recycling: DO NOT DISCARD!
UNIT MUST BE RECYCLED OR DISPOSED OF PROPERLY.
For proper disposal instructions go to http://recycle.verifone.com/
continued on rear cover
Recyclage: NE PAS JETER!
L'unité doit être recyclée ou mise au rebut dans les endroits prévus à cet effet.
Pour connaître les procédures de mise au rebut, consultez le site http://recycle.verifone.com/
suite au verso
Please retain this sheet for future reference.
À conserver pour référence ultérieure.
