Summary of Contents for FFS Brands VI014HHC

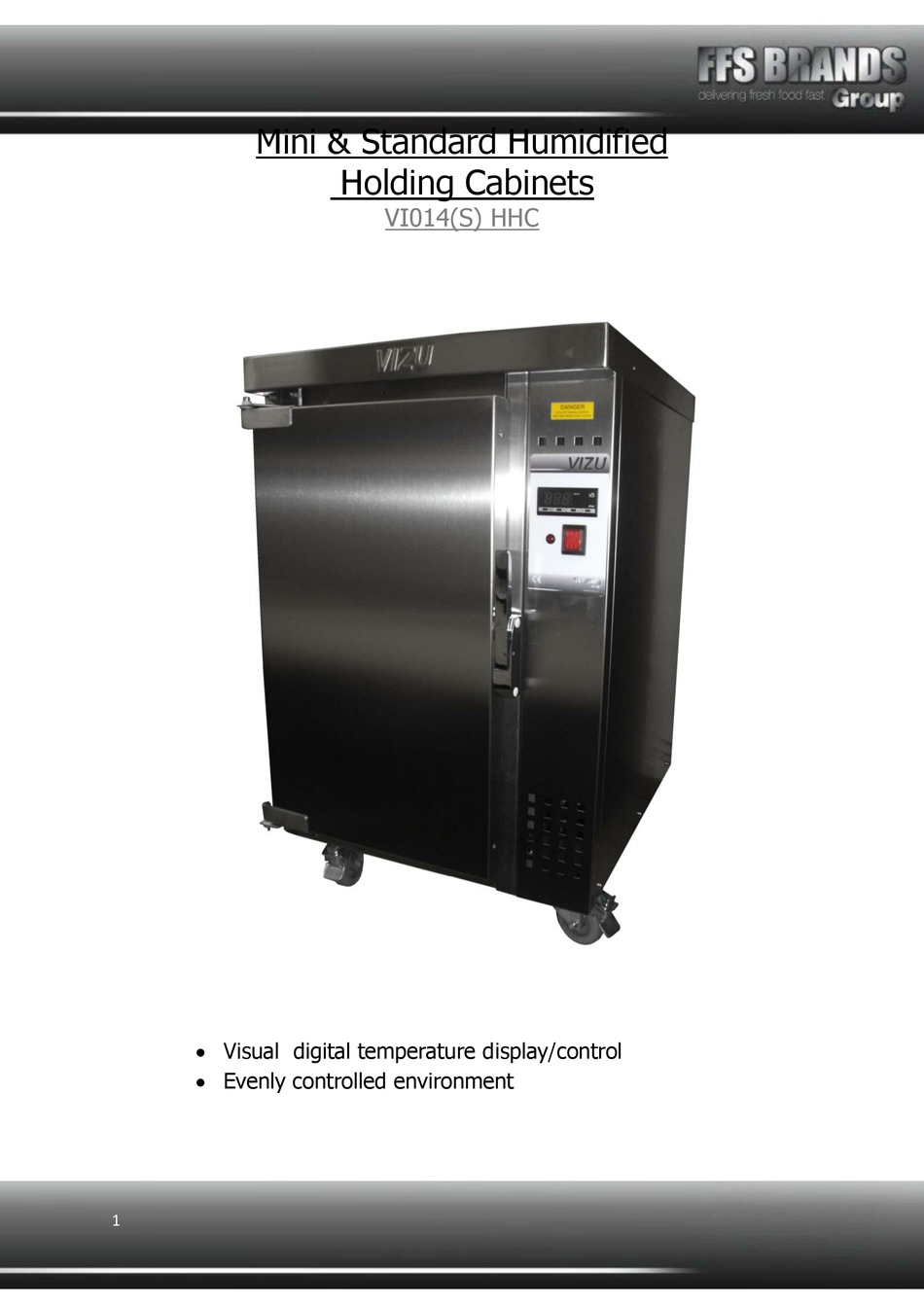

- Page 1 Mini & Standard Humidified Holding Cabinets VI014(S) HHC Visual digital temperature display/control Evenly controlled environment...
- Page 2 VI014HHC Specification Page 525.000 645.000 538.3 SIDE VIEW REAR VIEW FRONT VIEW Dimensions Machine (STANDARD) Height 1035mm Width 550mm Depth 655mm Weight 66kg Electrical 1 phase, 50Hz AC, 230v, 0.9kw Running Amps 3.9 Amps Connection 2m BESCHUKO Euro cable with,...
- Page 3 VI014SHHC Specification Page Dimensions Machine (MINI) Height 865mm Width 550mm Depth 655mm Weight 59kg Electrical 1 phase, 50Hz AC, 230v, 0.9Kw Running Amps 3.9 Amps Connection 2m BESCHUKO Euro cable Type with, MFEUROCONVERT Euro to UK converter plug International...
- Page 4 All Vizu Humidified Holding Cabinets have been tested and checked for proper operation before leaving the factory. Upon delivery please check the unit for damage. If the unit is damaged, contact the carrier, or Fast Food Systems, immediately and file a damage claim (found in the back of the manual) Please retain all packing materials.
- Page 5 Operating Instructions FOR SAFE HOT FOOD HOLDING NEVER ALLOW FOOD TEMPERATURES TO DROP BELOW 65°C. The red switch light should always remain on as long as the cabinet is plugged in. For uncovered foods, fill the water tray (situated in the base of the cabinet) with 1 inch (2.5cm) of hot water.
- Page 6 Cleaning instructions Keep the unit clean by simply wiping the interior and exterior as necessary with a damp cloth or sponge and a mild soapy solution. NEVER use abrasives, acids or strong cleaners. DO NOT flood or allow electrical parts to become wet. The interior racks, water tray and element cover are removable for ease of cleaning.
- Page 7 The runner assembly can now be lifted away from the inner side of the machine, Fig 3. Fig.4 shows the inside of the machine with the runner assembly removed. The water tray used in the humidified holding cabinets consists of a tray with a cover plate. Fig.
-
Page 8: Spare Parts Listing
Spare Parts Listing PART NO. DESCRIPTION QTY. IMAGE MF2701060286A Electric Motor And Scroll Fan MFDP2074-13 Latch And Strike Complete Set MF08-10-11 Nylon Pivot Bushes 1092540000Vr MF817-8877 Black Nylon 66, strain relief cable bush MFCOMMON1 Label 5 140mm x 53mm BESCHUKO H05Rr-F 2Mtr. - Page 9 PART NO. DESCRIPTION QTY. IMAGE MF354Z 2 Pole 5amp term block TB06 MFOHSL01 High temperature sleeving MF376-925 Relay 65-31 Holda / HD4 691-2124 Zsp-No MFVC-14 Socket drive Sh/MSM4GY1011SS0100 VI06-378 Door Seal Vizu Holda MFMKLJS75PTEK80 Swivel Castor With Break 75mm MFMKLS75PTEK80 Swivel Castor No Break 75mm MF374-1029 10mm low profile lens indicator 230VAC...
-
Page 10: Wiring Diagram
Wiring Diagram... - Page 11 Air Flow Reference Image Internal Air flow is controlled by a centrifugal fan mounted at the bottom of the machine. Diagram shows correct air flow for MF2701060286A Fan.
-
Page 12: Fault Finding
Fault Finding Any servicing must only be carried out by qualified personnel. Unit must be removed from electrical supply before servicing. Problem Probable Cause Solution 1. Indicated No power to machine. Check machine is plugged in and switched on. ON/OFF switch Check fuse in 13a plug. -
Page 13: Terms And Conditions
Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch. - Page 14 Damage claim form Machine: MINI/STANDARD HUMIDIFIED HOLDING CABINETS Product code: VI014SHHC & VI014HHC Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… ………………………… Please indicate on the picture where the unit is damaged Courier name………………………………………………………………… Fast Food Systems...
-
Page 15: Warranty
Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Accepting where otherwise specified all products are subject to 12 months parts and labour warranty. Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period. - Page 16 Machine serial number…………………… Inspection ID …………………………… Date of Manufacture ……/………/……… Commissioning date……/………/…… Model Number……………………………… Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com ISSUE 11: 12.11.18...
