FFS Brands EQVIBATCHT Manual

Batch toaster
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

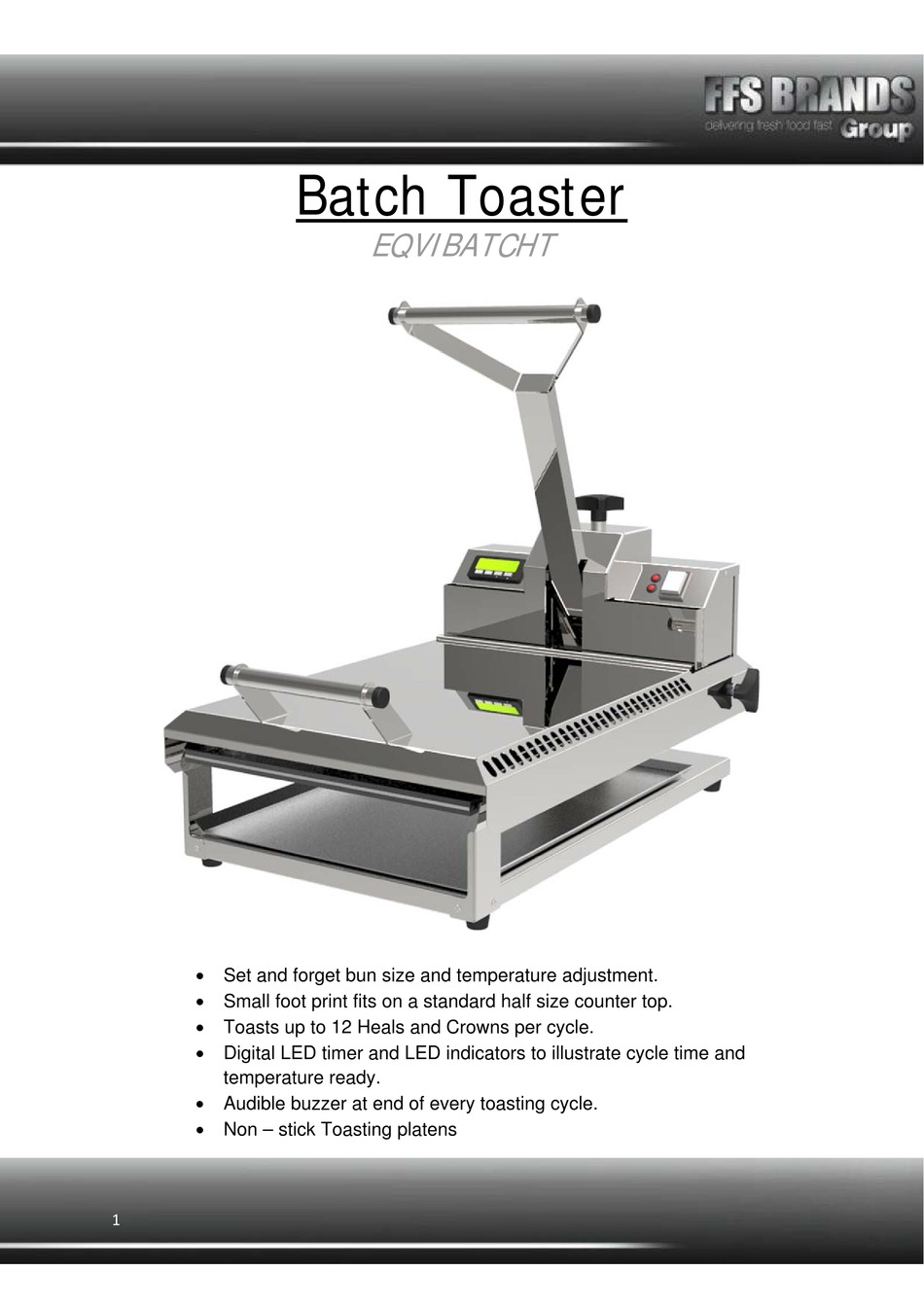

 Set and forget bun size and temperature adjustment.
 Small foot print fits on a standard half size counter top.
 Toasts up to 12 Heals and Crowns per cycle.
 Digital LED timer and LED indicators to illustrate cycle time and
temperature ready.
 Audible buzzer at end of every toasting cycle.
 Non – stick Toasting platens
1

Batch Toaster
EQVIBATCHT


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQVIBATCHT and is the answer not in the manual?

Questions and answers

Related Manuals for FFS Brands EQVIBATCHT

Summary of Contents for FFS Brands EQVIBATCHT

  • Page 1   Batch Toaster EQVIBATCHT  Set and forget bun size and temperature adjustment.  Small foot print fits on a standard half size counter top.  Toasts up to 12 Heals and Crowns per cycle.  Digital LED timer and LED indicators to illustrate cycle time and temperature ready.
  • Page 2   BATCH TOASTER SPECIFICATION PAGE Dimensions Machine Height 342mm Width 436mm Depth 583mm Weight 20kg Electrical 1 phase, 50Hz AC, 230v, 2.5Kw Running Amps 11 Amps Connection Type BSCHUKO 2/3 PIN PLUG International 2     ...

  • Page 3: General Description

      Your “VIZU BATCH TOASTER” has been tested and checked for proper operation before leaving the factory. Upon delivery please check the unit for damage, unpack the box ensuing that you retain all packaging until you are satisfied that the unit is working order and complete with all accessories.
  • Page 4   6. The Temperature Red LED will illuminate, when it is off the toaster is at the desired temperature. 7. The time cycle is set at the factory default of 45 seconds. This will illuminate when Red Rocker switch is “On” 8.

  • Page 5: Platen Adjustment

      PLATEN ADJUSTMENT: 1. Lock the toaster in the cooking position. 2. Unlock the adjustable mechanism by rotating the locking wheel. 5     ...
  • Page 6   3. Rotate the black knob up or down until the platen and cooking surface are the desired distance apart. 4. Retighten the locking wheel to lock the adjustable mechanism into position.   6     ...

  • Page 7: Cleaning Instructions

      CLEANING INSTRUCTIONS 1. Switch off the toaster and remove electrical cord from the wall supply and allow the unit to cool. 2. Once cool remove the top cover, spatula and tray. Wash in hot soapy water and dry thoroughly. 3.

  • Page 8: Wiring Diagram

      WIRING DIAGRAM                                           8     ...

  • Page 9: Spare Parts List

      SPARE PARTS LIST Part Code Description Illustration 8MM FLANGED OILITE MF OBF081206 BUSH MF ROC003 ROLLER CATCH MFVC27 M6 LINKAGE BUSH MF DOC011 M6 ROLLER STUD MFTIMER DIGITAL TIMER MECHANICAL MF 5513069500 THERMOSTAT VISW17 RED SWITCH 9     ...
  • Page 10   Part Code Description Illustration VILE14 SWITCH MEMBRANE MF374-1029 LED INDICATOR MF617-3031 BUZZER MF456-4659 ROLLER MICRO SWITCH NCXXSSRC SOLID STATE RELAY MFMOQB6 BLUE DIAL MFMICAELEMEN MICA ELEMENT MFFASTFEET RUBBER FEET   10     ...

  • Page 11: Fault Finding

        FAULT FINDING Any servicing must only be carried out by qualified personnel. Unit must be removed from electrical supply before servicing. Problem Probable Cause Solution   1. Red LED Power indicator is Wall socket switched Switch ON. not illuminated.
  • Page 12   EQVIBATCHT EXPLODED 12     ...
  • Page 13   Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch.
  • Page 14   Damage claim form Machine: BATCH TOASTER Product code: EQVIBATCHT Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ………………… Please indicate on the picture where the unit is damaged Courier name………………………………………………………………… Please cut this page out and post to Fast Food Systems (The address is on the back of this manual) 14 ...
  • Page 15   Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Excepting where otherwise specified all products are subject to 12 months parts and labour warranty. Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period.
  • Page 16   Machine serial number…………………… Inspection ID …………………………… Date of Manufacture ……/………/……… Commissioning date……/………/…… Model Number………………………………   Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com ISSUE: 14/FEBRUARY/2014...
