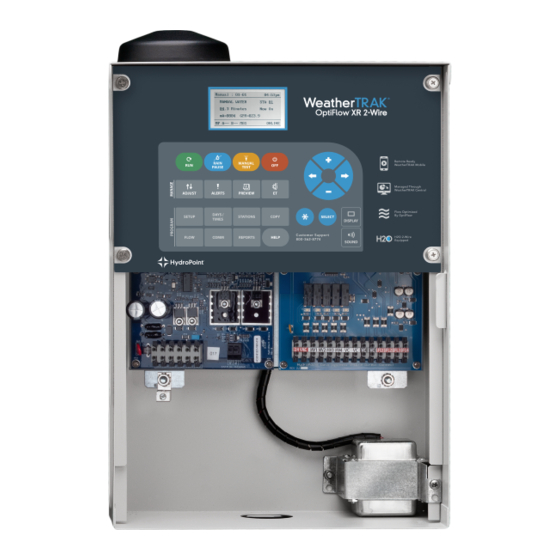

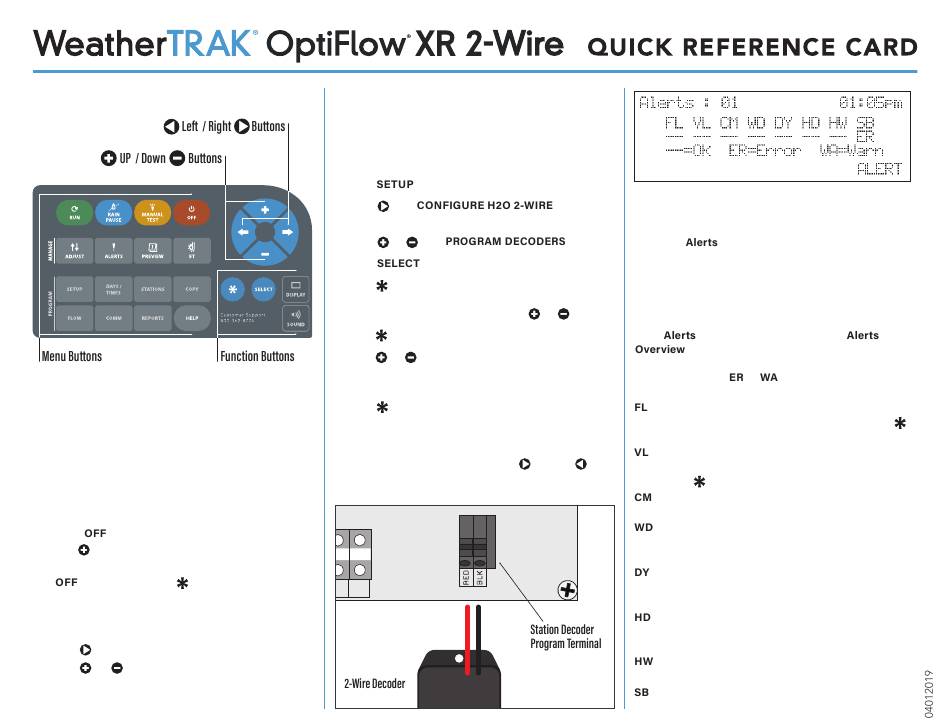

WeatherTRAK OptiFlow XR 2-Wire Quick Reference Card

TOUCHPAD
BASIC TASKS
ACTIVATE
Access this controller from WeatherTRAK.net or
WeatherTRAK Mobile.
• Call Customer Support at: 800.362.8774
• Fill out the activation form at: hydropoint.com/activate
SET CONTROLLER MODE
Controller On/Off, Shutdown, or Winterized
• Press button
• Use button to select desired function
• To clear Shutdown or Winterized, press
Button, then press to reset the status
UNLOCK CONTROLLER
Use "Unlock" feature on WeatherTRAK Mobile or
Press RUN button from controller.
• Use button to go to unlock screen
• Use or button to enter code from
WeatherTRAK.net, or WeatherTRAK Mobile
ASSIGNING THE DECODER TO A STATION
Note: For a dual valve decoder, the stations will
be sequential.
1. Plug the decoder into the terminal located on the
mini-chassis board (figure 1)
2. Press
3. Press until
(screen 15)
4. Press or until
5. Press
6. Press . The controller reads the decoder and
assigns it to the next station in sequence. If you need
to change the station number, press
7. Press to assign the decoder to the station shown
8. Press or to set the power level. Power levels for
each station can be adjusted independently. Note
that the power level defaults to Low
9. Press to configure the decoder
10. Label the decoder then unplug it from the Station
Program terminal
11. To assign the next decoder, press
RED BLK RED BLK RED BLK
displays
displays
or
. To exit
STATION PROGRAM
ALERT MANAGEMENT
MOBILE APP
Go to the tab on the Controller Settings page.
WEB
Use Alerts Page, or Multi-Controller Alert Report from
weathertrak.net.
CONTROLLER
While at the controller, use the following process:
Press Button. The first screen is the
showing any alert or warning that exists
on your controller. Each two letter code is an
Alert Category. An or appear beneath any
category that has an alert present.
: Flow Alerts — Issue with flow hardware or flow
feature programming. Fix the issue, then press
button to clear alert then retest
Valve Alerts — Issue with valve electrical
:
components or connections. Fix the issue, then
press button to clear alert then retest
Communication Alerts — Reset GPRS Status or
:
call Customer Service for assistance
: Water Window Warning — Calculated irrigation
schedule exceeds the allowable irrigation time
programmed Water Window
Water Day Warning — Calculated irrigation
:
schedule exceeds number of allowable Water Days
programmed in Water Day Mode
Station High Depletion — Reset Station
:
Depletion from Manage Page of weathertrak.net or
from Help menu — "Help : 12 — Current Depletion"
: Hardware Alert — Issue with controller hardware.
Call Customer Service for assistance
Subscription Alert — Call Customer Service to
:
update data service plan
