WeatherTRAK ET Pro 2 Series Manual/Quick Reference Manual

WeatherTRAK ET Pro
2
1.0 Activation or Help
Call Customer Service at 1-800-362-8774
The controller must be activated to receive daily ET information
(local weather information). To speed up activation, complete the
Activation card included with the manuals and other documentation
before calling Customer Service.
CONTROLLER MUST BE ACTIVATED to use AUTOMATED BY
WEATHERTRAK or USER WITH ET.
full programming instructions at www.weathertrak.com/support.
2.0 Programming
Setup

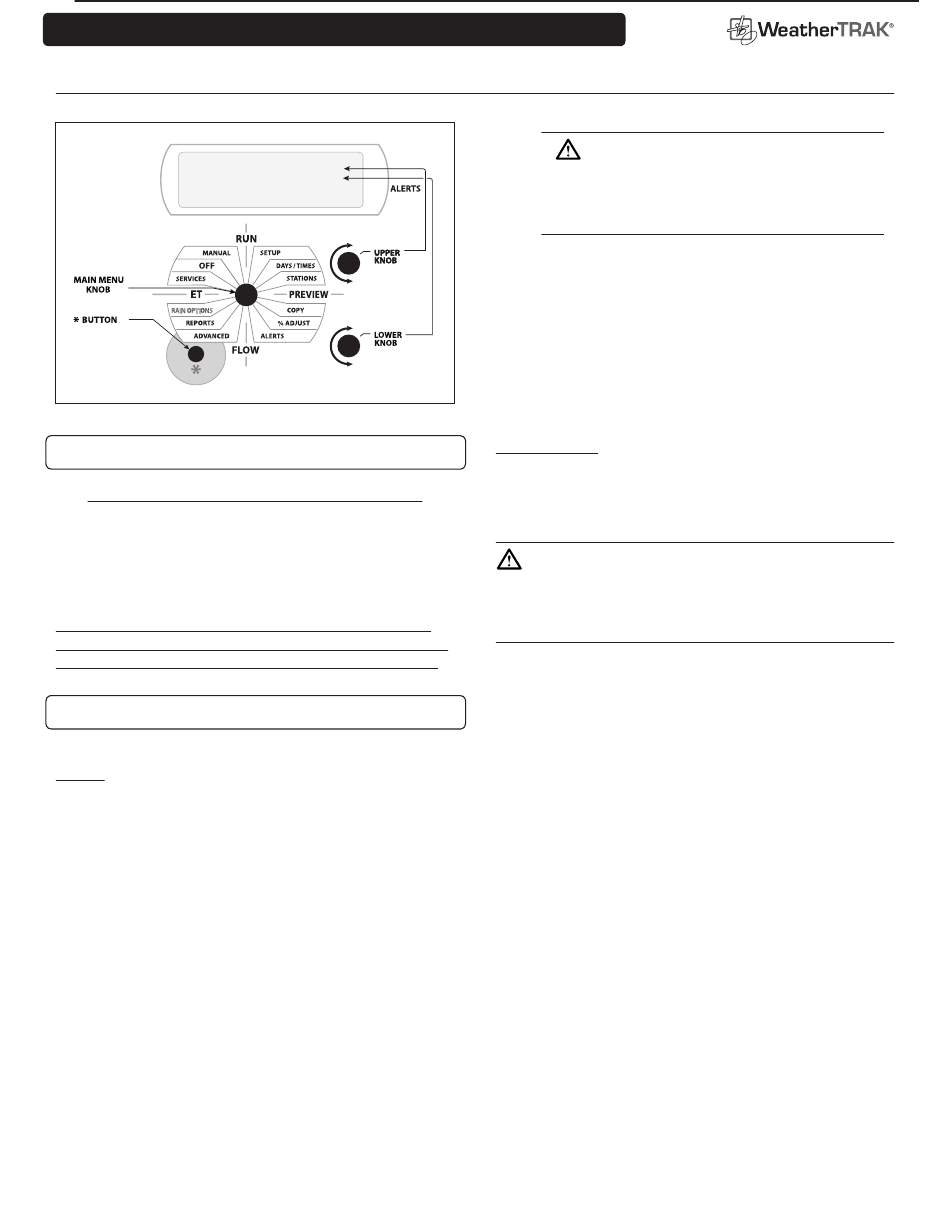

2.1 The following Setup functions must be setup for the control-
ler to operate properly. Turn the (M) knob to SETUP. Use the (U)
knob to move to each function. Turn the (L) knob to change the
underlined value.
Date: Year, Month, Day
Time: Hour (confirm am or pm), minutes
Time Zone: Select your local time zone
Auto Daylight Savings: Automatically updates controller
twice a year, unless you turn to "No. "
Maximum Active Stations: Number of stations physically
wired into the controller.
Stack or Overlap: When Stack is selected, all programs operate
one after another. The start time and water window for all
programs is assigned to Program A. When Overlap is selected,
each program can have its own start time and water window.
See Chapter 9 in the Owners Guide for more detail.
2.2 The following SETUP functions are optional:
Master Valve: Select the type of Master Valve if used.
© 2009 HydroPoint Data Systems, Inc. All rights reserved. WTETP2QR0709
Series Quick Reference Guide
See Owner's Manual online for
Note: It is important to select None if a master valve
does not exist. Selecting Normally Open or
Normally Closed when you do not have a master
valve may cause a Valve alert that can prevent
irrigation.
Assign Pump Start Output: Any station output may be
selected. If a pump start is not required, leave this setting
as Not Assigned.
Runtime Valve Test: Default setting is "No". See Chapter 9
in the Owner's Manual for more details.
Max Backup ET: Represents the worst-case weekly ET for
your area for the month of July. If you are not sure what
this number should be, call our Customer Service 800
number for help.
Days / Times
In this menu a start time, water window and a water day mode can
be assigned to one of four available programs A-D. If a pump start
has been assigned as a station output, any one of three programs
can be excluded from a pump start but only in Stack mode.
Note: Check for STACK or OVERLAP (See SETUP for Stack or
Overlap.): If Stack is set; programs B, C and D will have the
same start time as program A. Programs will run sequentially
starting with program A. If Overlap is set, different start times
may be set for each program.
2.3 Exclude a Program from a Pump Start (only when assigned)
Any one of three programs can be excluded from a pump start
when a station output has been assigned as a pump start. The
factory default is all programs are assigned to a pump start un-
less otherwise selected. This feature might be used when drip
emitters and rotor use the same mainline but only one sprinkler
type needs the added delivery pressure.
2.4 Set Start Times and Water Windows
Turn the (M) knob to DAYS/TIMES. Turn the (L) knob to select
program A, B, C or D. Turn the (U) knob to SET STARTS/WIN-
DOWS. Turn the (L) knob to change from Skip to Edit. Turn
the (U) knob to 1st START/WINDOW. Use the (U) & (L) knobs in
sequence to set the start time and the water window. If a 2nd
start time is needed turn the (U) knob to 2nd START TYPE. Use
the (L) knob to set either High ET or Off. Repeat this procedure
for each program used. 1st and 2nd start times cannot overlap
and the maximum water window is 24 hrs.
2.5 Selecting Water Day Mode
Turn the (M) knob to DAYS/TIMES. Turn the (U) knob to WATER
DAY MODE (for Program A, B, C or D). Turn the (L) knob to select
one of the following seven water day modes:
Optimized by WeatherTRAK: ET and individual station
settings determine watering days automatically. Use the (L)
knob to exclude a day if needed. DAY EXCLUSION is available
only for Optimized by WeatherTRAK.
1 800.362.8774 • www.weathertrak.com
