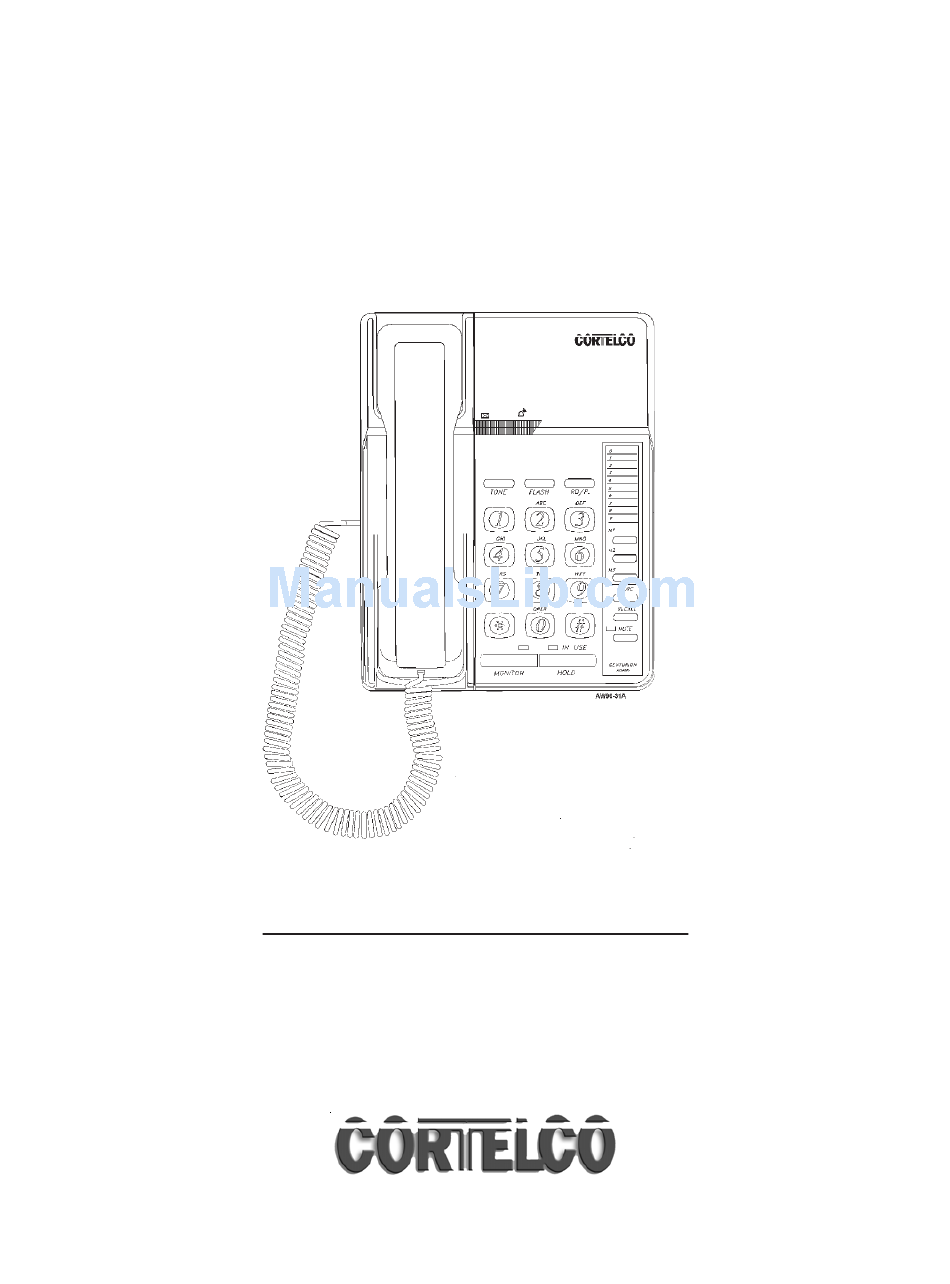

- Page 1 WNER’S NSTRUCTION ANUAL CENTURION MEMORY TELEPHONE...
- Page 2 We want you to know all about your new telephone, how to install it, the features it provides, and the services you can expect from its use. We have included this information in your Owner’s Instruction Manual.
-
Page 3: Table Of Contents
Important Safety Instructions ... 2 Features Of Your Telephone ... 4 Installing Your Telephone ... 7 Unpacking Your Telephone ... 7 Modular Wall Jacks ... 7 Desk Installation ... 8 Wall Installation ... 8 Check For Dial Tone ... 9 Before Using Your Telephone ... -
Page 4: Important Safety Instructions
Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. 4. Do not use the telephone near water. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement. - Page 5 10. Avoid using a telephone during a local thunderstorm. There may be a remote risk of electrical shock from lightning. 11. Do not use a telephone in the vicinity of a gas leak to report the leak, or otherwise. 12. Unplug the telephone from the wall outlet...
-
Page 6: Features Of Your Telephone
TONE/PULSE Switch The TONE/PULSE switch, located on the back of your telephone, is used to set the type of dialing for your telephone to match the local service from your telephone company. - Page 7 The results of a FLASH signal will depend on the services you have available. RD/P Button (Redial/Pause) Your Centurion telephone stores in memory the last number dialed (31 digits maximum). You can redial the last number dialed by lifting the handset and pressing the RD/ P button.
- Page 8 The HOLD LED flashes when a call is placed on hold. To retrieve the call lift the handset or, if the...
-
Page 9: Installing Your Telephone
To install your telephone, you must have a modular wall jack at the desired location, or a 4-prong jack that can be modified with a 4-prong adapter. If your telephone line does not have a modular wall jack, or a jack that can be modified, you must have one installed. -
Page 10: Desk Installation
NSTALLING DESK INSTALLATION To install as a desk telephone, refer to the diagram. • Insert the baseplate mounting posts into the mounting holes and locking slot on the housing. Housing • Connect the line cord into the jack on the back of the phone. -
Page 11: Check For Dial Tone
CHECK FOR DIAL TONE Lift the handset and listen for dial tone. • When you hear dial tone, your telephone is ready to use. • If you do not hear dial tone, refer to the Telephone Service Problems part of your manual. ELEPHONE... -
Page 12: Before Using Your Telephone
1. Set the ringer volume control. If the control is set to OFF, you will not hear the ringer when someone calls you. 2. Your telephone has a TONE-PULSE switch. Set the switch to match the dialing service from the telephone company. -
Page 13: Using Your Telephone
SING ELEPHONE TO PUT A CALL ON LOCAL HOLD While on a call, press the HOLD button, the LED flashes and the call is on local hold. Place the handset on hook, the HOLD indicator remains on while the call is on local hold. To return to the call on hold: Lift the handset or if the handset is off-hook, press the HOLD button, the LED will go off and the call is no longer on hold. -
Page 14: Maintenance Information
ERVICE If you have any problems with your telephone service, determine if the problem is with your telephone or the telephone company lines. BEFORE CALLING THE TELEPHONE COMPANY, be aware that they may charge you for a service call if the problem is caused by your telephone. -
Page 15: Repair Of Your Telephone
EPAIR ELEPHONE DO NOT ATTEMPT TO REPAIR THE TELEPHONE YOURSELF. Telephones manufactured by Cortelco must be returned to us for repair. You can return your telephone to Cortelco for repair or replacement in accordance with our LIMITED WARRANTY. DATE-OF-PURCHASE Cortelco warrants telephones against defects in material and workmanship in accordance with our LIMITED WARRANTY. -
Page 16: The Fcc Wants You To Know
NOTIFICATION TO THE TELEPHONE COMPANY As a customer of the local telephone company, you must, if they ask, tell them before connecting your telephone to the telephone company lines. The telephone company may need the FCC registration number and the ringer equivalence of the telephone. - Page 17 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. Warning: Changes or modifications to this unit not ex- pressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 18 EMORY OCATION UTTON SSIGNMENTS M1__________________________________________________ M2____________________________________________________ M3______________________________________________________ 0______________________________________________________ 1______________________________________________________ 2______________________________________________________ 3______________________________________________________ 4______________________________________________________ 5______________________________________________________ 6______________________________________________________ 7______________________________________________________ 8______________________________________________________ 9______________________________________________________...
-
Page 19: Limited Warranty
This warranty is in lieu of all other express warranties. During the warranty period, Cortelco agrees to repair or, at its option, replace the defective telephone, or any part of it, without charge for parts or labor.
