Cortelco Colleague 2203 Owner's Instruction Manual

Cortelco user manual speakerphone telephone 2203
Hide thumbs
Table of Contents

Advertisement

Quick Links

O
WNER'S
I
M
NSTRUCTION
ANUAL
S
T
PEAKERPHONE
ELEPHONE
2203

Advertisement

Table of Contents
loading

Related Manuals for Cortelco Colleague 2203

Summary of Contents for Cortelco Colleague 2203

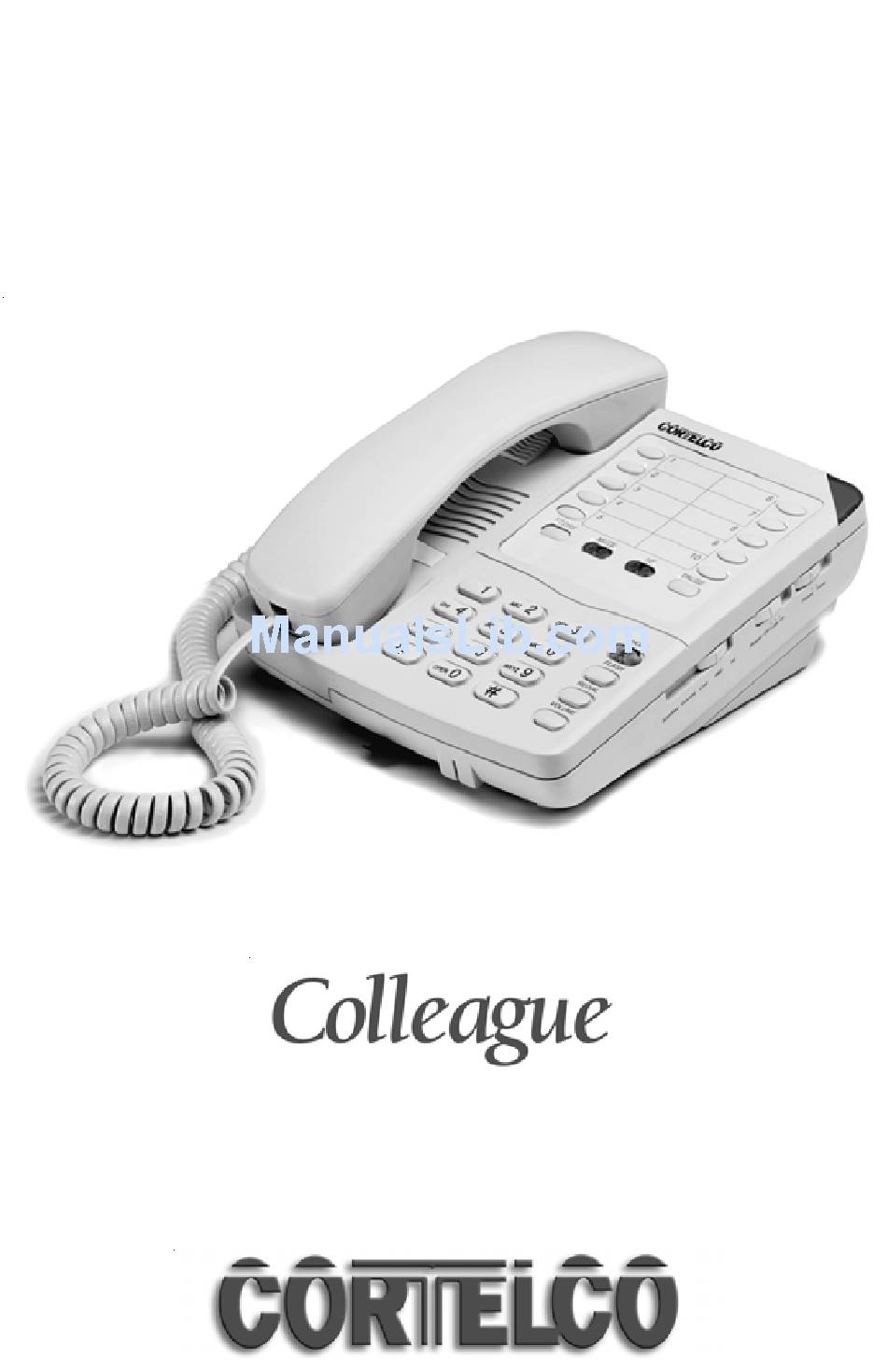

  • Page 1 WNER’S NSTRUCTION ANUAL PEAKERPHONE ELEPHONE 2203...
  • Page 2 HANK URCHASING OLLEAGUE PEAKERPHONE ELEPHONE We want you to know all about your new Colleague Telephone, how to install it, the features it provides, and the services you can expect from its use. We have included this information in your Owner’s Instruction Manual.

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ... 2 TELEPHONE USAGE ... 4 SETUP/INSTALLATION ... 4 WALL MOUNT INSTRUCTIONS ... 5 TELEPHONE PART IDENTIFICATION ... 6 TELEPHONE FEATURES ... 7 PULSE AND TONE DIALING ... 7 RECEIVING A PHONE CALL ... 7 PLACING A PHONE CALL ... 7 VOLUME BUTTON ...

  • Page 4: Important Safety Instructions

    MPORTANT Always follow basic safety precautions when using your telephone equip- ment to reduce the risk of fire, electrical shock, and injury. Read and understand all instructions in the Owner’s Instruction Manual. Read all warnings and follow all instructions marked on the product. Unplug this product from the wall outlet before cleaning.
  • Page 5 Do not disassemble this product. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electrical shock when the product is subsequently used. Do not overload outlets and extension cords. Some telephones require AC power from an outlet. Overloading the outlets can result in the risk of fire or electric shock.

  • Page 6: Telephone Usage

    SET UP/INSTALLATION 1. Connect the telephone line cord. a. To connect without an answering machine. • Use the new line cord to connect the PHONE jack of your new phone to the modular wall jack. b. To connect with an existing answering machine. •...

  • Page 7: Wall Mount Instructions

    WALL MOUNT INSTRUCTIONS 1. Install wall mount bracket in wall mount position and route cords as shown in diagram below. 2. Connect the line cord. See Step 1 on preceding page for specific instructions. 3. Push out the handset hook and reattach in opposite direction for the wall mount position, plug the coiled cord into the handset, and then plug the other end of the cord into the case.

  • Page 8: Telephone Part Identification

    ELEPHONE Flash Switch Data Port Telephone Line Cord Jack Message Waiting Indicator Memory Access Pause Button Handsfree Button Mute Button Store Button DENTIFICATION Hold Button Flash Button Redial Button Volume Button Microphone Pulse/Tone Ringer Off/Low/Hi Speaker Volume...

  • Page 9: Telephone Features

    PULSE AND TONE DIALING If your telephone line accepts a touch-tone dialing, set the PULSE/TONE switch to the Tone position. If your telephone line requires a rotary (pulse) dialing, set the PULSE/ TONE switch to the Pulse position. If you are unsure which system you have, set the switch to the TONE position. Lift the handset.

  • Page 10: Hold Button

    HOLD BUTTON To place a call on hold, press the HOLD button and hang up the handset. The HOLD Indicator will light up and remain lighted until you resume your conversation. To resume your conversation, lift the handset or that of any extension phone on the same line.

  • Page 11: Pause Button

    To Dial A Phone Number In Memory Lift the handset and wait for a dial tone. To dial an auto memory button (located on top of base) - Press the desired auto memory button. The number will be dialed automatically. PAUSE BUTTON The PAUSE button allows you to insert a 3.6-second pause in the dialing sequence.

  • Page 12: Dip Switch

    DIP SWITCH The DIP Switch located under the plastic memory index cover provides for: a) Positive line disconnect option selection insures that any hookswitch depression disconnects the call. b) A-Lead option selection used for special applications such as use with 1A2 Key Systems.

  • Page 13: Telephone Service Problems

    ELEPHONE If you have any problems with your telephone equipment service, determine if the problem is with your unit or the telephone company lines. BEFORE CALLING THE TELEPHONE COMPANY, be aware that they may charge you for a service call if the problem is caused by your telephone equipment.

  • Page 14: Maintenance Information

    AINTENANCE NFORMATION Treat your telephone equipment with care for trouble-free performance. Avoid dropping the handset. Carefully place the handset on-hook after use. Avoid putting near heating appliances and devices that generate electrical noise (for example, motors and florescent lamps). Clean your telephone equipment with a damp cloth. Stains may be removed with a mild soap.

  • Page 15: Telephone Repair

    DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Telephones manufac- tured by CORTELCO must be returned to us for repair. You can return your telephone to CORTELCO for repair or replacement in accordance with our LIMITED WARRANTY. CORTELCO warrants THIS PRODUCT against defects in material and workmanship in accordance with our LIMITED WARRANTY.

  • Page 16: Fcc Information

    FCC I NFORMATION Part 68 is a Federal regulation which requires equipment to be tested and registered with the FCC prior to its connection to the network. This equipment complies with Part 68 of FCC rules. On the bottom of the telephone is a label that contains, among other information, the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment.

  • Page 17: Index

    A, B, C Adjusting volume A-Lead Data Port Dialing Mode DIP Switch E, F FCC Information Features Flash Flash Switch G, H, I, J Handsfree Button Headset Compatible Hold K, L, M Maintenance Making calls Memory Message light Mute Button NDEX N, O, P Part Identification...
  • Page 18 CORTELCO with the product and loss of parts. The warranty is voided in the event any unauthorized person alters or repairs the unit.
  • Page 19 ELEPHONE UMBERS ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
