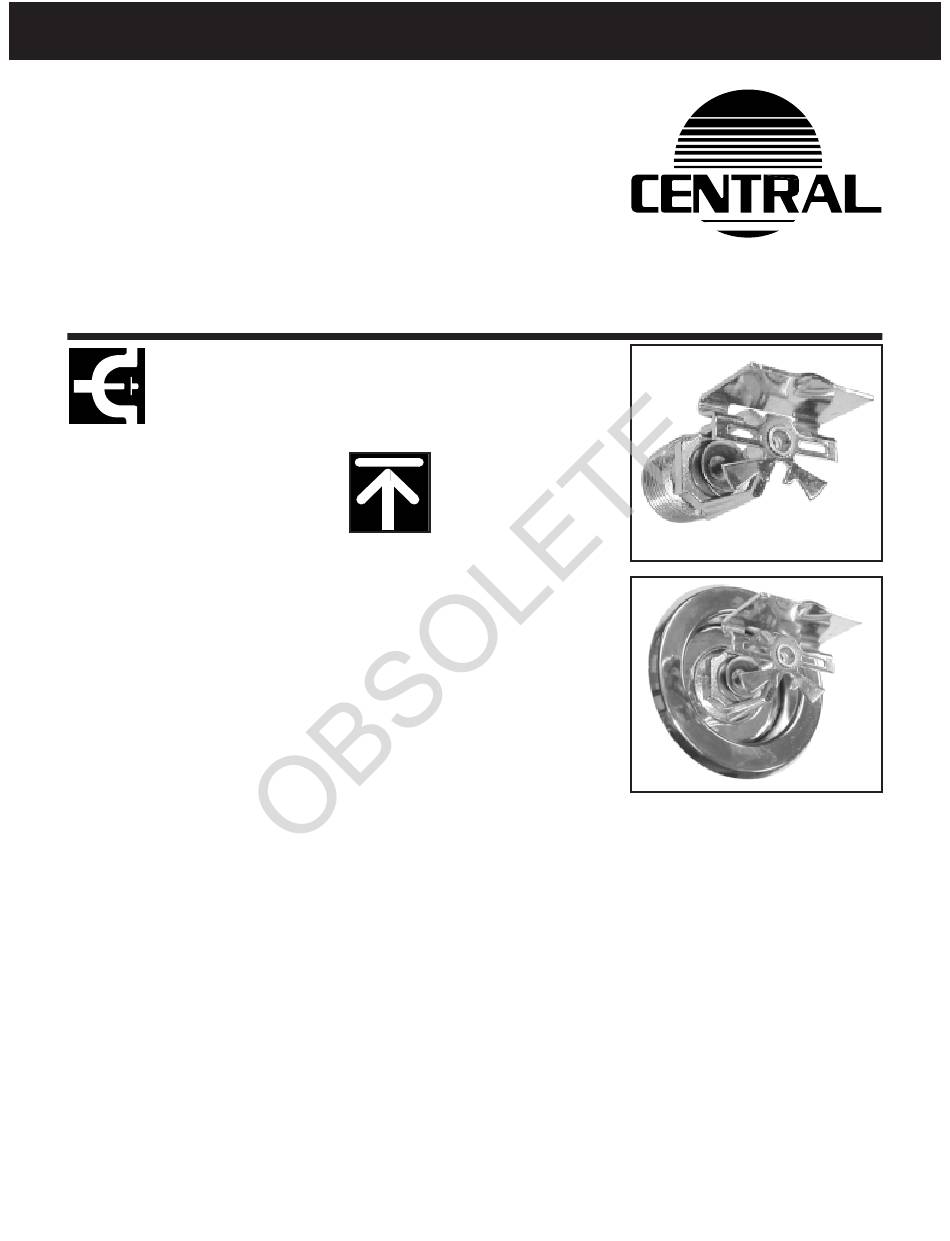

Tyco Fire Product CENTRAL B Instruction Manual

CENTRAL
Model B
8.0 K-factor
Quick Response
Extended Coverage Light Hazard
Horiz. Sidewall & Rec. Horiz. Sidewall Glass Bulb Automatic Sprinkler
Tyco Fire Products --- www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA
Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Model B, 8.0 K-factor
(17/32 inch orifice), Quick Response,
Extended Coverage Light Hazard
(ECLH) Horizontal Sidewall & Re-
cessed Horizontal Sidewall Sprinklers
are decorative glass bulb sprinklers
designed for use in light hazard
occupancies per NFPA 13 or FM
Installation standards.
They are designed for installation
along a wall beneath smooth & level
ceilings as defined in the applicable
installation standard. Horizontal
sidewall sprinklers are generally used
in lieu of pendent sprinklers because
of aesthetic, building construction, or
installation economy considerations.
The recessed version of the Model B
using a two-piece Series 4211
Recessed Escutcheon provides 3/4
inch (19,1 mm) of field adjustment. In
addition to its aesthetically pleasing
appearance, the adjustment provided
by the Recessed Escutcheon reduces
the accuracy to which the fixed pipe to
the sprinklers must be cut.
Operation: The glass bulb contains a
fluid which expands when exposed to
heat. When the rated temperature is
reached, the fluid expands sufficiently
to shatter the glass bulb, which then
allows the sprinkler to activate & flow
water.
WARNING
The Model B ECLH Horizontal Sidewall
and Recessed Horizontal Sidewall
Sprinklers described herein must be
installed & maintained in compliance
with this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authorities
having jurisdiction. Failure to do so may
impair the integrity of these devices.
B
The owner is responsible for
maintaining their fire protection system
and devices in proper operating
condition. The installing contractor or
sprinkler manufacturer should be
contacted relative to any questions.
Technical
Data
Sprinkler Identification Number
SIN C4332
Approvals
UL and ULC Listed. FM Approved.
(The approvals apply only to the service
conditions indicated in the Design Criteria
Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
Discharge Coefficient
1/2
K = 8.0 GPM/psi (116,8 LPM/bar
Temperature Ratings
135°F/57°C, 155°F/68°C, & 175°F/79°C
Finishes
Sprinkler: White Polyester, Chrome
Plated, or Natural Brass
Recessed Escutcheon: White Coated
or Chrome Plated
Physical Characteristics
The Model B ECLH Horizontal Sidewall
& Recessed Horizontal Sidewall
Sprinklers utilize a dezincification
resistant (DZR) bronze frame and a 3
mm bulb. The two-piece button
assembly is brass and copper. The
sprinkler frame orifice is sealed with a
gasketed spring plate (Belleville Seal)
consisting of a beryllium nickel disc
spring that is sealed on both its inside
and outside edges with a Teflon
gasket. The compression screw is
bronze, & the deflector is brass.
1/2
)
Extended
Coverage Light
Hazard
Horizontal
Sidewall &
Rec. Horizontal
Sidewall
Sprinklers
TM
2-01
No. 2-12.1
