Omron H5S-B Manual

Omron H5S-B Manual

Weekly time switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

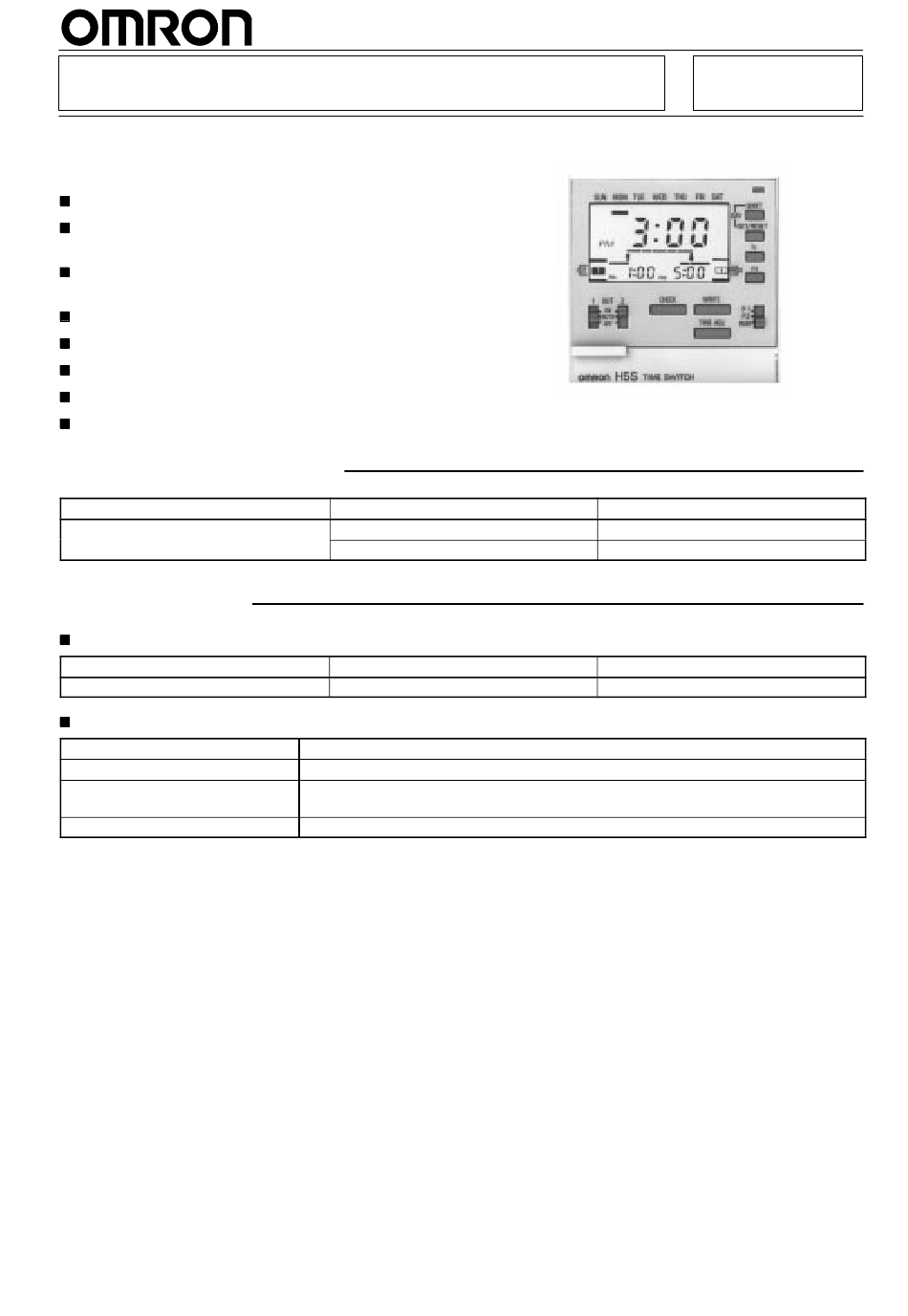

Weekly Time Switch
Weekly Time Switch for Various Time
Controls
A different program possible each day.
Easy-to-program using the interactive menu
system.
Multiple-day operation, cyclic and pulse-output
operation possible.
ON/OFF operations can be set in 24 steps.
Timing chart display for operation monitoring.
Two circuits can be controlled independently.
Supply voltage from 100 to 240 VAC.
Surface, flush, or track mounting possible.
Ordering Information
Wiring
Screw terminals
Specifications
Time Ranges
Rated time
1 week
Ratings
Rated supply voltage
Operating voltage range
Power consumption
Control outputs
Mounting style
Flush mounting
Surface mounting/track mounting
Time setting range
00:00 a.m. to 11:59 p.m.
100 to 240 VAC (50/60 Hz), 24 VDC
85% to 110% of rated supply voltage (85 to 264 VAC (50/60 Hz))
AC: Approx. 3 VA
DC: Approx. 0.8 W
SPST-NO x 2 circuits: 15 A at 250 VAC, resistive load
H5S
Model
H5S-B
H5S-FB
Time division
1 min
RC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5S-B and is the answer not in the manual?

Questions and answers

Related Manuals for Omron H5S-B

Summary of Contents for Omron H5S-B

  • Page 1 Supply voltage from 100 to 240 VAC. Surface, flush, or track mounting possible. Ordering Information Wiring Mounting style Model Screw terminals Flush mounting H5S-B Surface mounting/track mounting H5S-FB Specifications Time Ranges Rated time Time setting range Time division 1 week 00:00 a.m.
  • Page 2 Characteristics Accuracy of operating time 0.01% 0.05 s max. (see note) Setting error Influence of voltage Influence of temperature Cyclic error Monthly difference 15 s (at 25 C) ( 4 s/week, 1 min/4 months) Memory protection 5 years min. (at 25 C) Insulation resistance 100 MΩ...

  • Page 3: Key Operations

    Nomenclature Front Panel (With Cover Open) Automatic operation indicator 1. Shift Key 2. Set/Reset Key 3. h (hour) Key 4. m (minute) Key 5. Check Key 6. Write Key 11. Mode Switch 7. Time (time adjustment) Key 10. Clr (clear) Key 9.

  • Page 4: Operation Function

    Operation Operation Function Timer operation Controls the output according to the set time of ON and OFF (the time can be set in units of 1 min) Pulse-output operation Produces the output for a fixed duration at the set ON (pulse width: 1 to 59 s, or 1 to 59 min). The pulse width can be set in units of 1 s or 1 min.

  • Page 5: Time Adjustment

    Time Adjustment Ordinary Timer Operation Set the Mode Switch to RUN. Set the Mode Switch to P1 (or P2). Example: Set Wed. 10:30 a.m. Example: ON at 9:00 a.m. and OFF at 5:45 p.m. on Monday through Friday. Initial time adjustment after Time adjustment during op- purchase eration...

  • Page 6: Cyclic Operation

    Cyclic Operation Multiple-day Operation The period of ON time or OFF time can be set within a range be- Set the Mode Switch to P1 (or P2). tween one minute and 11 hours, 59 minutes respectively. Example: ON at 9:00 p.m. Monday and OFF at 3:15 a.m. Tuesday. Set the Mode Switch to P1 (or P2).
  • Page 7 Pulse Output Operation Checking the Setting in Operation Sequence Set the Mode Switch to P1 (or P2). Set the Mode Switch to RUN. Example: To produce output for 10 s at 9:00 a.m. and 0:15 p.m. To check the operation of To check the operation of a Monday through Friday.
  • Page 8 3 Press the Write Key. reduced in this case. ner.) Dimensions Note: All units are in millimeters unless otherwise indicated. H5S-B (Flush Mounting Model) H5S-FB (Surface Mounting Model) (The Unit is shown with the enclosed ter- minal cover attached.) Y92F-90 (option)
  • Page 9 Mounting Dimensions Surface Mounting (H5S-FB) Flush Mounting (H5S-B) Mounting Holes Panel Cutout Note: Panel thickness: 1 to 5 mm Track Mounting (H5S-FB with Y92F-90) Note: With mounting track PFP-100N or PFP-50N With mounting track PFP-100N2 79.8 (Note 2) When mounting the time switch on a soft iron panel using the M4 tapping screws, the diameter of the mounting holes drilled into the panel vary according to the panel thickness, as follows.

  • Page 10: Installation

    PFP-100N/PFP-50N (Meets DIN EN 50022) Twelve, 25 4.5 elliptic holes This dimension applies to the PFP-50N Mounting Track. Installation Terminal Arrangement H5S-B Flush Mounting Models H5S-FB Surface Mounting Models (Rear View) (Front View) Note: The terminal screws are M3.5. Connections...
  • Page 11 Precautions Operation The earlier ON time setting takes precedence. If both settings 1 and 2 are for an ON/OFF or pulse operation, the output is continuously produced without being interrupted. For ex- ample, if setting 1 is for cyclic operation, and 2 is set for an ON/OFF operation, the cyclic operation is performed during period of a to b, and the ON/OFF operation is performed from b to c.
  • Page 12 To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. L014-E1-4E In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company Measuring and Supervisory Controls Department Printed in Japan 28th Fl., Crystal Tower Bldg.,...
