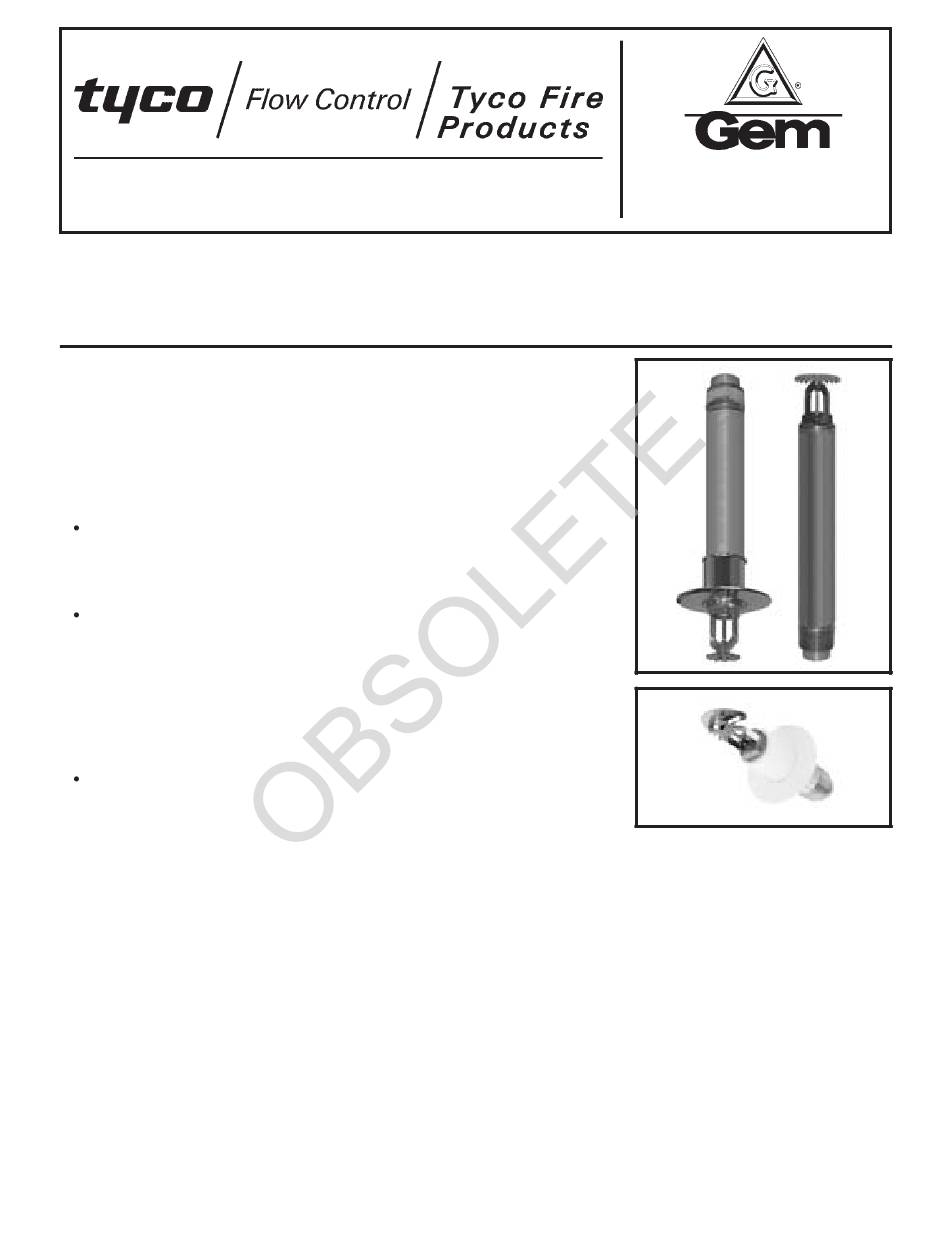

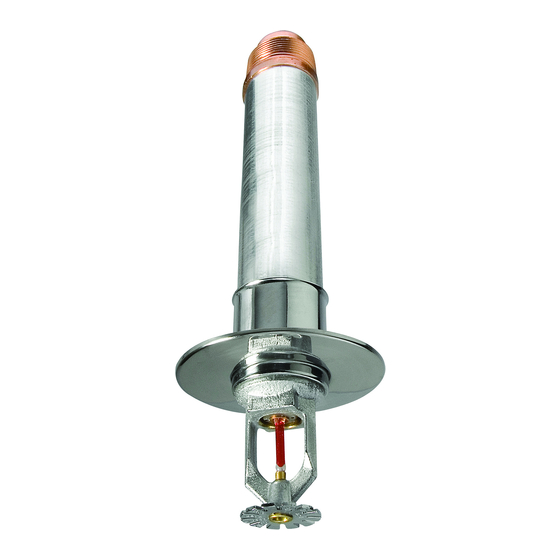

Series DS-1 — 5.6 K-factor
Dry Type Sprinklers
Quick Response, Standard Coverage
General
Description
The Series DS-1, 5.6 K-factor, Quick
Response, Standard Coverage, Dry
Type Sprinklers are decorative 3 mm
glass bulb automatic sprinklers de-
signed for the following typical uses:
where pendent sprinklers are re-
quired on dry pipe systems that
are exposed to freezing tempera-
tures (e.g. sprinkler drops from un-
heated portions of buildings)
where sprinklers and/or a portion
of the connecting piping may be
exposed to freezing temperatures
(e.g. sprinkler drops from wet sys-
tems into freezers, sprinkler
sprigs from wet systems into un-
heated attics, or horizontal piping
extensions through a wall to pro-
tect an unheated area of a build-
ing)
where sprinklers are used on sys-
tems that are seasonably drained
to avoid freezing (e.g. vacation re-
sort areas)
WARNINGS
The Series DS-1 Dry Type Sprinklers
described herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the integrity of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
relative to any questions.
The Series DS-1 Dry Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
Page 1 of 6
Model/Sprinkler
Identification
Numbers
TY3235 - (Pendent)
TY3135 - (Upright)
TY3335 - (Horizontal Sidewall)
Technical
Data
Approvals
UL and C-UL Listed.
FM and NYC Approved.
(Refer to Table A)
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1 inch NPT (Standard Order)
ISO 7-R1
3/4 inch NPT
1-1/4-14UNC
Discharge Coefficient
1/2
K = 5.6 GPM/psi
1/2
(80,6 LPM/bar
)
Temperature Ratings
Refer to Table A
Finishes
Sprinkler: Natural Brass, Chrome
Plated, White Polyester
Escutcheon: White Coated or Chrome
Plated
Physical Characteristics
Inlet . . . . . . . . . . . . .
Plug . . . . . . . . . . . . .
Yoke . . . . . . . . . Stainless Steel
Casing . . . Galvanized Carbon Steel
Insert . . . . . . . . . . . . . Bronze
Bulb Seat . . . . . . Stainless Steel
Bulb . . . . . . . . . . . . . . Glass
Compression Screw . . . . . Bronze
Deflector . . . . . . . . . . . . Bronze
FEBRUARY, 2002
Customer Service/Sales:
Tel: (414) 570-5000 / (800) 558-5236
Fax: (414) 570-5010 / (800) 877-1295
Frame . . . . . . . . . . . . Bronze
Guide Tube . . . . . . Stainless Steel
Water Tube . . . . . . Stainless Steel
Spring . . . . . . . . Stainless Steel
Sealing Assembly . . . . . . . . . .
. . . . . . Beryllium Nickel w/Teflon*
Escutcheon . . . . . . Carbon Steel
Patents
U.S.A. Patent Number 5,188,185 may
be applicable to the Series DS-1, 5.6
Copper
K-factor, Quick Response, Standard
Copper
Coverage, Dry Type Sprinklers.
* Registered Trademark of DuPont
TFP510
