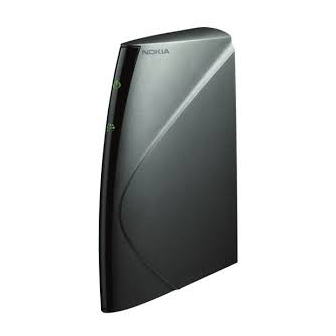

DNT2Mi-fp
Data Network Terminal
User manual
C33999.21 B0
DN0445814
© Nokia Corporation
Issue 2-0 en
Nokia Proprietary and Confidential
1 (60)
