hepco & becker 5014566 00 01 Quick Start Manual

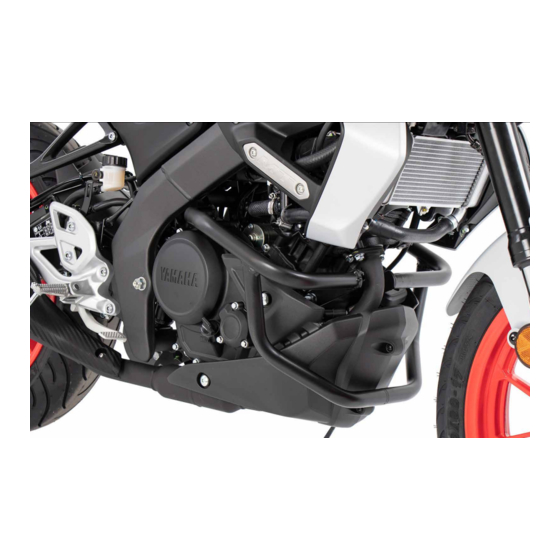

Engine guard for yamaha mt-125 (2020-)
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual

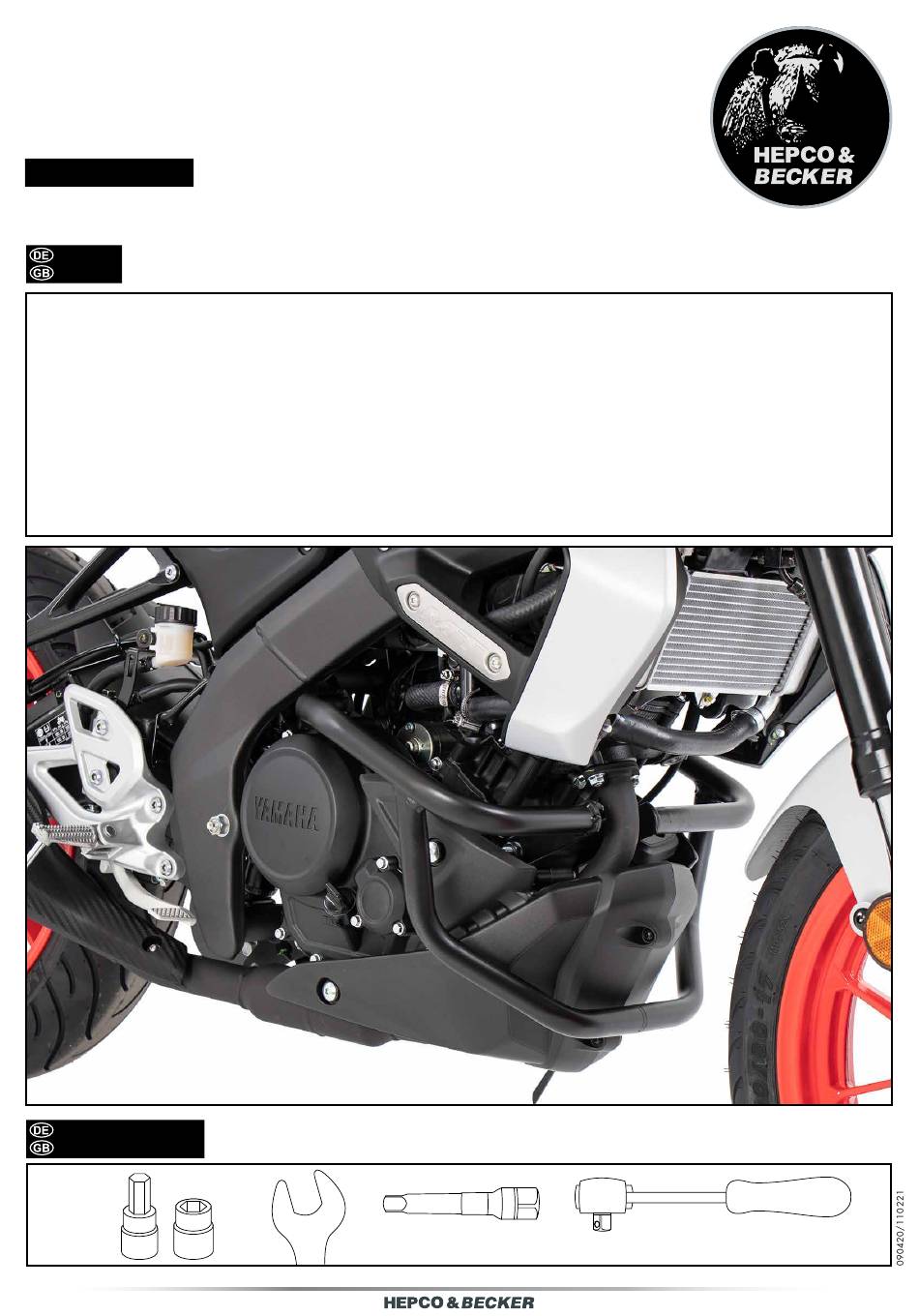

Motorschutzbügel/ Engine guard
Yamaha MT-125
(2020-)
Artikel Nr.: / Item-no.:
4566
501
00 01
schwarz/black
INHALT
CONTENT
1x 700010893 Motorschutzbügel links
1x 700010894 Motorschutzbügel rechts
1x 700010895 Schraubensatz:
1x Zylinderschraube M10x180
1x Sechskantschraube M10x110
4x U-Scheibe Ø10,5
2x Selbstsichernde Mutter M10
1x Aludistanz Ø18xØ11x10
1x Verbindungsstück Ø25
1x Aludistanz Ø18xØ11x40
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Set
Verlängerung/extension
1x 700010893 Engine guard left
1x 700010894 Engine guard right
1x 700010895 Screw kit:
1x Allen screw M10x180
1x Hexagon bolt M10x110
4x Washer Ø10,5
2x Self lock nut M10
1x Alu spacer Ø18xØ11x10
1x Connector Ø25
1x Alu spacer Ø18xØ11x40
Ratsche/Ratchet
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5014566 00 01 and is the answer not in the manual?

Questions and answers

Related Manuals for hepco & becker 5014566 00 01

Summary of Contents for hepco & becker 5014566 00 01

  • Page 1 Motorschutzbügel/ Engine guard Yamaha MT-125 (2020-) Artikel Nr.: / Item-no.: 4566 00 01 schwarz/black INHALT CONTENT 1x 700010893 Motorschutzbügel links 1x 700010893 Engine guard left 1x 700010894 Motorschutzbügel rechts 1x 700010894 Engine guard right 1x 700010895 Schraubensatz: 1x 700010895 Screw kit: 1x Zylinderschraube M10x180 1x Allen screw M10x180 1x Sechskantschraube M10x110...
  • Page 2 Zwischen Lasche und Rahmen die Aludistanz Ø18xØ11x10 fügen. Fastening of the engine guard rear left: On the free thread with the allen screw M10x180 and washer Ø10,5. Between the lug and the frame add the alu spacer Ø18xØ11x10. Fahrtrichtung/driving direction 5014566 00 01...
  • Page 3 First of all, put the two pipe ends together at the front. Fix the crash bar on the already mounted allen screw M10x180 with the washer Ø10,5 and self-lock nut M10. Insert the alu spacer Ø18xØ11x40 between the bracket and the frame. Fahrtrichtung/driving direction 5014566 00 01...
  • Page 4 Weiteres Zubehör auf unserer Homepage. More accessories: see our homepage. Hepco & Becker GmbH Tel.: +49 (0)6331 - 1453 - 100 An der Steinmauer 6 Fax: +49 (0)6331 - 1453 - 120 D-66955 Pirmasens eMail: vertrieb@hepco-becker.de Germany www.hepco-becker.de 5014566 00 01...
