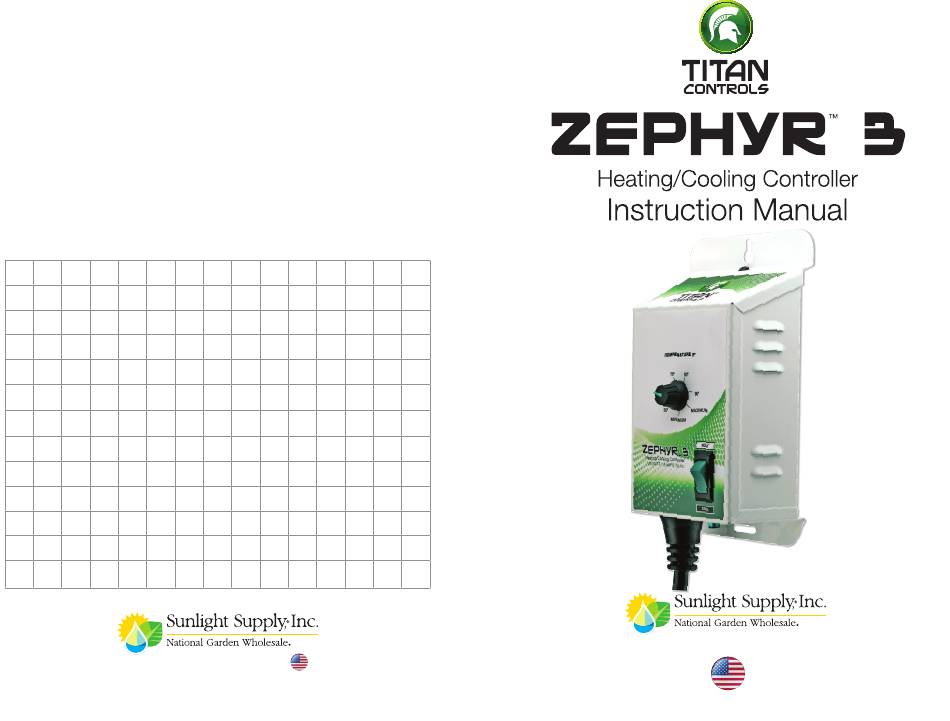

Notes:
_________________________________________________
_________________________________________________
_________________________________________________
_________________________________________________
_________________________________________________
_________________________________________________
________________________________________________
1 Square = ____ Foot/Feet
VANCOUVER, WASHINGTON U.S.A.
www.titancontrols.net
Revision C – 8/22/2012 © Titan Controls
®
VANCOUVER, WASHINGTON U.S.A.
www.titancontrols.net
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Sunlight Supply TITAN CONTROLS ZEPHYR 3
Summary of Contents for Sunlight Supply TITAN CONTROLS ZEPHYR 3
- Page 1 Notes: _________________________________________________ ® _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ ________________________________________________ 1 Square = ____ Foot/Feet VANCOUVER, WASHINGTON U.S.A. VANCOUVER, WASHINGTON U.S.A. www.titancontrols.net www.titancontrols.net Revision C – 8/22/2012 © Titan Controls...
- Page 2 Zephyr ™ WARRANTY SERVICE: Please read warranty information first If after reviewing the troubleshooting tips the unit will still not work, you should return it to the • Warnings & Cautions Dealer where you purchased it. They may be able to further evaluate the unit and test its various components and quite possibly will be able to identify and/or fix any problems. If the Dealer is • Zephyr™ 3 - Heating/Cooling Controller unable to fix the unit, they will return it to us for factory repair. • Instructions for Operation If there are no Dealers in your area, you may contact us directly for technical support. If we • Troubleshooting Tips cannot help you resolve the problem over the phone, we will issue you a Return Merchandise Authorization (RMA) number authorizing you to return the unit to us for factory reconditioning • Controller Specifications (if the controller is currently under warranty). Contact the number below for a RMA number and • Installation Example shipping address. Please complete the form below and include it with your unit, and write the • Warranty Information RMA number clearly on the outside of the box. Please package the unit in its original packaging. If it is damaged in shipment we cannot be held • Service and Repair Program responsible. Insuring the parcel is recommended. Once we receive the unit back, we will repair it within 48 hours (business) and return it to you freight prepaid via UPS ground shipment. Warnings & Cautions Include the following if returning directly to Titan Controls®...

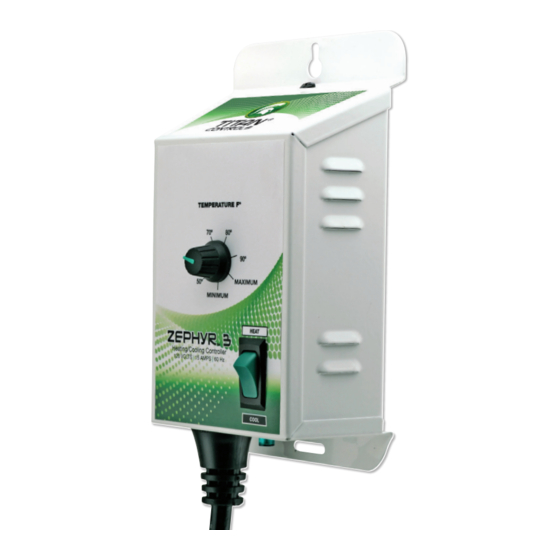

- Page 3 Zephyr – Heating/Cooling ™ Controller Overview Warranty Information The Zephyr™ 3 is used to maintain the temperature level in your growing environment. • Titan Controls® warrants the original purchase of this product against defects in material The temperature can be adjusted by setting the dial on the front of the controller to your and workmanship under normal use for five (5) years from the date of purchase. preferred setting. When the Zephyr™ 3 is in the COOLING MODE and the temperature • During the warranty period, Titan Controls® will, at our option, and without charge, repair or exceeds the predetermined setting, the piggyback cord set is activated and will operate the replace this product if the controller or any of its components fail or malfunction. exhaust fan until the temperature is lower than the preferred set point. When the Zephyr™ • All returns or repairs must be accompanied by a Return Merchandise Authorization (RMA) 3 is in the HEATING MODE and the temperature is below the predetermined setting, then number prior to any service of the product. the piggyback cord set is activated and will operate the heater (1500 Watts or less) until the • This warranty is expressly in lieu of all other warranties, expressed or implied, including the temperature is higher than the preferred set point. The Zephyr™ 3 operates up to 15 amps warranties of merchantability and fitness for use and of all other obligations or liabilities on maximum capacity on a standard 120 Volt circuit. Built with the highest quality components, the part of the seller. the Zephyr™ 3 will provide the user with years of trouble free service. Controllers created for our industry, by our industry! • This warranty shall not apply to this product or any part thereof which had been damaged by accident, abuse, misuse, modification, negligence, alteration or misapplication. • Controllers with serial numbers or date tags that have been removed, altered or obliterated; broken seals or that show evidence of tampering; mismatched board serial numbers or nonconforming parts; are excluded from coverage. Instructions for Operation • Titan Controls® makes no warranty whatsoever in respect to accessories or parts not supplied by Titan Controls®. • Securely mount your Zephyr™ 3 in your grow area and away from any moisture, spray, pesticides, etc. using the hardware provided.
- Page 4 Troubleshooting Tips, Continued Installation Example c. Ensure that the exhaust fan is ‘ON’ and set at the fastest speed, if adjustable OR the heater is at the highest setting possible, if adjustable. d. Verify that the Zephyr™ 3 is set at the proper temperature level to activate and deactivate equipment. e. If your ventilation equipment does not turn off, verify that your exhaust fan is the correct size for your grow area. Increase the size of exhaust fan (if necessary) to cool the garden as quickly as possible. f. If your heating equipment does not turn off, verify the your heater is the correct size for your grow area. Increase the size of heater (if necessary) to warm your garden as required. g. If you are still having problems with your Zephyr™ 3, please contact our Technical Service Representative at 888-808-4826 to assist you further. Controller Specifications: • Size = 8”H x 4”W x 2.5”D • Weight = 2 lbs. • Input Voltage = 120 Volts/AC • Output Voltage = 120 Volts/AC • Maximum Amperage = 15 Amps • Operating Hertz = 60 Hz • Minimum/Maximum Temperature Control Levels = 40° to 100°F (5°C to 38°C) • Temperature Accuracy = ± 3°F of desired setting • Cord set = 6 feet - 14/4 SWJ • Storage Temperature = 32° to 135°F (0° to 58°C) • Operating Temperature = 45° to 95°F (7° to 35°C)
