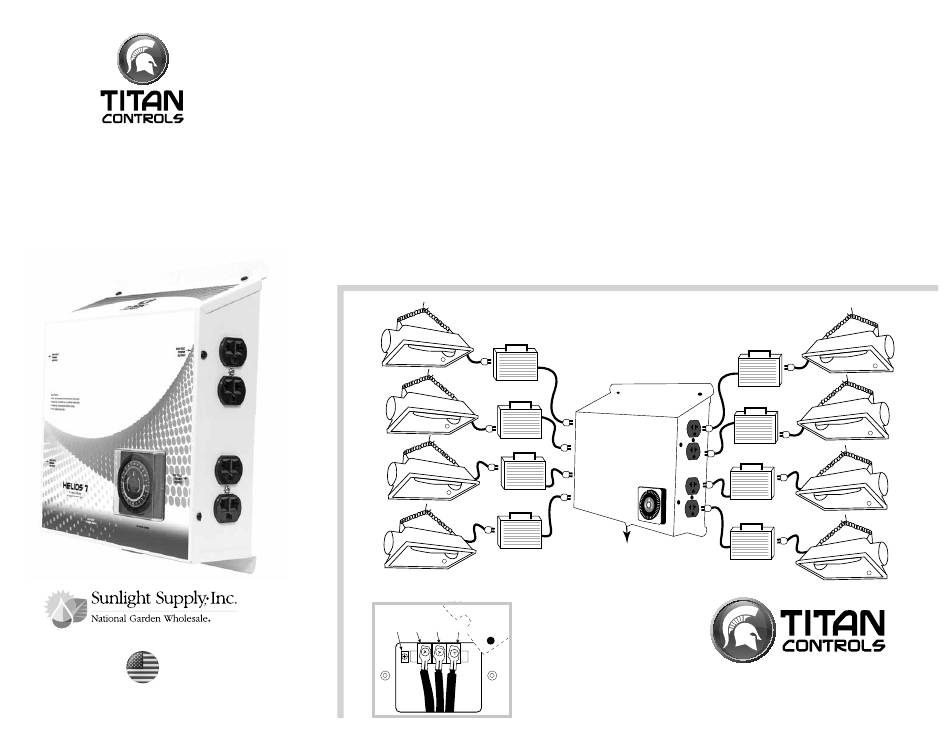

Sunlight Supply Titan Controls Helios 7 Easy Manual

®

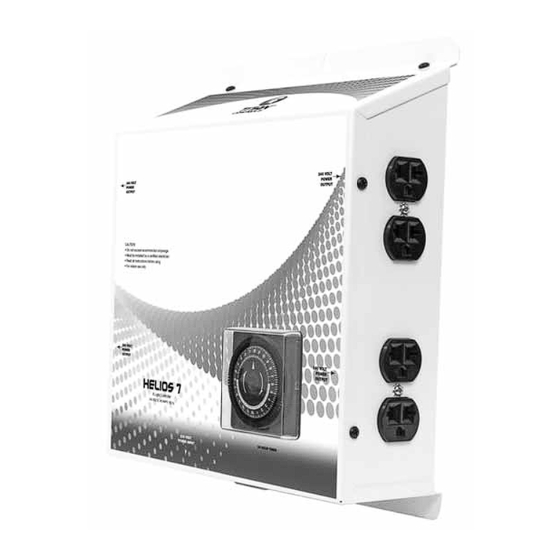

Helios 7
8 Light - 240 Volt Lighting Controller
Easy Guide
VANCOUVER, W ASHINGTON U.S.A.
Instructions for Use
1. Must be installed by a certifi ed electrician.
2. Connect 240 volt power to the 3 screws under the protective
cover. (See 'Instructions for Operation' section).
3. Replace protective cover with screws provided.
4. Securely mount your Helios 7, with hardware provided, near
the ballasts to be operated. It should be placed away from
water, mist, spray, etc.
5. Plug your 240 volt ballasts into the multi-tap outlets on the
TM left and right side of the controller.
6. Adjust the analog timer to the current time of day. Set your
timing pattern by pushing the 'time trippers' towards the
center of the dial.
7. Your Helios 7 will now control your ballasts at the desired
settings until the power is defeated.
Sun System
Sun System
Sun System
Sun System
Ground Hot
Controlling a light bank
R
to 240 Volt Ballast
R
to 240 Volt Ballast
Helios 7
240 Volt
R
to 240 Volt Ballast
to 50 Amp
to 240 Volt Ballast
Power Source
R
Neutral Hot
Wiring
diagram
Controller Specifi cations
Size: 13"H x 11"W x 4"D
Weight: 10 lbs.
Voltage Input: 240 volts
Voltage Output: 240 volts
Maximum Amperage: 40 amps
Maximum Wattage: 8000 Watts
Hertz: 60 Hz
Time Switch: 24 hour analog timer
Operating Temperature: 40° to 125° F | 5° to 52° C
Storage Temperature: 32° to 135° F | 0° to 57° C
to 240 Volt Ballast
to 240 Volt Ballast
24 HR Timer
to 240 Volt Ballast
to 240 Volt Ballast
