Installation & Loading Instructions - Please Read Before Beginning
IMPORTANT WARNING: All vehicular transports are potentially hazardous. Any person(s) using Malone products are personally responsible for
following the given directions for use and/or installation and accepts full responsibility for any and all damages or injury of any kind including death,
which may result from their use and/or installation.
It is critical that all Malone racks and accessories be properly and securely attached to your vehicle. Improper attachment could result in a serious
accident, and could cause serious bodily injury or death to you or to others. You are responsible for securing the racks and accessories to your car,
checking the attachment's prior to use, and periodically inspecting the products for adjustment, wear, and damage.
You must read and understand all of the instructions and cautions supplied with your Malone products(s) prior to installation or use. If you do not
understand all of the instructions and cautions, or, if you have no mechanical experience and are not thoroughly familiar with the installation
procedures, you should have the product installed by a professional installer.
MALONE

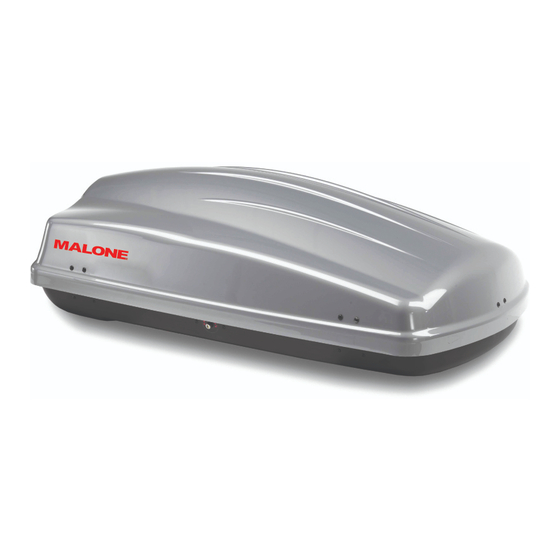

ROOFTOP BOXES
CARGO & PROFILE SERIES
REV 11/16
MPG901
MPG902
R
MPG903
MPG910
MPG911
Advertisement
Related Manuals for Malone CARGO Series
Summary of Contents for Malone CARGO Series
- Page 1 You must read and understand all of the instructions and cautions supplied with your Malone products(s) prior to installation or use. If you do not understand all of the instructions and cautions, or, if you have no mechanical experience and are not thoroughly familiar with the installation procedures, you should have the product installed by a professional installer.
- Page 2 CARGO SERIES ROOF TOP BOXES MPG901 MPG902 MPG902 Cargo12 Cargo16 Volume: 12.0 cf Mounting System: Quick Attach Volume: 16.25 cf Mounting System: Quick Attach Length: 55.1" Box Opening: Single Side Length: 76.4" Box Opening: Dual Side Width: 31.5" Locking Points: 2 Width: 27.9"...
- Page 3 MALONE ROOFTOP BOXES CARGO & PROFILE SERIES Installation & Loading Instructions - Please Read Before Beginning Veuillez lire les instructions avant d’entreprendre l’installation et le chargement Setting the Cross Bar Spread For the MPG901, adjust the vehicle’s cross bars to between 25” and 28”.
- Page 4 MALONE ROOFTOP BOXES CARGO & PROFILE SERIES Mounting Knob Wave Washer Locking Plate Attachment Bolt Attachment Bracket Rear Orientation Front Orientation Installing the Mounting Hardware on the MPG901: There are four rows with eight holes each in the bottom tray. Insert the Attachment Brackets (with Bolts) up from the bottom of the tray and through one hole in each of the rows.
- Page 5 MALONE ROOFTOP BOXES CARGO & PROFILE SERIES Correct Positioning: Slide the box into place so that the front and rear loads bars are centered with the Attachment Brackets. Check to confirm that there is clearance to raise the vehicle’s rear hatch and there is no conflict with the antenna.
- Page 6 MALONE ROOFTOP BOXES CARGO & PROFILE SERIES Cargo & Usage Warnings: . ALWAYS physically confirm the lid is securely locked before transport. This can be done by gently lifting up on both ends of the locked side. . Avoid transporting abrasive chemicals or any sharp object that can pierce the box.
