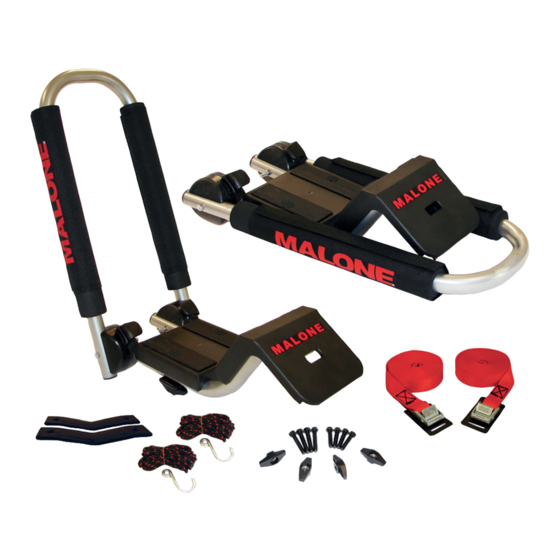

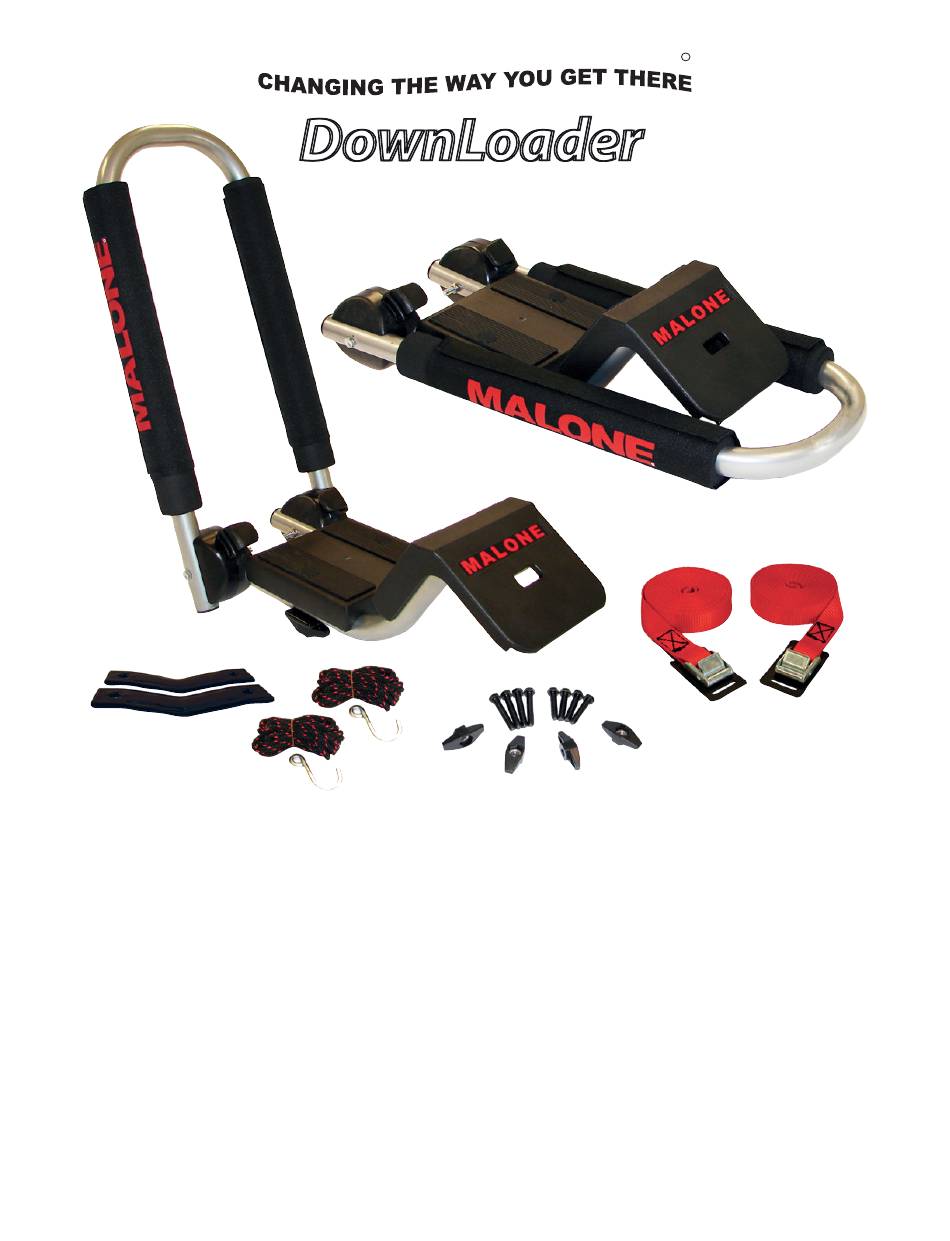

J-STYLE FOLDING KAYAK CARRIER
Installation & Loading Instructions - Please Read Before Beginning
IMPORTANT WARNING: All vehicular transports are potentially hazardous. Any person(s) using Malone products are personally responsible for
following the given directions for use and/or installation and accepts full responsibility for any and all damages or injury of any kind including death,
which may result from their use and/or installation.
It is critical that all Malone racks and accessories be properly and securely attached to your vehicle. Improper attachment could result in a serious
accident, and could cause serious bodily injury or death to you or to others. You are responsible for securing the racks and accessories to your car,
checking the attachment's prior to use, and periodically inspecting the products for adjustment, wear, and damage.
You must read and understand all of the instructions and cautions supplied with your Malone products(s) prior to installation or use. If you do not
understand all of the instructions and cautions, or, if you have no mechanical experience and are not thoroughly familiar with the installation
procedures, you should have the product installed by a professional installer.
Advertisement
Related Manuals for Malone DownLoader MPG114
Summary of Contents for Malone DownLoader MPG114
- Page 1 You must read and understand all of the instructions and cautions supplied with your Malone products(s) prior to installation or use. If you do not understand all of the instructions and cautions, or, if you have no mechanical experience and are not thoroughly familiar with the installation procedures, you should have the product installed by a professional installer.
-
Page 2: Spare Part Listing
Spare Part Listing DownLoader™ Product Parent MPG/ER # MPG114 Revision # Date: 9/25/2019 SKU # DESCRIPTION Image Downloader™ Carrier (MPG114), Single 2018 2007 Release Pins (MPG114) (set of 4) 2002 Strap Bails (MPG114) (set of 2) 2001 Carrier Sleeves (MPG114,117,118) (set of 4) 2005 Carrier Base Pads (MPG114,116,117,118) (set of 4) 2006... - Page 3 MALONE Installation & Loading Instructions - MPG114MD DownLoader Mounting Bolt Washers 70mm 60mm Red Load Straps Safety Tie-Downs Kayak Carriers Load Straps Jawz Universal Adapters Mounting Bolts T-Knobs 12’ Safety Lines . Prior to installation, insert a bolt into the mounting holes in the bottom of the carriers.
- Page 4 MALONE Installation & Loading Instructions - MPG114MD DownLoader Insert a second mounting bolt into the top side unused . Insert a second Mounting Bolt into the top side unused hex hole and down through the Jawz mounting adapter. hex hole and down through the Jawz mounting adapter.
- Page 5 MALONE Installation & Loading Instructions - MPG114MD DownLoader . Confirm the carriers are in alignment. Firmly tighten the T-knobs until both carriers are securely fixed to the cross bars. Installation is now complete. See image 7. . Assurez-vous que les supports soient bien alignés. Vissez fermement les boutons en ‘‘T’’...
- Page 6 MALONE Installation & Loading Instructions - MPG114MD DownLoader . Unlock the release pins. Raise the carriers to the UP position. Re-lock the release pins. Place the strap loops over the carriers as shown. See image 10. . Débloquez les goupilles de verrouillage. Relevez les supports et verrouillez les goupilles.
- Page 7 MALONE Installation & Loading Instructions - MPG114MD DownLoader . Place the strap loops over the kayak so that each loop is positioned directly over a carrier. Position kayak so the cockpit is evenly centered between the carriers. See image 13.
- Page 8 If your kit did not include safety tie-downs, we strongly recommend the use of the Malone MPG316 Sentry Ratchet Tie-Down System or Malone MPG309 SpeedLine Mini Ratchet Tie-Down Always check mounting hardware, load straps and safety tie-down lines for proper and secure attachment before transport.
- Page 9 Form a knot with the free The line should be tight one hand. end and tighten. Form and secure. Repeat for a second knot for second tie-down. safety purposes. Looking for dependable roof racks & cargo carriers? Rely on Malone for quality and long-lasting products.
