PNI CT400 User Manual

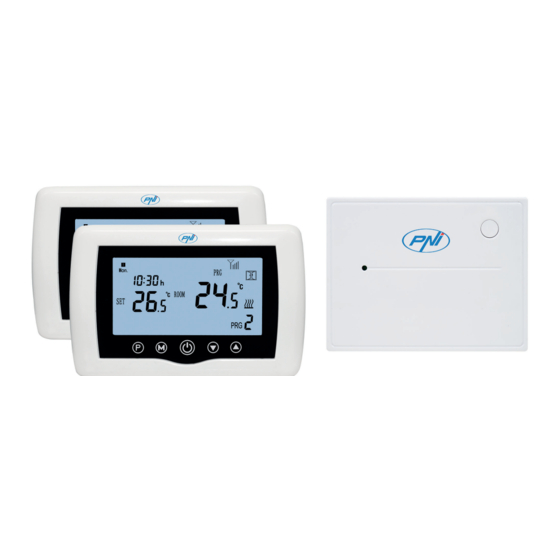

Wireless smart thermostat internet controlled for 2 zones central heating, pumps, electro valve
Hide thumbs Also See for CT400:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Termostat inteligent PNI CT400
fara fir cu WiFi, control 2 zone prin Internet pentru
centrale termice, pompe, electrovalve
Wireless smart thermostat PNI CT400
Internet controlled for 2 zones central heating, pumps,
electro valve
Manual de utilizare / User manual
RO
Manual de utilizare.....................................
EN
User manual...............................................
2
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PNI CT400

Summary of Contents for PNI CT400

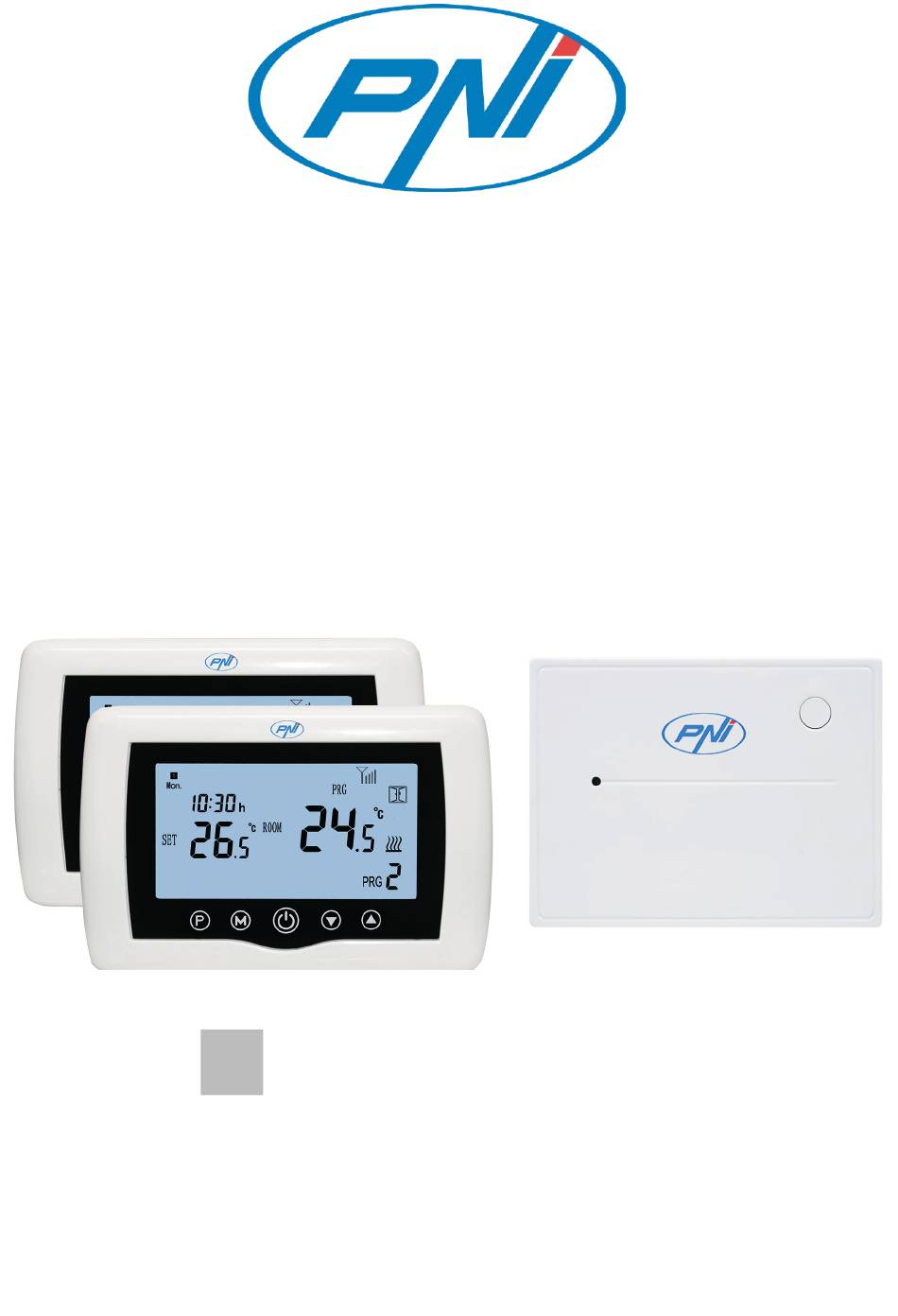

  • Page 1 Termostat inteligent PNI CT400 fara fir cu WiFi, control 2 zone prin Internet pentru centrale termice, pompe, electrovalve Wireless smart thermostat PNI CT400 Internet controlled for 2 zones central heating, pumps, electro valve Manual de utilizare / User manual Manual de utilizare........

  • Page 2: Informatii Generale

    INFORMATII GENERALE Termostatul inteligent PNI CT400 a fost dezvoltat pentru a oferi clientilor un plus de confort zi de zi in spatiile de locuit, la birou sau in alte incinte oferind posibilitatea de a monitoriza si porni / opri sistemele...
  • Page 3 DETALII TEHNICE / SPECIFICATII - Alimentare unitate centrala: 2 baterii AAA - Alimentare unitate receptor: 230VAC 50/60Hz - Tip comanda unitate receptor : 2 x releu NO/NC (normal deschis/) fara potential ( neenergizat) - Parametri de functionare releu: maxim 250 V, maxim 10 Amperi (rezistiv), Curent AC/DC - Compatibil cu toate centralele termice prevazute cu intrare termostat compatibil cu releu NO fara potential.
  • Page 4 INSTRUCTIUNI SI ATENTIONARI LA PRIMA UTILIZARE: 1. Sistemul vine cu unitatile termostat si receptor imperecheate din fabrica. La instalare mai este necesara doar legarea / imperecherea unitatii receptor cu Router-ul Wireless din apropiere. 2. La prima punere in functiune termostatul / Unitatea receptor semnaleaza luminos prin LED = “clipeste rar”...
  • Page 5 la Router/internet cu ajutorul aplicatiei de mobil. Executati aceasta procedura doar daca este absolut necesar: daca legarea unitatii receptor la router-ul wireless a fost reusita dar unitatea termostat nu primeste/trimite timp de 5-10 minute comenzile trimise/ primite catre/de la la aplicatia de mobil iar pictograma lipseste de pe ecran 1.
  • Page 6 - Setare limita maxima temperatura / Setare limita minima temperatura - Protectie anti-inghet CONFIGURARE PROGRAME ZILNICE Aceasta configurare poate fi facuta si din aplicatia de smartphone, procedura pe care o recomandam. De pe unitatea termostat cu ecranul aprins apasati lung butonul P ( 6-7 secunde) pentru a intra in setarile de PROGRAM.
  • Page 7 250 V AC / DC. Regasiti exemple de conectare cu anumite modele de centrale termice la sfarsitul manualului. EXEMPLE DE CONECTARE CU CENTRALE TERMICE - THERMOSTAT PNI CT400* *Instalarea trebuie facuta obligatoriu doar de catre instalator autorizat si doar dupa consultarea manualelor, si verificarea conexiunilor si compatibilitatea acestora.
  • Page 8 3. Vaillant Ecotec Pure 4. Motan Max Optimus INSTALARE FIZICA SI DIMENSIUNI Unitatea termostat poate fi montata in 2 moduri: 1. Pe masa sau pe o zona plana cu suportul alb prezent in colet: 2. Pe perete cu suportul de perete inclus:...

  • Page 9: General Informations

    (WiFi router) close to where thermostat is installed. GENERAL INFORMATIONS The PNI CT400 smart thermostat has been developed to provide customers extra day-to-day comfort in their homes, in the office or other premises, offering the ability to monitor and turn on or off heating systems either automatically scheduled for every day of week, either remotely, anytime and anywhere via the Internet with dedicated app for Android or iOS Smartphone for two distnctive zones.

  • Page 10: Main Unit Description

    Main unit power supply: 2 AAA batteries - Receiver power supply: 230VAC 50 / 60Hz - Receiver unit command type: NO Relay (normally open) 10 Amps max not energized / dry contact - Relay parameters: 250 V max, 10 Amps max (rezistiv), AC/DC curent - Set point range temperature: 5 - 35 C ( 0.5 C step)
  • Page 11 FIRST USE WARNINGS AND INSTRUCTIONS 1. The system comes with main unit and receiver paired from factory. Before use, you only need to pair the receiver unit with the nearby Wireless Router. 2. At first start, the thermostat / receiver unit signals by LED 1 = “ slow blinks” that means it is necessary to connect unit to the wireless router with Internet access.
  • Page 12 Perform this procedure only if absolutely necessary: if the connection of the receiver unit to the wireless router was successful but the thermostat unit does not receive / send for 5-10 minutes the commands sent / received to / from the mobile application and the icon is missing from screen.

  • Page 13: Advanced Parameter Settings

    - Timed programming (Schedule) - Temperature correction - allows the correction of the read temperature compared to another standard thermometer. - Set maximum temperature limit / Set minimum temperature limit - Frost protection SET UP DAILY PROGRAMS This setup n can also be done from smartphone app, wich we recommend. With the on-screen display, press and hold the P button (6-7 seconds) to enter the PROGRAM settings.
  • Page 14 250 V AC / DC . Find examples of connections with certain models of Gas boiler Systems at the end of the user manual.. CONNECTION EXAMPLES WITH GAS BOILER SYSTEMS- THERMOSTAT PNI CT400 * * The installation must be done only by authorized installer and only after consulting the user manuals, and checking the connections and their compatibility.

  • Page 15: Installation And Dimensions

    3. Vaillant Ecotec Pure 4. Motan Max Optimus INSTALLATION AND DIMENSIONS The main and receiver unit can be mounted in 2 ways: 1. Table or flat surface area with the white holder inside package: 2. On the wall with wall holder:...
  • Page 16 Declaración UE de conformidad simplificada SC ONLINESHOP SRL declara que el Termostato inteligente PNI CT400 cumple con la Directiva EMC 2014/30/EU, la Directiva RED 2014/53/ EU y la Directiva LVD 2014/35/EU. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: https://www.mypni.eu/products/7555/download/certifications...
