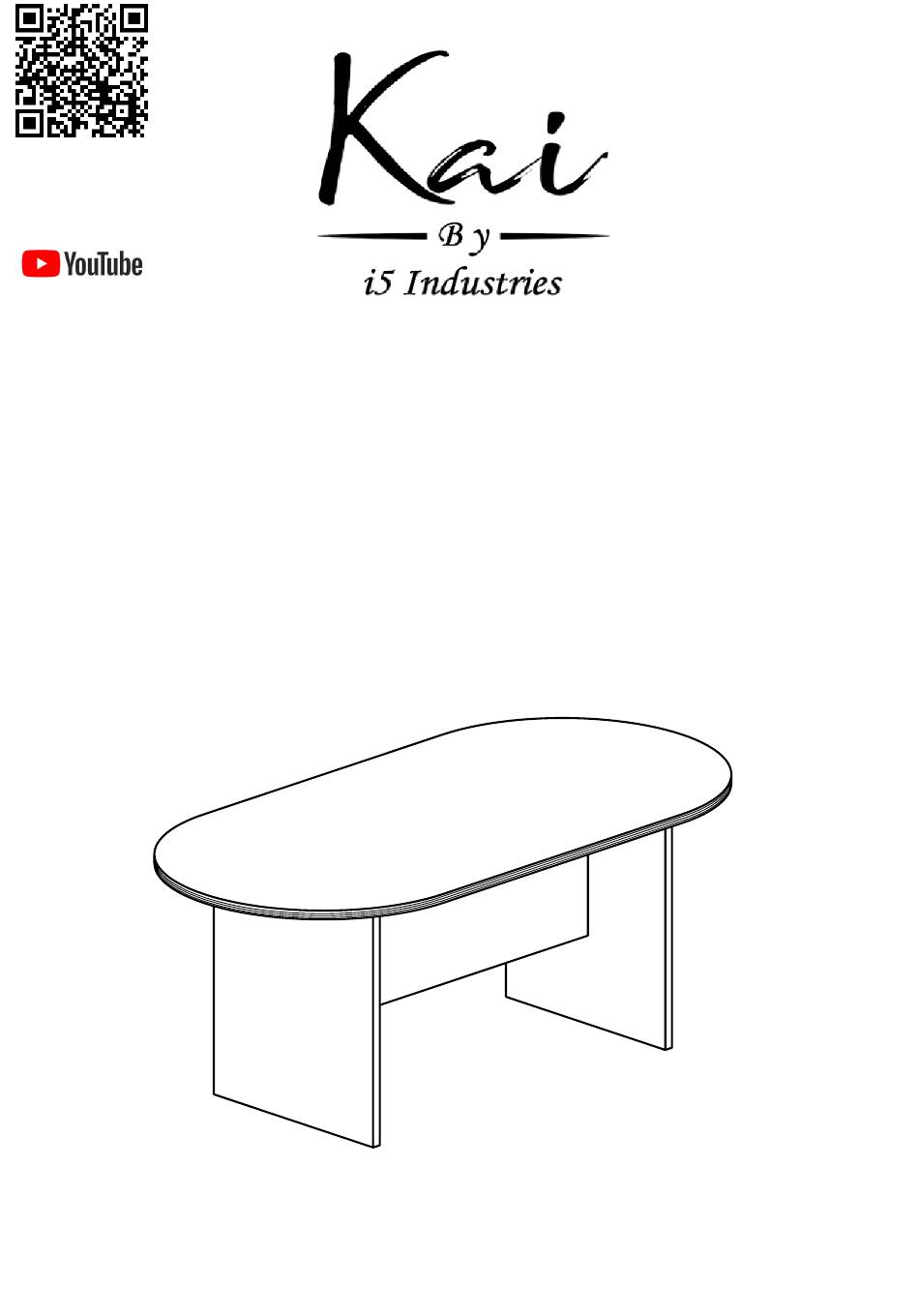

- Page 1 Scan Me to watch Assembly Instructions Assembly: Conference Table MODELS: CT71 71” Conference Table...
- Page 2 INFORMATION 71” CONFERENCE TABLE • Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched. • Check to be sure that you have all parts and hardware. •...
- Page 3 PARTS & HARDWARE 71” CONFERENCE TABLE PART QTY. MODESTY PANEL RIGHT SIDE END PANEL LEFT SIDE END PANEL PART QTY. Metal Pin Cam Lock Set Screw Cap Sticker Adjustable Glide Wood Dowel...
- Page 4 1. HARDWARE INSTALLATION 71” CONFERENCE TABLE Assemble modesty panel with end panels. 2X (F) 2X (A) Insert by hand only 7x (B)
- Page 5 2. HARDWARE INSTALLATION 71” CONFERENCE TABLE Place all hardware in correct holes. Once that is complete line the holes up and place the base onto the top. Use set screw (C) to lock all cams and metal pins in place. 7X (F) 7X (A) Insert by hand only...
- Page 6 3. PUT ON CAP STICKERS 71” CONFERENCE TABLE Note: Place cap stickers on any exposed holes. TWO PEOPLE ARE REQUIRED TO FLIP AND MOVE THIS MODEL 11X (D)
