Summary of Contents for i5 Industries Kai Credenza with Double Lateral Files C2471P-4

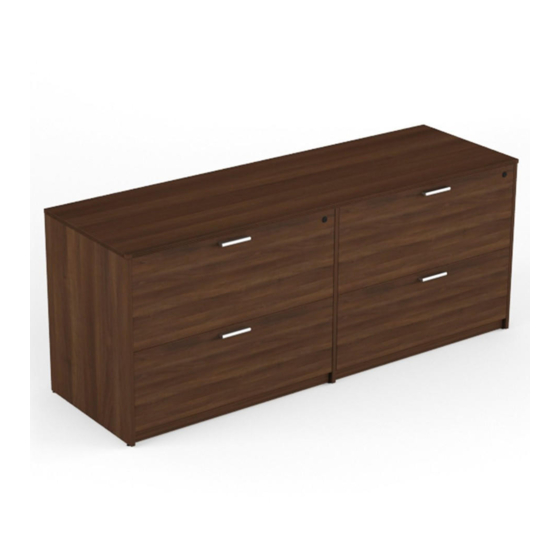

- Page 1 Assembly: Credenza with Double Lateral Files MODELS: C2471P-4 24x71 Credenza with 2 Lateral Files...
- Page 2 INFORMATION CREDENZA STORAGE • Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched. • Check to be sure that you have all parts and hardware. • Remove all wrapping materials, including staples &...
-
Page 3: Modesty Panel
PARTS & HARDWARE CREDENZA STORAGE PART QTY. MODESTY PANEL LEFT & RIGHT SIDE END PANELS LATERAL FILE PART QTY. Metal Pin Cam Lock Set Screw Cap Sticker Adjustable Glide Wood Dowel Grommet Hole Cover... -
Page 4: Hardware Installation
1. HARDWARE INSTALLATION CREDENZA STORAGE Complete this step for both the left and right end support. 3X (A) 3X (F) Insert by hand only... - Page 5 2. HARDWARE INSTALLATION CREDENZA STORAGE Insert by hand only 9X (A) 9X (F)
- Page 6 3. ASSEMBLE END SUPPORTS TO MODESTY CREDENZA STORAGE 6X (B) 6X (C)
- Page 7 CREDENZA STORAGE PLACE TOP ON ASSEMBLED MODESTY AND END SUPPORTS...
- Page 8 5. PUT IN GROMMETS & PUT ON CAP STICKERS CREDENZA STORAGE Note: Place cap stickers (D) on any exposed holes. 1X (G) 6. REMOVE TOP DRAWER OF LATERAL FILES To release drawer, push the left tab down and right tab up.
- Page 9 7. REMOVING TOP OF LATERAL FILES CREDENZA STORAGE Remove the 6 screws in the L-Shaped Brackets Tap gently with mallet on the four corners of the top to loosen the wooden dowels.
- Page 10 8. INSERT LATERAL FILES INTO CREDENZA CREDENZA STORAGE 9. FASTEN THE LATERAL FILES TO THE CREDENZA Replace the 12 Screws with the same L-Shape Brackets...
- Page 11 10. REPLACE TOP DRAWERS OF LATERAL FILES CREDENZA STORAGE Place drawers back on the tracks and push them back into place.
