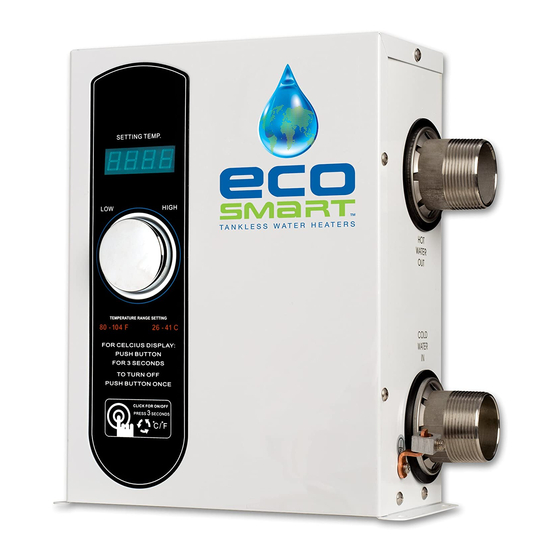

ECO SPA & POOL OWNERS MANUAL & INSTALLATION GUIDE
MODELS: ECO SPA 5.5-11 / ECO POOL 18-27
IMPORTANT SAFETY INSTRUCTIONS ,INSTALLATIONIN STRUCTIONS,USER INSTRUCTIONS
As when installing or using any high voltage electrical appliance, basic safety precautions should always be
followed. Under no circumstances should you attempt to clean, install, inspect, repair, disassemble or other-
wise service this water heater without first shutting off all power to the unit directly at the breaker box.
SERIOUS BODILY INJURY OR DEATH COULD OCCUR IF YOU IGNORE THIS WARNING.
THIS PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN & PLUMBER IN ACCORDANCE WITH-
Article 680 of the National Electrical Code, NFPA 70 and with the requirements of the authority having jurisdiction
and all applicable national, state, provincial, and local electrical codes.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY AND COMPLETELY PRIOR TO INSTALLATION & USE.
FAILURE TO DO SO COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY OR DEATH & VOID YOUR
WARRANTY.
¨ ”
¨ •
IMPORTANTSAFETYINSTRUCTIONS
READANDFOLLOWALLINSTRUCTIONSANDSAVETHESEINSTRUCTIONS.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoSmart ECO SPA 5.5
Summary of Contents for EcoSmart ECO SPA 5.5
- Page 1 ECO SPA & POOL OWNERS MANUAL & INSTALLATION GUIDE MODELS: ECO SPA 5.5-11 / ECO POOL 18-27 IMPORTANT SAFETY INSTRUCTIONS ,INSTALLATIONIN STRUCTIONS,USER INSTRUCTIONS As when installing or using any high voltage electrical appliance, basic safety precautions should always be followed. Under no circumstances should you attempt to clean, install, inspect, repair, disassemble or other- wise service this water heater without first shutting off all power to the unit directly at the breaker box.
- Page 2 Congratulations on the purchase of your Spa/Pool Heater! You have purchased the most techno- logically- advanced Spa/Pool heater in the market today. Your ECOSMART Spa/Pool Heater is backedbytheindustry'smostcomprehensivewarranty. To get the best performance and energy savings from your Spa/Pool heater, it is important that it be installed in accordance with our instructions and the electrical and plumbing codes applicable to your area, and that you read this manual thoroughly for important operating instructions and tips.
- Page 3 2. INSTALLATION LOCATION Ecosmart heaters are designed for either indoor or outdoor use. Units must be mounted on a level ¨ • ¨ • base parallel to the ground. Allow6 clearance at sides and at least 18 clearance at top and front for any maintenance or repairs.
- Page 4 Pool Installation Diagram Spa/Pool return Inlet to Spa/Pool SHUT OFF VALVE MUST BE INSTALLED AT INLET OF UNIT. ELECTRICAL AND PLUMBING CONNECTIONS MUST BE FOLLOWED TO MEET ALL LOCAL CODES AND REQUIREMENTS. After tightening both fittings at the water heater, RUN our pump to allow water to run through the Spa/Pool heater for at least 5-10 minutes.
- Page 5 ALL UNITS HAVE A 3 MINUTE TIME DELAY ONSTART. Electricalspecificationsbymodel Wire connection to breaker / Model Eco Spa 5.5 Wire connection to breaker / Model Eco Spa 11 ECO SPA 5 5 ECO SPA 11...
- Page 6 Wire connection to breaker/Model Eco Pool 18 Wire connection to breaker/Model Eco Pool 27 ECO POOL 18 ECO POOL 27 L2 L2 L1 L1 L3 L3 L2 GRND GRND DOUBLE POLE BREAKER DOUBLE POLE BREAKER DOUBLE POLE BREAKER DOUBLE POLE BREAKER DOUBLE POLE BREAKER Wire &...
- Page 7 TURN CONTROL KNOB TO SET YOUR DESIRED SPA/POOL TEMPERATURE. WHEN THE SET TEMPERA- TURE IS REACHED THE HEATER WILL RUN IDLE AND CONSUME NO ENERGY. Digital Control Temperature Setting: All Ecosmart models come with a digital control temperature setting located in the front panel that can be easily set from 80 -104...
- Page 8 WATER TREATMENT: For the protection of your spa and pool equip- ment and health, it is important that your ¡ ã ¡ ã ¡ ã water be chemically balanced ¡ ã ¡ ã ¡ ã CAUTION:CorrosivewaterVOIDSall warranties.* Free Chlorine MUST NOT EXCEED 5 ppm.
