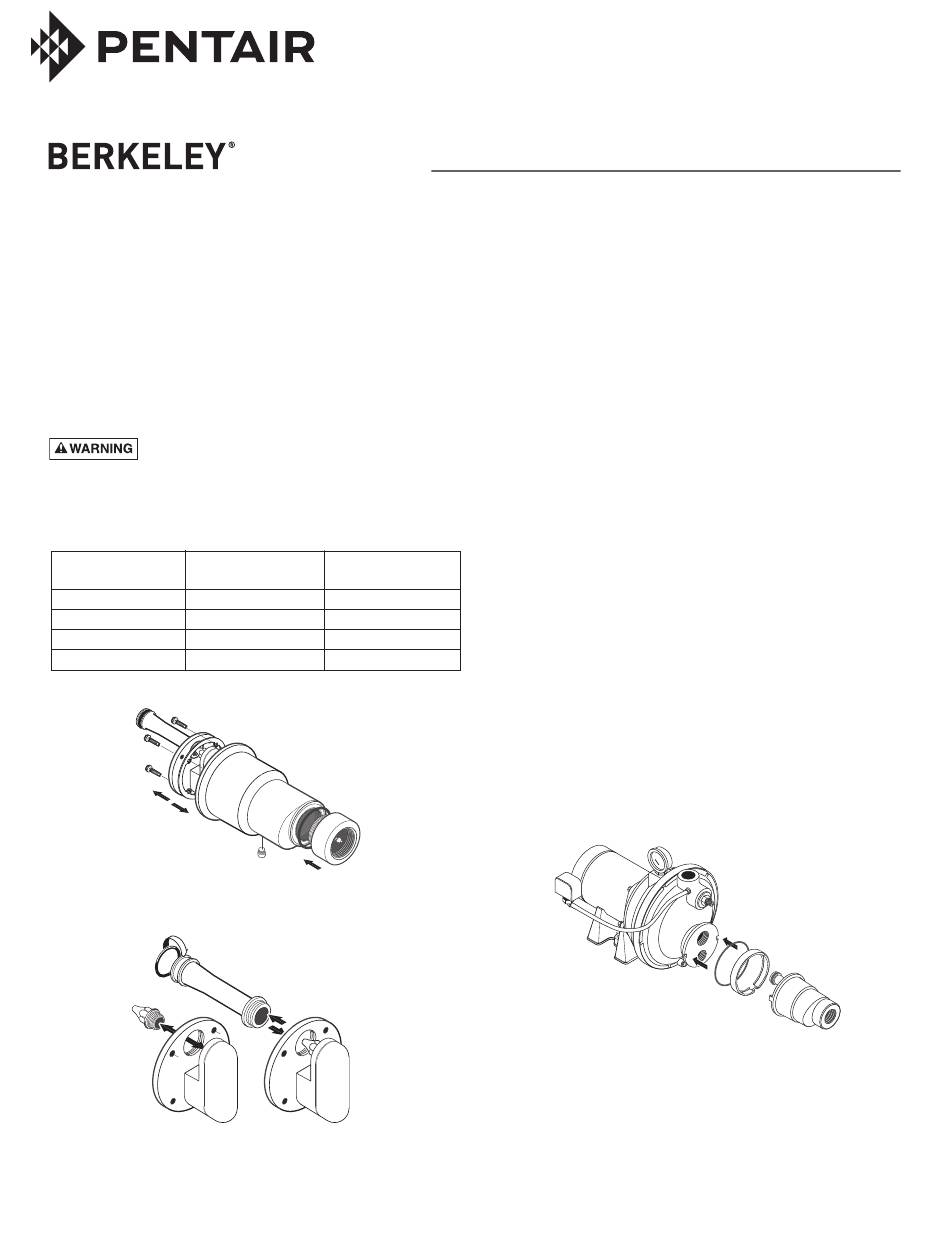

Pentair BK4875 Installation, Operation & Parts Manual

Description

Corrosion resistant shallow well ejector package (Model BK4875)
includes a plastic shallow well ejector, necessary mounting
hardware, and an assortment of venturis and nozzles to suit your
pump model. For use with Berkeley Pump Models 3PL, 5PL, 7PL,
10PL, 10PLS11C and 15PLS11C (See Page 7 for Performance).

General safety information

Follow safety instructions in your pump owner's manual.
Be sUre pump is turned off and all pressure is re leased
before installing shallow well ejector.

california proposition 65 Warning

This product and related accessories contain
chemicals known to the State of California to cause cancer,
birth defects or other reproductive harm.
taBle i: VentUri / nozzle sizinG
pump
model number
3PL
5PL
7PL, 10PLS11C
10PL, 15PLS11C
figure 1
figure 2
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.BERKELEYPUMPS.COM
PH: 888-782-7483
© 2013 Pentair, Ltd. All Rights Reserved.
nozzle Venturi
number
#51 N32P-72
#51 N32P-63
#54 N32P-64
#51 N32P-65
2556 0796
2557 0796
Installation, operatIon & parts Manual
Premium Shallow Well

DisassemBly

Refer to Figure 5 for part description and part list.
1. Remove the 4 screws that fasten the insert assembly into
ejector body (See Figure 1).
2. Unscrew the venturi from the ejector body insert (See Figure
2).
3. Use 5/8" deepwell socket to gently unscrew nozzle from ejector
body insert (See Figure 2).
4. Select the correct nozzle and venturi from Table I.
5. Reassemble as follows.

assemBly

1. Select nozzle and venturi according to Table I.
2. Thread nozzle into ejector body insert (See Figure 2). Use 5/8"
socket to seat nozzle. Do not overtighten.
3. Install small O-Ring in groove on venturi (See Figure 2). Thread
venturi into ejector body insert (See Figure 1) hand tight.
4. Install O-ring in groove on end of ejector body (See Figure 1).
Thread check valve onto ejector body (See Figure 1) hand
tight. Be sure O-Ring is seated in groove.
5. Install gasket on step in ejector body; install ejector body insert
in ejector body (be sure it seats) with D-shaped opening DOWN
(toward AVC plug) and venturi UP (See Figure 1).
6. Use four screws to mount insert assembly in ejector body
(See Figure 1). Be sure insert assembly is seated and all four
screws are well started before tightening any screw. Do not
overtighten.
note: When insert assembly is correctly installed and ejector body
is right side up, AVC port will be on bottom of ejector body and
molded-in part number on insert (N40-39P) will be at 9:00 o'clock
position as you look into ejector body.

installation

1. Loosen stainless steel clamp (Figure 5, Ref. No. 2) until it fits
over ejector body flange.
2. Place O-ring in circular groove on face of pump flange (See
Figure 3).
figure 3
Model BK4875
Ejector Package
1199 0794 NF
BE549 (Rev. 02/25/13)
