Product modifications

•

The product has been designed, manufactured and certified as defined by ELATEC.

Any product modifications not expressly approved by ELATEC, including – but not limited to – modifications of antennas

or other radio-related components, is not allowed and will void the warranty and all approvals granted to the product.

If you are unsure about any part of the safety information above, contact ELATEC support.

Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible

for any damage or injuries resulting from any misuse of the product.

4 TECHNICAL DATA

The reader is equipped with the following antennas:

HF antenna (13.56 MHz)

Dimensions: 55 x 41 mm / 2.17 x 1.61 inch

Number of turns: 3

LF antenna (125 kHz)

Diameter: 20.5 mm / 0.81 inch

Number of turns: 229

BLE (2.4 GHz)

The antenna for the BLE module is integrated in the BLE chip.

For more information, refer to the related product data sheet or other technical documents.

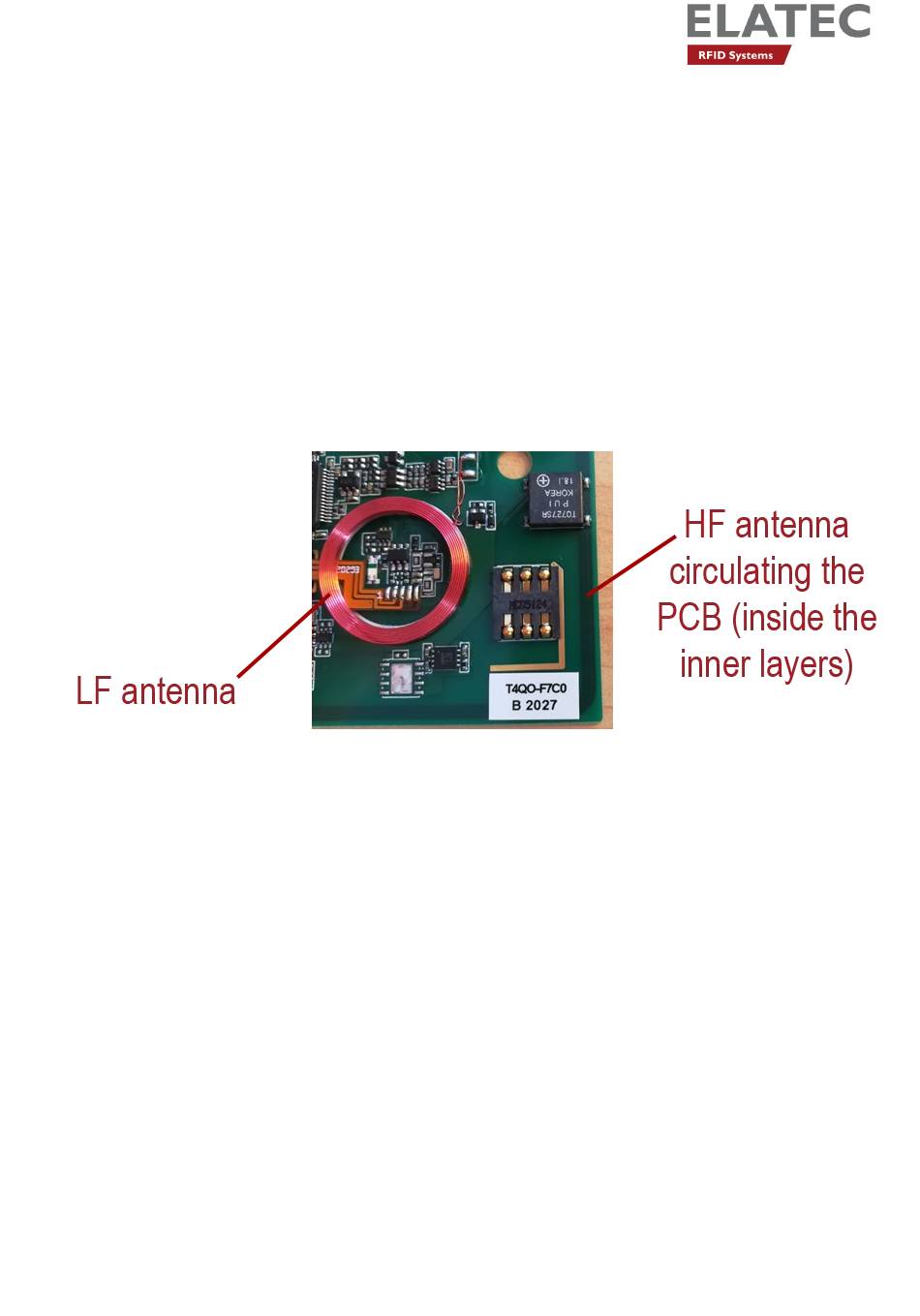

PCB contained in TWN4 Slim
