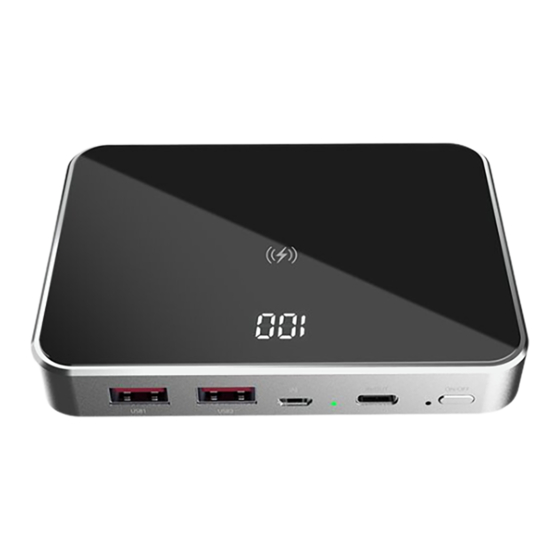

- Page 1 PRESTIGIO GRAPHENE PD PRO Power bank User Manual...
- Page 2 GRAPHENE PD PRO Read Before Using Thank you for choosing the Prestigio Graphene PD Pro power bank. To ensure that you are using the charger correctly and safely, please read this manual before you start. Do not discard this manual, as you may have to refer to it in the future.
- Page 3 GRAPHENE PD PRO Package includes Prestigio Graphene PD Pro power bank 1 pc. Power adapter 20V/3A 1 pc. Quick user guide 1 pc. Warranty card 1 pc.

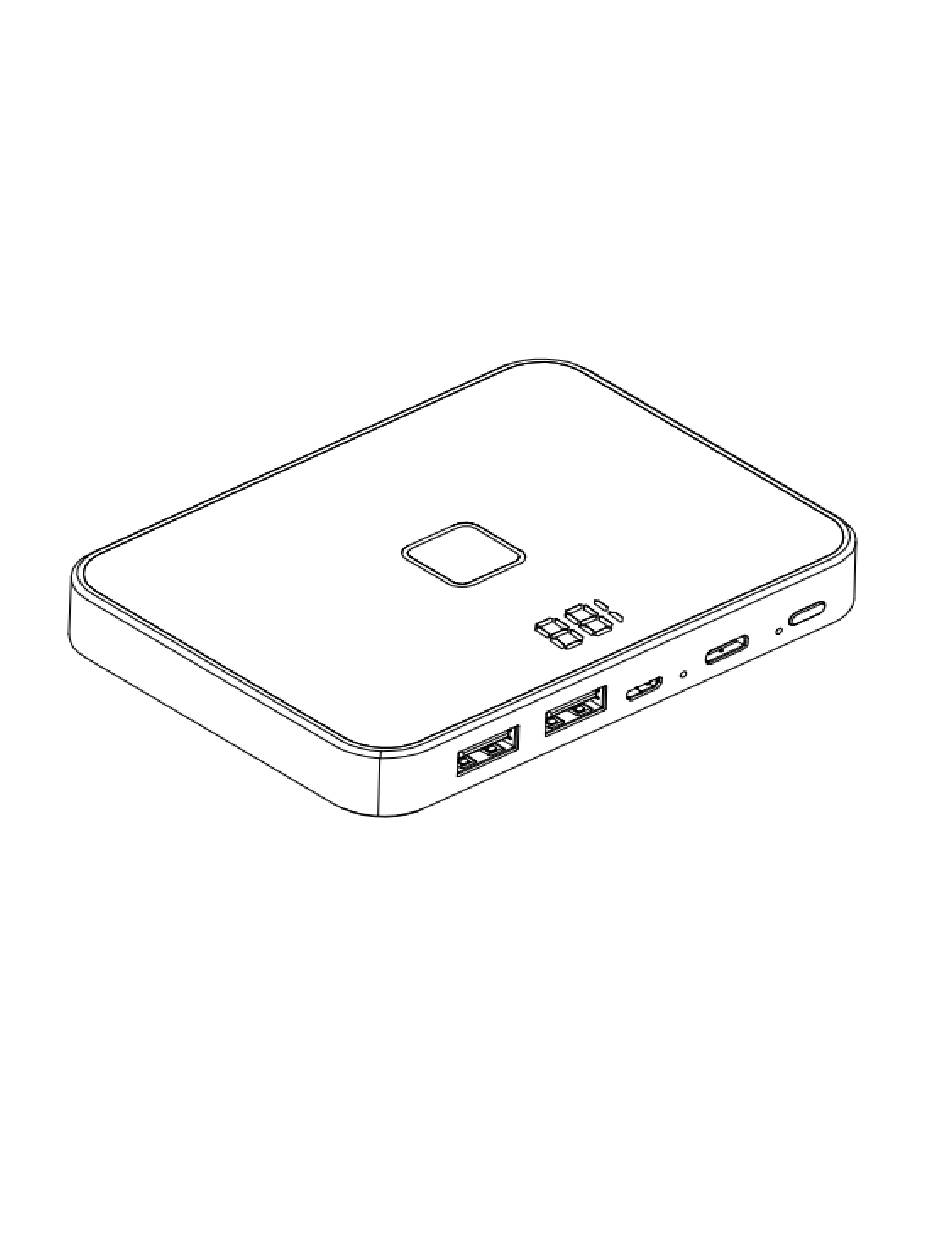

- Page 4 GRAPHENE PD PRO Components and Interface Elements 1, 2. USB-A 3. Micro-USB 4. Port use indicator 5. USB-С 6. Wireless charging indicator 7. On button 8. Battery level indicator 9. Spot where you should align with the center of your...
- Page 5 GRAPHENE PD PRO Technical Specifications Weight 0.29 kg Dimensions 110*80*17 mm (l*w*h) Body material Aluminum, tempered glass 20,000 mA per hour (74 W per Capacity hour) USB-А1 (output) QC3.0 (5V3A/9V2A/12V1.5A) USB-А2 (output) QC3.0 (5V3A/9V2A/12V1.5A) USB-B (input) QC3.0 (5V3A/9V2A/12V1.5A) USB-C (output) QC3.0/PD (5V3A/9V2A/12V1.5A)
- Page 6 GRAPHENE PD PRO Operation Guide Fully charge the device before first use, using the power adapter included. Wired charging Connect the device that you would like to charge to the respective port by using an appropriate cable. Attention! You should only use quality cables to charge this device, as this will impact your charging speed.
- Page 7 GRAPHENE PD PRO spot. Note that the smartphone must support wireless charging. 4. The indicator will continue to blink regularly throughout the wireless charging process to indicate that the charger is in use. Attention While charging, do not place any metal objects (including paper clips, coins, keys, etc.) or plastic bank cards between...
- Page 8 GRAPHENE PD PRO Charging multiple devices The Graphene PD Pro portable charger can be connected to several devices at the same time for wired or wireless charging. To charge multiple devices, simply connect them to the charger using any available methods.
- Page 9 GRAPHENE PD PRO Safety Guidelines 1. Do not open the portable charger or take it apart. 2. Do not attempt to replace the built-in batteries. 3. Do not break the charger or the included batteries. 4. Keep away from ignition sources.
- Page 10 GRAPHENE PD PRO 9. The charger cannot come into contact with moisture, oil, chemicals or any organic fluids. We do not recommend using the charger in areas with high humidity. 10. Do not use the charger in very dusty places.
- Page 11 GRAPHENE PD PRO LED Indicators The port use indicator One or several Prestigio shows a solid green Graphene PD Pro ports are in light. use. The wireless charging Prestigio Graphene PD Pro is indicator shows a in wireless charging mode.
- Page 12 GRAPHENE PD PRO Troubleshooting General issues - If you run into any issues, always start troubleshooting by ensuring that the charger is not damaged, covered in any substances or has an unpleasant odour. If you discover any of the above, stop using the charger immediately and contact the service centre.
- Page 13 GRAPHENE PD PRO -Connect it to the included power adapter for at least 10 minutes - Ensure that the socket you have plugged the adapter into is receiving power The device is not - Ensure that the socket you charging. The battery...
- Page 14 GRAPHENE PD PRO - Ensure that no other objects were placed between the charger and the smartphone. - Take the smartphone out of its case. - Ensure that your smartphone is properly aligned with the charging pad and try repositioning your smartphone by moving it a little in different directions.
- Page 15 GRAPHENE PD PRO Transportation and Storage Rules 1. The charger is not intended for use in residential, business, or industrial zones with hazard risks. 2. We recommend storing and using the charger in environments where temperatures range from 0 °C to +45 °C and the relative humidity is 10~80%.
- Page 16 GRAPHENE PD PRO © 2020 Prestigio. EN All rights reserved. All specified trademarks and names, as well as logos and other symbols are property of their respective owners. Prestigio reserves the right to make changes to this document without prior notice of the Customer and shall not be responsible for any potential negative consequences which may arise from technical and/or typographical errors and/or the use of an outdated version of this document.
