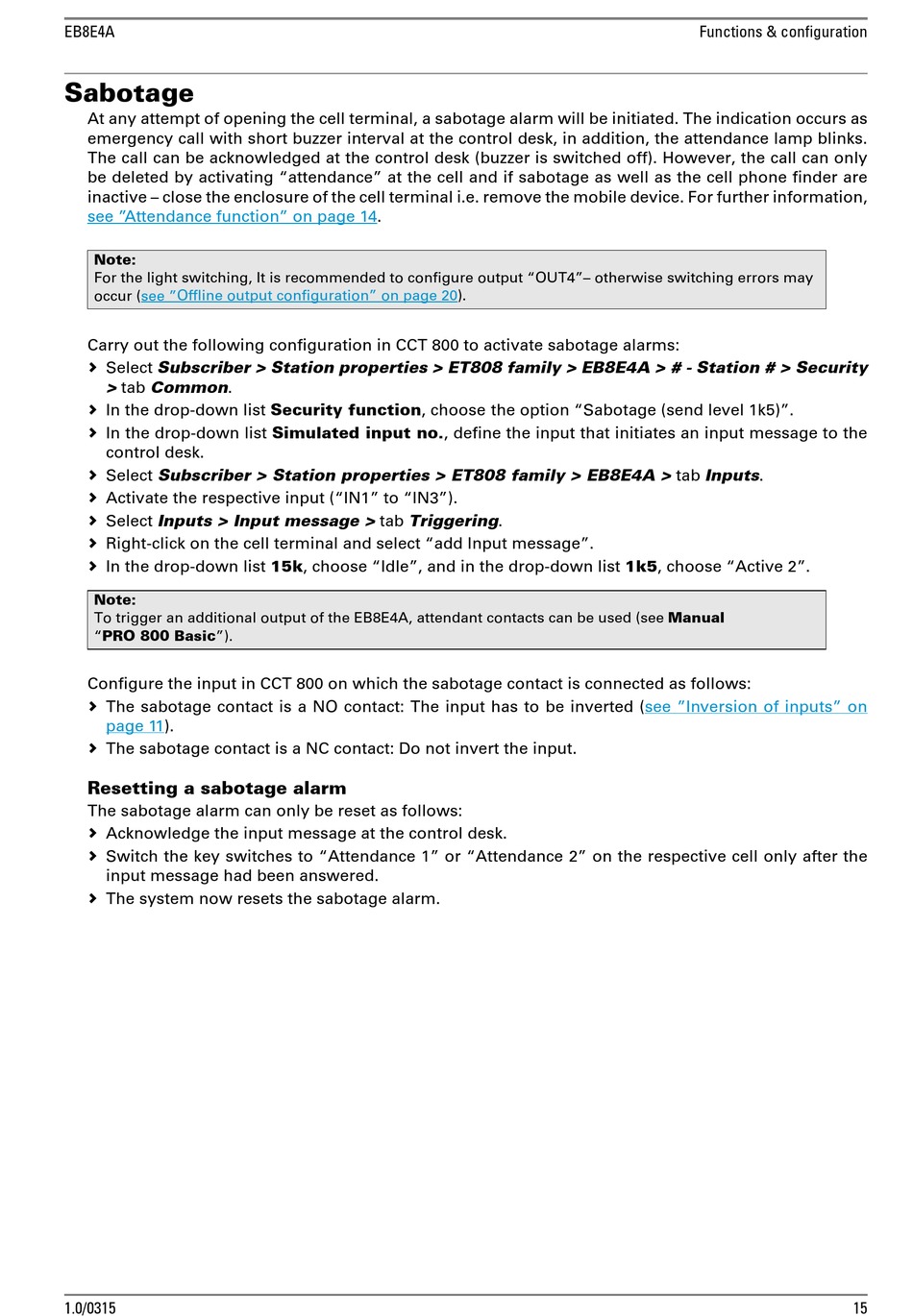

EB8E4A

Sabotage

At any attempt of opening the cell terminal, a sabotage alarm will be initiated. The indication occurs as
emergency call with short buzzer interval at the control desk, in addition, the attendance lamp blinks.
The call can be acknowledged at the control desk (buzzer is switched off). However, the call can only
be deleted by activating "attendance" at the cell and if sabotage as well as the cell phone finder are
inactive – close the enclosure of the cell terminal i.e. remove the mobile device. For further information,
see "Attendance function" on page
Note:
For the light switching, It is recommended to configure output "OUT4"– otherwise switching errors may
occur (see "Offline output configuration" on page
Carry out the following configuration in CCT 800 to activate sabotage alarms:
 Select Subscriber > Station properties > ET808 family > EB8E4A > # - Station # > Security
> tab Common.
 In the drop-down list Security function, choose the option "Sabotage (send level 1k5)".
 In the drop-down list Simulated input no., define the input that initiates an input message to the
control desk.
 Select Subscriber > Station properties > ET808 family > EB8E4A > tab Inputs.
 Activate the respective input ("IN1" to "IN3").
 Select Inputs > Input message > tab Triggering.
 Right-click on the cell terminal and select "add Input message".
 In the drop-down list 15k, choose "Idle", and in the drop-down list 1k5, choose "Active 2".
Note:
To trigger an additional output of the EB8E4A, attendant contacts can be used (see Manual
"PRO 800 Basic").
Configure the input in CCT 800 on which the sabotage contact is connected as follows:
 The sabotage contact is a NO contact: The input has to be inverted
page 11).
 The sabotage contact is a NC contact: Do not invert the input.
Resetting a sabotage alarm
The sabotage alarm can only be reset as follows:
 Acknowledge the input message at the control desk.
 Switch the key switches to "Attendance 1" or "Attendance 2" on the respective cell only after the
input message had been answered.
 The system now resets the sabotage alarm.
1.0/0315
14.
20).
Functions & configuration
(see "Inversion of inputs" on
15
