- Page 1 Manual | EN CX2900-0192 Battery pack for CX2100-0914 2/10/2021 | Version: 1.4...
-
Page 3: Table Of Contents
Care .............................. 26 Maintenance ............................ 26 7 Decommissioning............................ 27 Disassembly and disposal ....................... 27 8 Error handling and diagnostics...................... 28 Battery pack LEDs ........................... 28 Faults ............................... 29 9 Technical data............................ 30 10 Appendix .............................. 32 10.1 Accessories ............................. 32 10.2 Certifications ............................ 33 10.3 Support and Service ........................ 34 CX2900-0192 Version: 1.4... - Page 4 Table of contents Version: 1.4 CX2900-0192...
-
Page 5: Notes On The Documentation
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding applications or registrations in various other countries. ® EtherCAT is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Explanation Of Symbols And Font Conventions
It is essential to observe this warning. Non-compliance can lead to damage to property or equipment or en- vironmental damage. Symbols indicating further information or tips: Tip or pointer This symbol indicates information that contributes to better understanding. Version: 1.4 CX2900-0192... - Page 7 Input or selection values are shown in quotes, e.g. In the Resolution menu, enter the value “1280x800”. Programmcode Program code is indicated by a different font and highlighted in color, e.g. VAR_OUTPUT BUSY :BOOL; ERR :BOOL; ERRID :UDINT; END_VAR CX2900-0192 Version: 1.4...
-
Page 8: Documentation Issue Status
CX2100-0914 power supply unit for CX20x0 Retaining the documentation This documentation is part of the CX2900-0192 battery pack. Keep the documentation in the immediate vicinity of the battery pack throughout its entire service life. Ensure that personnel have access to the documentation at all times. -
Page 9: Safety
Beckhoff Automation GmbH & Co. In addition, the following actions are excluded from the liability of Beckhoff Automation GmbH & Co. KG: • Failure to comply with this documentation. -
Page 10: Safety Instructions
The following product safety label is located on the right side of the battery pack. CAUTION: · Do not charge in a gas tight container. · Do not short the battery terminals. · Do not incinerate. · Flush with water at once if contact is made with electrolyte (Acid). Version: 1.4 CX2900-0192... -
Page 11: Transport And Storage
Therefore, during transport please protect your device from: • mechanical stress and • use the original packaging. Dimensions and weight of the individual modules Battery pack CX2900-0192 Power supply unit CX2100-0914 Dimensions (W x H x D) 163 mm x 90 mm x 85 mm... -
Page 12: Storage
Recharge the battery pack after 12 months at the latest. Avoid deep discharge of the battery pack. Table 2: Self-discharge behavior at 25°C. Period Battery pack charge (%) after 3 months 91% charge after 6 months 82 % charge after 12 months 64 % charge Version: 1.4 CX2900-0192... -

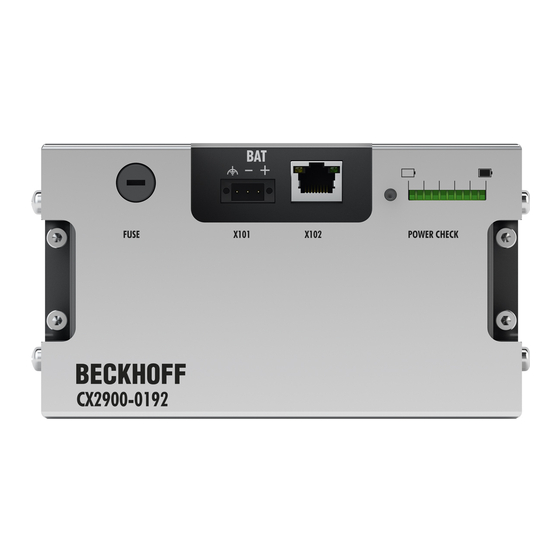

Page 13: Product Overview
RJ45 connection X102 for the data connection between the battery pack and the power supply unit CX102-0914. Operating button for the diagnostic LEDs. Diagnostic LEDs indicate the charge state and the operational readiness. Warning label with safety instructions. CX2900-0192 Version: 1.4... -
Page 14: Name Plate
Product overview Name plate A name plate can be found on the left-hand side of the battery pack housing. Made in Germany Beckhoff Automation GmbH & Co. KG Hülshorstweg 20, D-33415 Verl Documentation: www.beckhoff.com Model CX2900-0192 Serial No. Date 24.12.2015 Only use with CX2100-0914 Table 4: Legend for the battery pack name plate. -
Page 15: Connections
An RJ45 patch cable (CAT5) is used for the connection. The LINK LED is lit when the battery pack and the power supply unit are connected. The CHARGE LED is lit when the battery pack is being charged. CX2900-0192 Version: 1.4... -
Page 16: Commissioning
4. Push the fuse holder back into the fuse compartment. 5. Lock the fuse compartment with a slight clockwise turn. ð You have inserted the fuse successfully. A faulty fuse can be replaced in the same way. Dispose of faulty fuses according to national regulations. Version: 1.4 CX2900-0192... -
Page 17: Installation On The Mounting Rail
The battery pack must not be mounted vertically on the DIN rail. Otherwise vibrations in conjunction with the weight of the battery pack could result in the pack moving or even falling off the DIN rail. Installation on the mounting rail Install the battery pack, type CX2900-0192, on a mounting rail of type TS35/15. CX2900-0192 Version: 1.4... - Page 18 3. Tighten the four screws to secure the battery pack on the mounting rail. ð You have mounted the battery pack securely and successfully once it hangs vertically from the mounting rail and all four screws were tightened. Version: 1.4 CX2900-0192...
-
Page 19: Power Supply With Cx2100-0914 Power Supply Unit
(data transfer via K- or E-bus). The spring-loaded terminals identified as "+", "-" and "PE" supply the Bus Terminals via the power contacts and the sensors or actuators connected to the Bus Terminals. CX2900-0192 Version: 1.4... - Page 20 • Always disconnect the 24 V line. Devices connected to the Embedded PC, which have their own power supply (e.g. a Panel) must have the same potential for "PE" and "0 V" as the Embedded PC have (no potential difference). Version: 1.4 CX2900-0192...
-
Page 21: Observe The Ul Requirements
• Or the power supply must originate from a voltage source that corresponds to NEC class 2. An NEC class 2 voltage source must not be connected in series or parallel with another NEC class 2 voltage source. CX2900-0192 Version: 1.4... -
Page 22: Connect Battery Pack
5.2.3 Connect battery pack Together with the CX2100-0914 power supply unit, the CX2900-0192 battery pack is capable of supplying power to the Embedded PC in case of power failures. The power supply unit and the battery pack are connected to each other by two cables. In normal operation the battery pack is charged by the power supply unit. - Page 23 The upper LED (LINK) lights up when the battery pack and the power supply unit are connected. The lower LED lights up when the battery pack is being charged. CX2900-0192 Version: 1.4...
-
Page 24: Supplying External Devices
ð In normal operation the CX2100-0914 power supply unit supplies power to the external device. If you use a battery pack, the device will continue to be supplied with power in the event of a power failure. Note the Behavior in case of a power failure [} 25]. Version: 1.4 CX2900-0192... - Page 25 There are technical reasons for this behavior, which may lead to problems with connected devices. Be aware of this behavior for your device configuration. Fig. 2: Behavior in case of a power failure, oscillogram of the CX2100-0914 power supply unit. CX2900-0192 Version: 1.4...
-
Page 26: Care And Maintenance
Care and maintenance Care and maintenance Care Protect the battery pack CX2900-0192 from a deep discharge so that the service life of the battery pack is not impaired. Avoid a deep discharge especially during the storage (see: Storage [} 12]). Maintenance Limited lifetime The battery pack CX2900-0192 has a limited service life and must be replaced every five years. -
Page 27: Decommissioning
Disposal Dismantle the battery pack housing and dispose of the components according to national electronics scrap regulations. The internal battery must not be opened or dismantled and must be disposed of according to national electronics scrap regulations. CX2900-0192 Version: 1.4... -
Page 28: Error Handling And Diagnostics
This indicates operational readiness of the battery pack. • The display flashes, if the fuse in the battery pack is faulty or not inserted. • During a firmware update 4 LEDs are lit as long as the update is in progress. Version: 1.4 CX2900-0192... -
Page 29: Faults
5. Any components / software used The quickest response will come from support / service in your country. Therefore please contact your regional contact. For details please refer to our website at www.beckhoff.de or ask your distribution partner. CX2900-0192 Version: 1.4... -
Page 30: Technical Data
Technical data Technical data Dimensions Technical data CX2900-0192 Power supply via the CX2100-0914 power supply unit Wire cross section 1.5 mm² Dielectric strength 500 V (supply / internal electronics) Capacitance 12 V, 3.4 Ah (20 h discharge) 12 V, 3.1 Ah (10 h discharge) 12 V, 2.8 Ah (3 h discharge) - Page 31 • 4 – 6 weeks. • 40 – 60 weeks, if the fuse was removed from the battery pack. From hardware version 1.1 the charged battery pack has the following operating times • 40 – 60 weeks. CX2900-0192 Version: 1.4...
-
Page 32: Appendix
– cartridge consisting of chassis and 60 mm fan – simple exchange in the field due to wireless installation – Weight: approx. 30 g – dimensions (W x H x D) 67 x 62 x 16 mm Version: 1.4 CX2900-0192... -
Page 33: Certifications
All products of the Embedded PC family are CE, UL and EAC certified. Since the product family is continuously developed further, we are unable to provide a full listing here. The current list of certified products can be found at www.beckhoff.com. FCC Approvals for the United States of America... -
Page 34: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 36 More Information: www.beckhoff.com/CX2900-0192 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
